Nissan Armada 2025-2026 Service and Repair Manual: Body Component Parts

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair — Repair Information / Preparation / Body Component Parts

ROOF AND DOORS

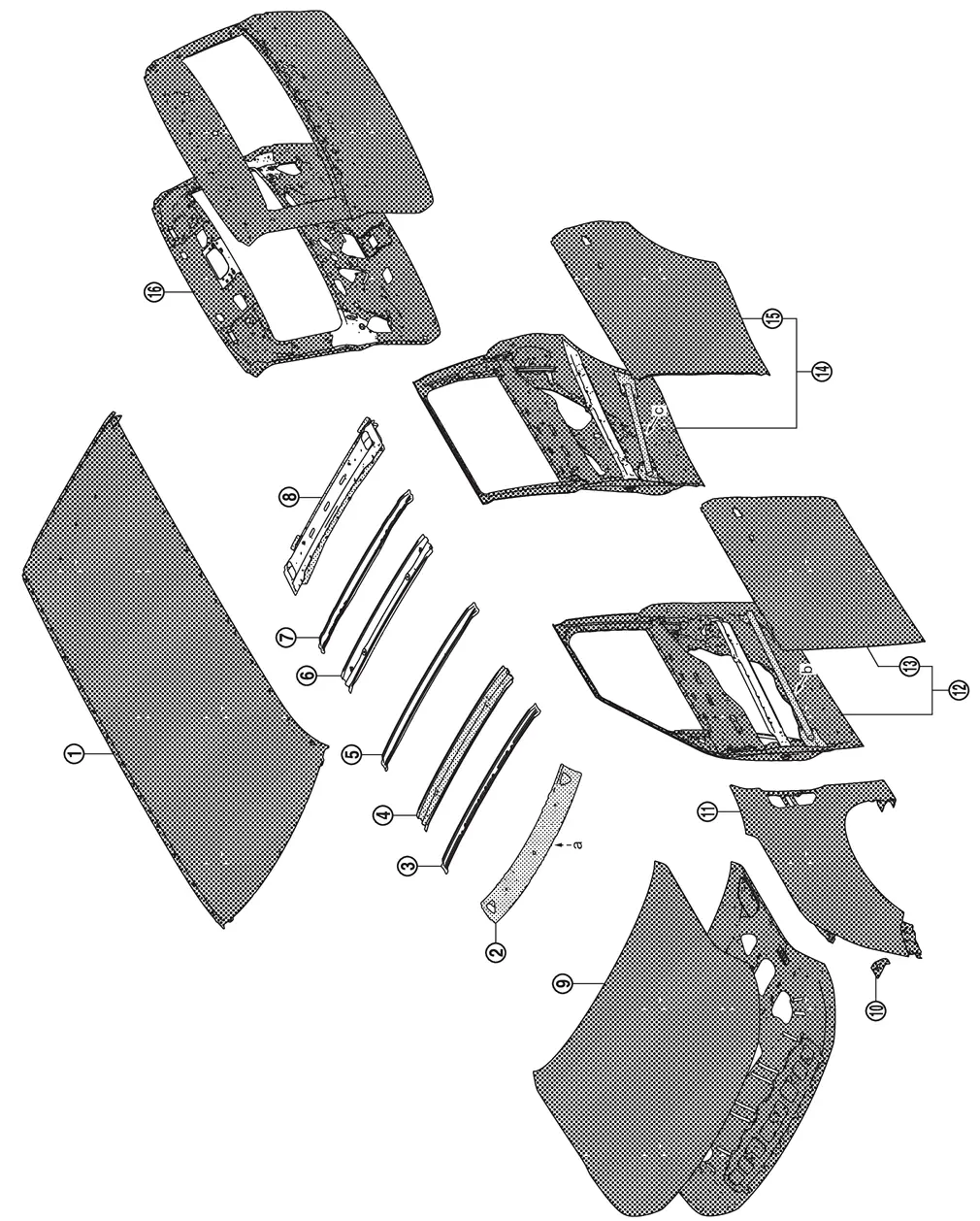

Without sunroof models

Refer to parts catalogue for the replacement parts.

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Roof			Under 440	×
Front roof rail	a.	1180MPa T=1.2 mm (0.047 in)	590	—
Roof bow			Under 440	—
2nd roof bow			440	—
3rd roof bow			Under 440	—
4th roof bow			Under 440	—
5th roof bow			Under 440	—
Rear roof rail			440	—
Hood			Under 440	×
Front fender stay (RH & LH)			Under 440	×
Front fender (RH & LH)			Under 440	×
Front door assembly (RH & LH)	b.	1470MPa T=1.8 mm (0.071 in)	440	×
Outer front door panel (RH & LH)			Under 440	×
Rear door assembly (RH & LH)	c.	1470MPa T=1.4 mm (0.055 in)	440	×
Outer rear door panel (RH & LH)			Under 440	×
Back door assembly			Under 440	×

CAUTION:

NOTE:

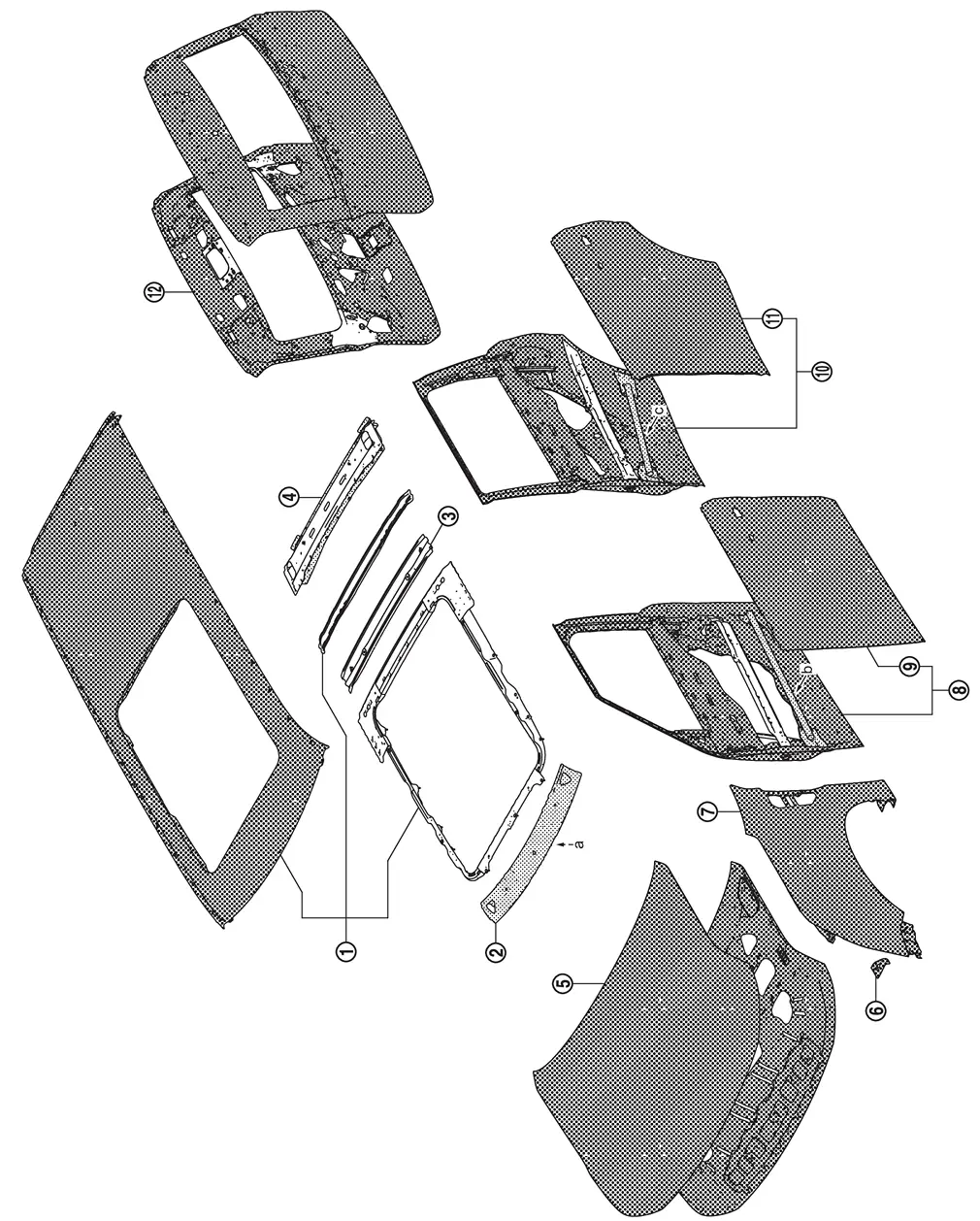

With sunroof models

Refer to parts catalogue for the replacement parts.

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Roof assembly			Under 440	×
Front roof rail	a.	1180MPa T=1.2 mm (0.047 in)	590	—
4th roof bow			Under 440	—
Rear roof rail			440	—
Hood			Under 440	×
Front fender stay (RH & LH)			Under 440	×
Front fender (RH & LH)			Under 440	×
Front door assembly (RH & LH)	b.	1470MPa T=1.8 mm (0.071 in)	440	×
Outer front door panel (RH & LH)			Under 440	×
Rear door assembly (RH & LH)	c.	1470MPa T=1.4 mm (0.055 in)	440	×
Outer rear door panel (RH & LH)			Under 440	×
Back door assembly			Under 440	×

CAUTION:

NOTE:

BODY SIDE

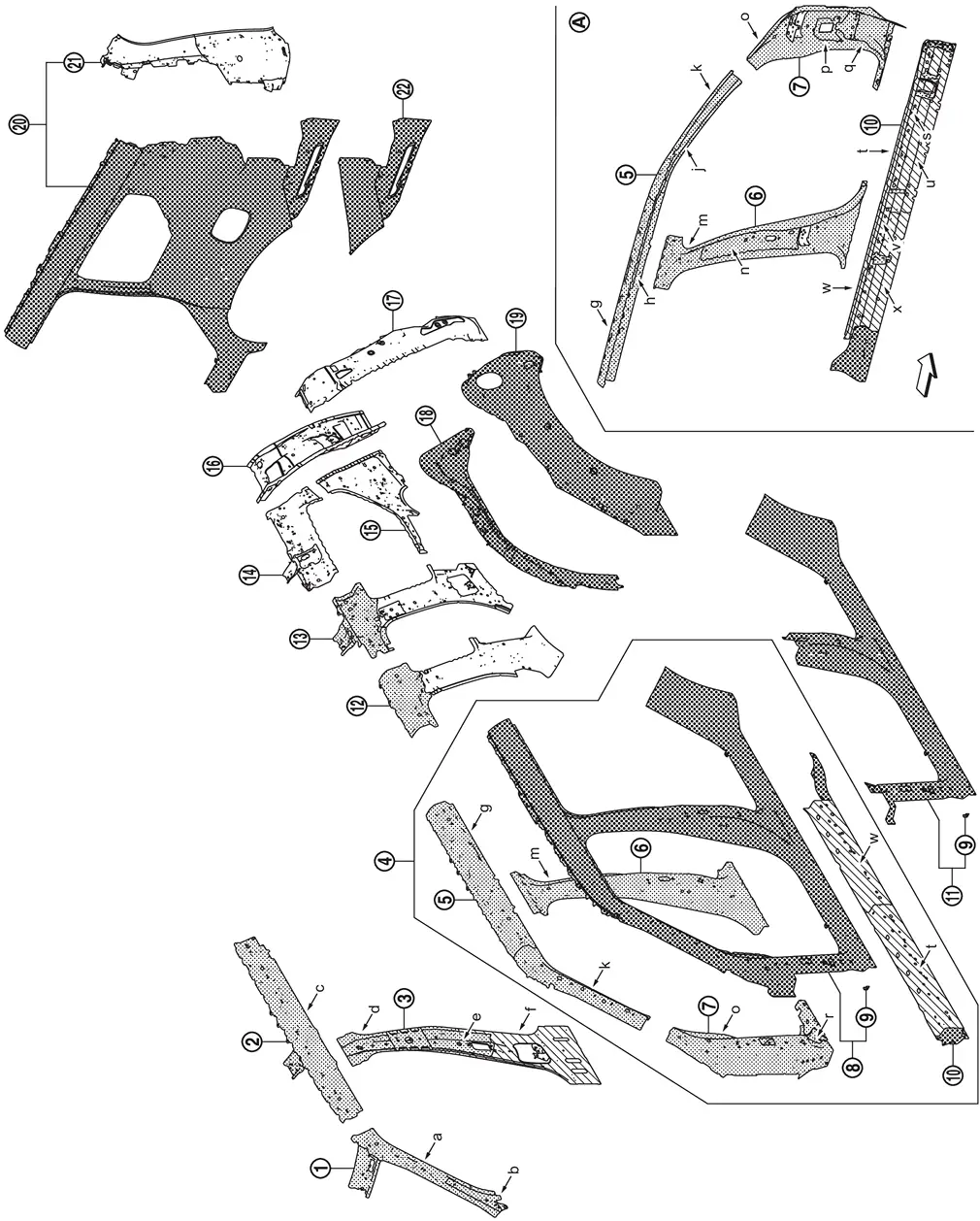

Left side

Refer to parts catalogue for the replacement parts.

Back view

: Vehicle front

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Upper inner front pillar	a.	1180MPa T=1.2 mm (0.047 in)	590	—
Upper inner front pillar	b.	980MPa T=1.8 mm (0.071 in)	590	—
Inner side roof rail	c.	980MPa T=1.0 mm (0.039 in)	590	—
Inner center pillar	d.	1180MPa T=1.2 mm (0.047 in)	440	×
	e.	980MPa T=1.2 mm (0.047 in)
	f.	980MPa T=1.2 mm (0.047 in)
Side body assembly			Refer to No. –
Upper front pillar reinforcement	g.	1180MPa T=1.2 mm (0.047 in)	—	—
	h.	1180MPa T=1.6 mm (0.063 in)
	j.	1300MPa T=2.0 mm (0.079 in)
	k.	1300MPa T=1.4 mm (0.055 in)
Lower center pillar brace	m.	980MPa T=1.2 mm (0.047 in)	780	—
Lower center pillar brace	n.	1180MPa T=1.0 mm (0.039 in)	780	—
Front pillar brace	o.	980MPa T=1.0 mm (0.039 in)	780	—
	p.	980MPa T=2.0 mm (0.079 in)
	q.	980MPa T=1.8 mm (0.071 in)
	r.	980MPa T=1.6 mm (0.063 in)
Outer front side body			Under 440	×
Front fender bracket assembly			Under 440	×
Outer sill reinforcement	s.	1300MPa T=1.8 mm (0.071 in)	590	×
	t.	1180MPa T=1.2 mm (0.047 in)
	u.	1180MPa T=1.8 mm (0.071 in)
	v.	1180MPa T=1.0 mm (0.039 in)
	w.	1180MPa T=1.2 mm (0.047 in)
	x.	1180MPa T=1.6 mm (0.063 in)
Outer sill assembly			Under 440	×
Inner rear pillar reinforcement			590	—
Inner rear pillar			590	—
Inner rear side roof rail			Under 440	—
Lower inner rear pillar			Under 440	—
Inner back pillar			Under 440	—
Back pillar reinforcement			590	—
Inner rear wheelhouse			Under 440	×
Outer rear wheelhouse			Under 440	×
Rear fender			Under 440	×
Back pillar assembly			Under 440	—
Rear fender extension			Under 440	×

CAUTION:

NOTE:

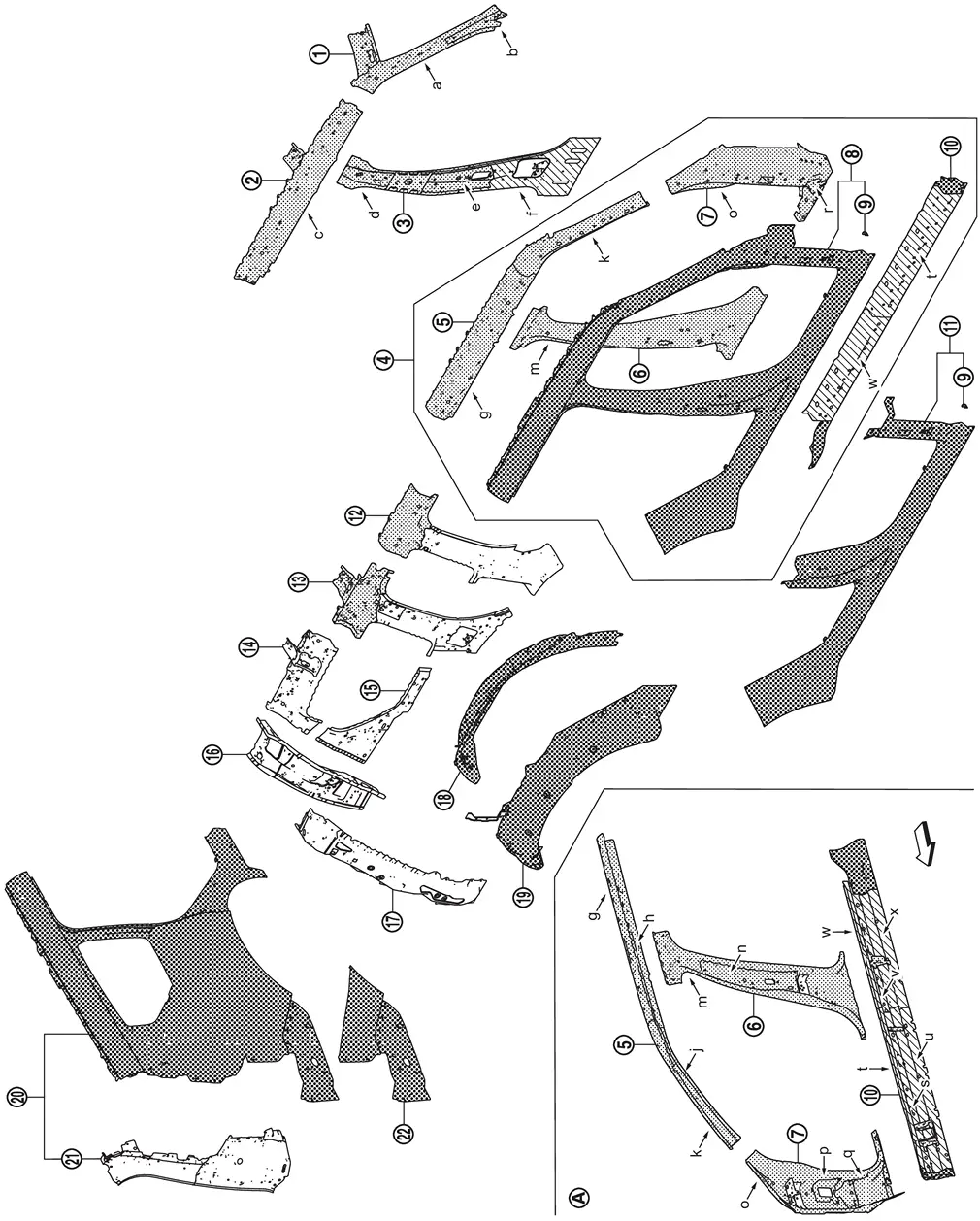

Right side

Refer to parts catalogue for the replacement parts.

Back view

: Vehicle front

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Upper inner front pillar	a.	1180MPa T=1.2 mm (0.047 in)	590	—
Upper inner front pillar	b.	980MPa T=1.8 mm (0.071 in)	590	—
Inner side roof rail	c.	980MPa T=1.0 mm (0.039 in)	590	—
Inner center pillar	d.	1180MPa T=1.2 mm (0.047 in)	440	×
	e.	980MPa T=1.2 mm (0.047 in)
	f.	980MPa T=1.2 mm (0.047 in)
Side body assembly			Refer to No. –
Upper front pillar reinforcement	g.	1180MPa T=1.2 mm (0.047 in)	—	—
	h.	1180MPa T=1.6 mm (0.063 in)
	j.	1300MPa T=2.0 mm (0.079 in)
	k.	1300MPa T=1.4 mm (0.055 in)
Lower center pillar brace	m.	980MPa T=1.2 mm (0.047 in)	780	—
Lower center pillar brace	n.	1180MPa T=1.0 mm (0.039 in)	780	—
Front pillar brace	o.	980MPa T=1.0 mm (0.039 in)	780	—
	p.	980MPa T=2.0 mm (0.079 in)
	q.	980MPa T=1.8 mm (0.071 in)
	r.	980MPa T=1.6 mm (0.063 in)
Outer front side body			Under 440	×
Front fender bracket assembly			Under 440	×
Outer sill reinforcement	s.	1300MPa T=1.8 mm (0.071 in)	590	×
	t.	1180MPa T=1.2 mm (0.047 in)
	u.	1180MPa T=1.8 mm (0.071 in)
	v.	1180MPa T=1.0 mm (0.039 in)
	w.	1180MPa T=1.2 mm (0.047 in)
	x.	1180MPa T=1.6 mm (0.063 in)
Outer sill assembly			Under 440	×
Inner rear pillar reinforcement			590	—
Inner rear pillar			590	—
Inner rear side roof rail			Under 440	—
Lower inner rear pillar			Under 440	—
Inner back pillar			Under 440	—
Back pillar reinforcement			590	—
Inner rear wheelhouse			Under 440	×
Outer rear wheelhouse			Under 440	×
Rear fender			Under 440	×
Back pillar assembly			Under 440	—
Rear fender extension			Under 440	×

CAUTION:

NOTE:
