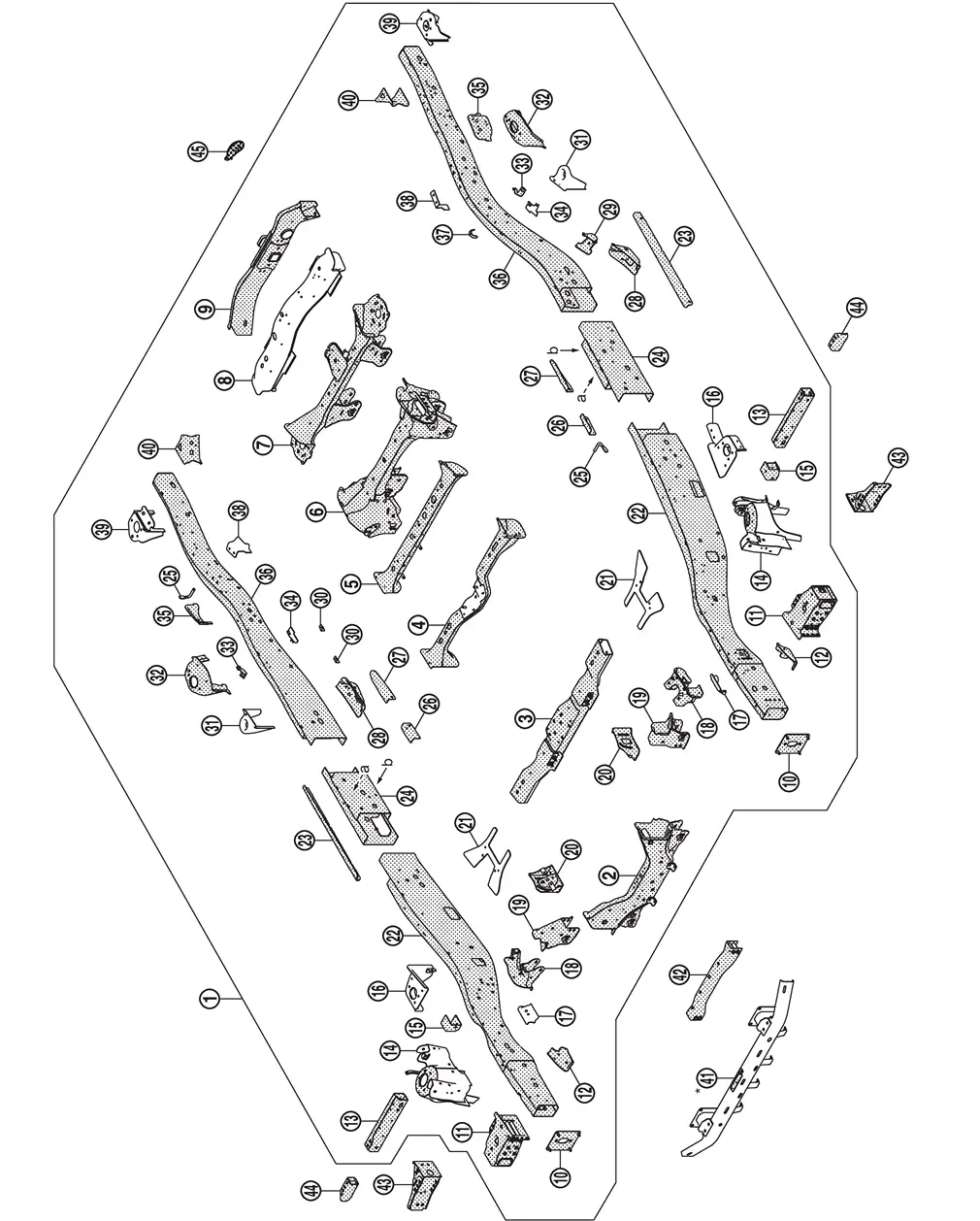

Nissan Armada 2025-2026 Service and Repair Manual: Frame Component Parts
2WD MODELS
Refer to parts catalogue for the replacement parts.
 : Aluminum portion |
: Both sided anti-corrosive precoated steel sections
: High strength steel (HSS) sections| No. | Parts name | Tensile strength (MPa) | Both sided anti-corrosive precoated steel sections | Aluminum portion | ||
|---|---|---|---|---|---|---|
 | Frame assembly | Refer to No.  –  | ||||
| 2nd crossmember assembly | 440 | — | — | ||
 | Rear engine mounting crossmember complete | 440 | — | — | ||
 | Fuel tank crossmember assembly | 440 | — | — | ||
 | 7th crossmember assembly | 440 | — | — | ||
 | Rear suspension crossmember | 590 | — | — | ||
 | Rear suspension crossmember complete | 540 | — | — | ||
 | Spare wheel crossmember assembly | Under 440 | — | — | ||
 | Rear end crossmember assembly | 540 | — | — | ||
 | Front side member closing assembly (Front RH & LH) | 440 | — | — | ||
 | 1st cab mounting bracket assembly (RH & LH) | 780 | — | — | ||
 | Front suspension cross reinforcement (Front RH & LH) | 440 | — | — | ||
 | Front side member closing assembly (Rear inner side RH & LH) | 780 | — | — | ||
 | Front suspension bracket assembly (RH & LH) | 540 | — | — | ||
 | Front protector assembly (Rear RH & LH) | 780 | — | — | ||
 | 2nd cab mounting bracket assembly (RH & LH) | Under 440 | — | — | ||
 | Front suspension cross reinforcement (Rear RH & LH) | Under 440 | — | — | ||
 | Engine mounting bracket assembly (RH & LH) | LH: 780 RH: 440 | — | — | ||
 | Lower front link mounting bracket assembly (RH & LH) | 440 | — | — | ||
 | Stabilizer mounting bracket assembly (RH & LH) | 440 | — | — | ||
 | Rear engine mounting gusset (RH & LH) | Under 440 | — | — | ||
 | Front side member assembly (RH & LH) | 780 | — | — | ||
 | Center side member reinforcement (Outer RH & LH) | 980MPa T=2.3 mm (0.091 in) | — | — | — | |
 | Center side member assembly (RH & LH) | a. | 980MPa T=2.3 mm (0.091 in) | 780 | — | — |
| b. | 980MPa T=2.3 mm (0.091 in) | |||||
 | Exhaust bracket (RH & LH) | Under 440 | — | — | ||
 | Center side member reinforcement (Inner front side RH & LH) | 980MPa T=2.3 mm (0.091 in) | — | — | — | |
 | Center side member reinforcement (Inner rear side RH & LH) | 980MPa T=2.3 mm (0.091 in) | — | — | — | |
 | Fuel tank protector assembly (RH & LH) | 540 | — | — | ||
 | Fuel cooler bracket assembly | 440 | — | — | ||
 | Heat insulator bracket | Under 440 | — | — | ||
 | 4th cab mounting bracket (RH &LH) | Under 440 | — | — | ||
 | Rear shock absorber bracket assembly (RH & LH) | 540 | — | — | ||
 | Rear brake hose bracket (RH & LH) | Under 440 | — | — | ||
 | Rear bound bumper reinforcement (RH & LH) | Under 440 | — | — | ||
 | Rear spring bracket reinforcement (RH & LH) | 540 | — | — | ||
 | Rear side member assembly (RH & LH) | 780 | — | — | ||
 | Front under cover bracket assembly | Under 440 | — | — | ||
 | Rear suspension cross reinforcement (RH & LH) | Under 440 | — | — | ||
 | 5th cab mounting bracket (RH &LH) | Under 440 | — | — | ||
| Rear end gusset (RH & LH) | 440 | — | — | ||
 | Front bumper crossmember assembly | 590 | — | × | ||
 | Front suspension rear crossmember assembly | 440 | — | — | ||
 | Front protector assembly (Front RH & LH) | 780 | — | — | ||
 | Front side member closing assembly (Rear outer side RH & LH) | 540 | — | — | ||
 | Connector bracket | Under 440 | × | — | ||
CAUTION:
NOTE:

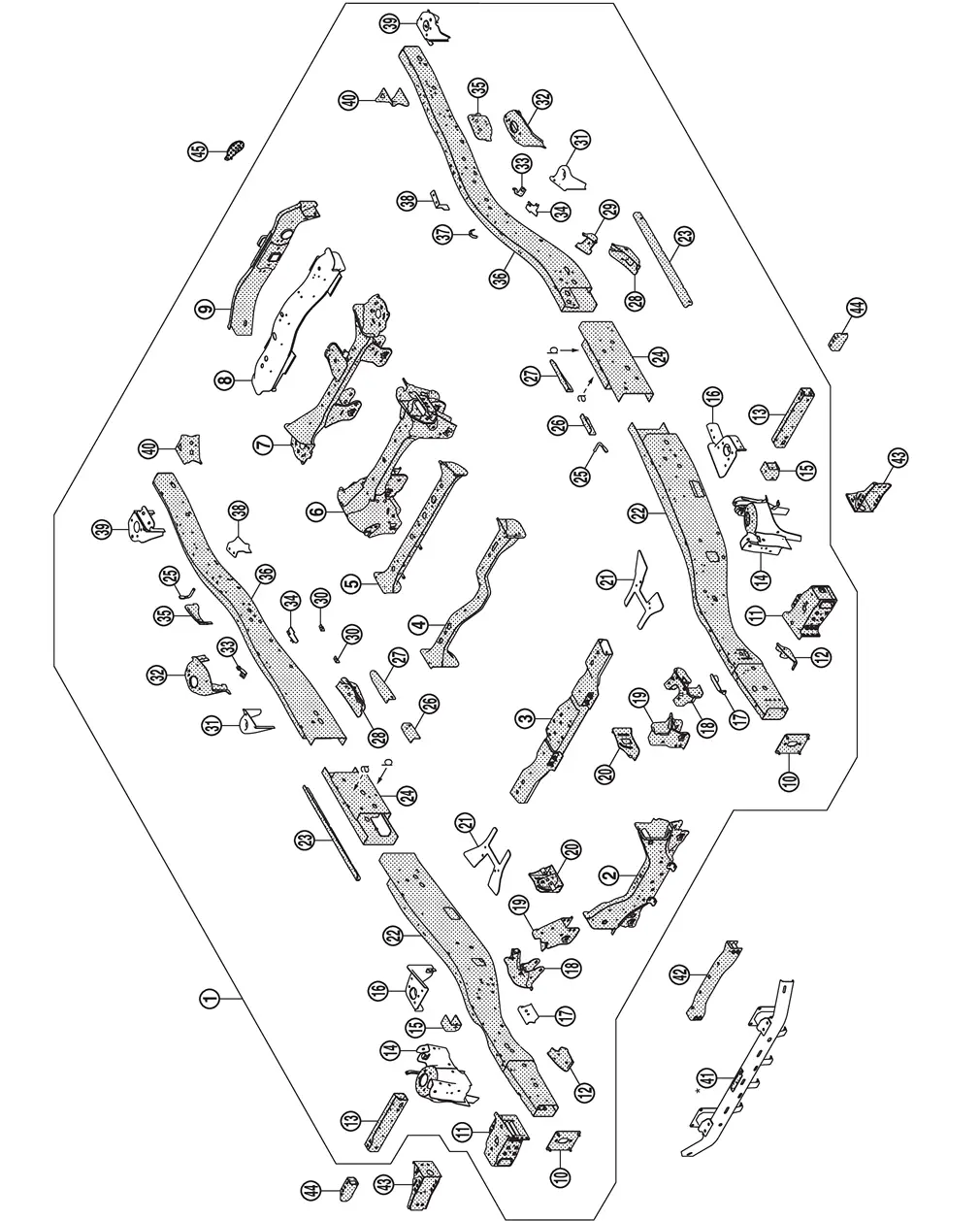

4WD MODELS
Refer to parts catalogue for the replacement parts.
: Aluminum portion |
| No. | Parts name | Tensile strength (MPa) | Both sided anti-corrosive precoated steel sections | Aluminum portion | ||
|---|---|---|---|---|---|---|
| Frame assembly | Refer to No. – | ||||
| 2nd crossmember assembly | 440 | — | — | ||
| Rear engine mounting crossmember complete | 440 | — | — | ||
| Fuel tank crossmember assembly | 440 | — | — | ||
| 7th crossmember assembly | 440 | — | — | ||
| Rear suspension crossmember | 590 | — | — | ||
| Rear suspension crossmember complete | 540 | — | — | ||
| Spare wheel crossmember assembly | Under 440 | — | — | ||
| Rear end crossmember assembly | 540 | — | — | ||
| Front side member closing assembly (Front RH & LH) | 440 | — | — | ||
| 1st cab mounting bracket assembly (RH & LH) | 780 | — | — | ||
| Front suspension cross reinforcement (Front RH & LH) | 440 | — | — | ||
| Front side member closing assembly (Rear inner side RH & LH) | 780 | — | — | ||
| Front suspension bracket assembly (RH & LH) | 540 | — | — | ||
| Front protector assembly (Rear RH & LH) | 780 | — | — | ||
| 2nd cab mounting bracket assembly (RH & LH) | Under 440 | — | — | ||
| Front suspension cross reinforcement (Rear RH & LH) | Under 440 | — | — | ||
| Engine mounting bracket assembly (RH & LH) | LH: 780 RH: 440 | — | — | ||
| Lower front link mounting bracket assembly (RH & LH) | 440 | — | — | ||
| Stabilizer mounting bracket assembly (RH & LH) | 440 | — | — | ||
| Rear engine mounting gusset (RH & LH) | Under 440 | — | — | ||
| Front side member assembly (RH & LH) | 780 | — | — | ||
| Center side member reinforcement (Outer RH & LH) | 980MPa T=2.3 mm (0.091 in) | — | — | — | |
| Center side member assembly (RH & LH) | a. | 980MPa T=2.3 mm (0.091 in) | 780 | — | — |
| b. | 980MPa T=2.3 mm (0.091 in) | |||||
| Exhaust bracket (RH & LH) | Under 440 | — | — | ||
| Center side member reinforcement (Inner front side RH & LH) | 980MPa T=2.3 mm (0.091 in) | — | — | — | |
| Center side member reinforcement (Inner rear side RH & LH) | 980MPa T=2.3 mm (0.091 in) | — | — | — | |
| Fuel tank protector assembly (RH & LH) | 540 | — | — | ||
| Fuel cooler bracket assembly | 440 | — | — | ||
| Heat insulator bracket | Under 440 | — | — | ||
| 4th cab mounting bracket (RH &LH) | Under 440 | — | — | ||
| Rear shock absorber bracket assembly (RH & LH) | 540 | — | — | ||
| Rear brake hose bracket (RH & LH) | Under 440 | — | — | ||
| Rear bound bumper reinforcement (RH & LH) | Under 440 | — | — | ||
| Rear spring bracket reinforcement (RH & LH) | 540 | — | — | ||
| Rear side member assembly (RH & LH) | 780 | — | — | ||
| Front under cover bracket assembly | Under 440 | — | — | ||
| Rear suspension cross reinforcement (RH & LH) | Under 440 | — | — | ||
| 5th cab mounting bracket (RH &LH) | Under 440 | — | — | ||
| Rear end gusset (RH & LH) | 440 | — | — | ||
| Front bumper crossmember assembly | 590 | — | × | ||
| Front suspension rear crossmember assembly | 440 | — | — | ||
| Front protector assembly (Front RH & LH) | 780 | — | — | ||
| Front side member closing assembly (Rear outer side RH & LH) | 540 | — | — | ||
| Connector bracket | Under 440 | × | — | ||
CAUTION:
NOTE:
