Nissan Armada 2025-2026 Service and Repair Manual: Comparison of Pulling Methods

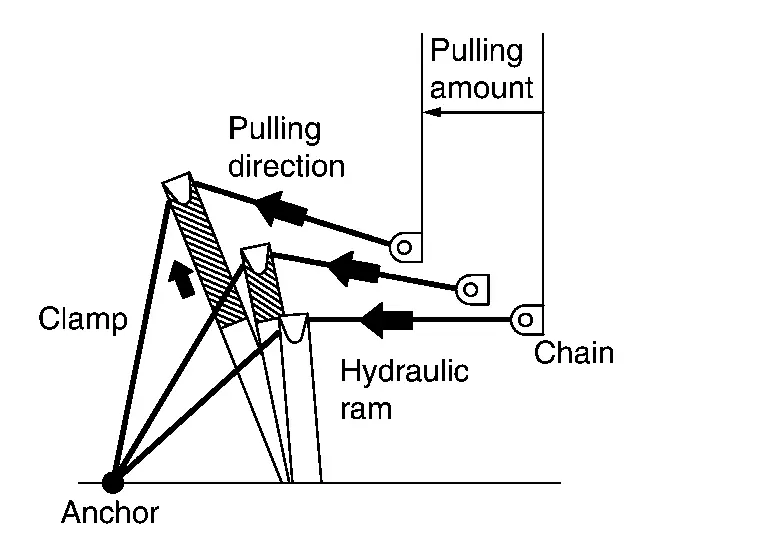

(1) HYDRAULIC RAM TYPE
In this method, the pressing force of a hydraulic ram is converted to a pulling force by a chain.
Pulling points on the body may be added easily, and there is more freedom to select the pulling direction.
The pulling direction changes during pulling.
Difficult to simultaneously pull several points on a vertical line.

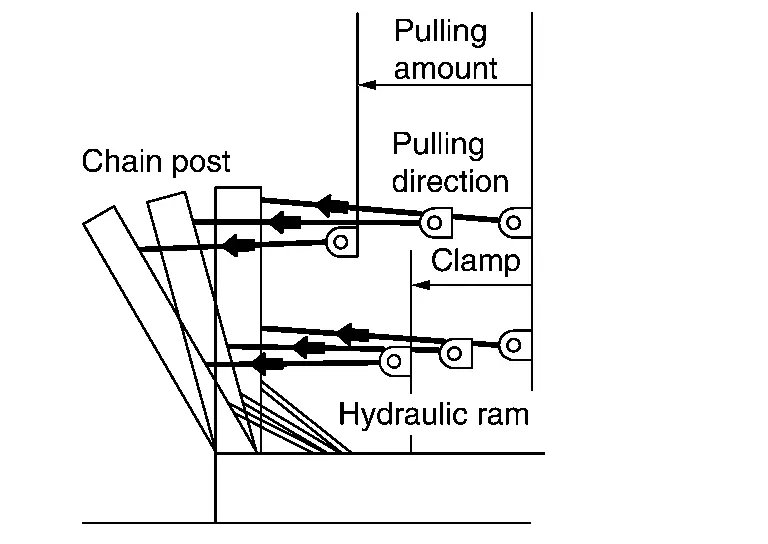

(2) TOWER TYPE I
In this type, force is applied by the hydraulic ram pushing the post.
A strong force is obtained because a large ram is used, creating much leverage.
The chain can be hooked to the post in many ways.
Leverage can be increased or decreased by changing the position of the hook.
The pulling direction is not restricted by the shape of the bench or a floor anchor.
The pulling direction changes during pulling.
Difficult to increase the number of pulling points on the body because the pulling tool itself is large.
(3) TOWER TYPE II
The chain is wound up through the tower by an electric or hydraulic motor.
The direction of force does not change during pulling.
The chain is easily set on the post because the pulling direction is constant.
Provides great flexibility in pulling direction.
Pulling points on the body are restricted by the number of posts.
Pulling force is relatively strong.
Clamps
Generally speaking, when a body has to be straightened, the pulling device and the body must be attached to each other and the body itself must remain stationary. For this purpose, various clamps are ...
