Nissan Armada 2025-2026 Service and Repair Manual: Roof Rail

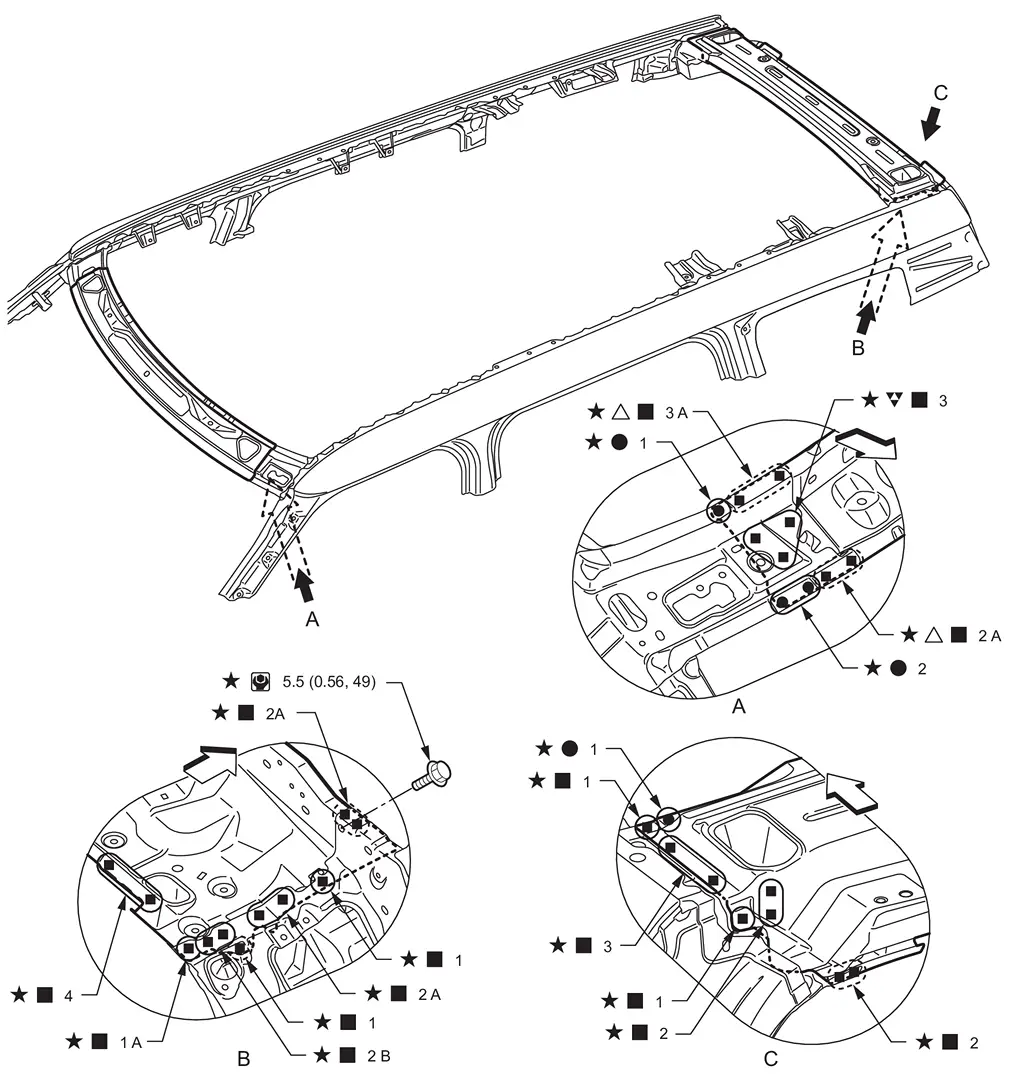

Work after roof is removed.
 : Vehicle front | |||||
 : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Weld the parts onto the back of the component part. | |||||
 : Welding method, the number of welding points, and the tightening torque apply to both sides of the vehicle. | |||||
 : N•m (kg-m, in-lb) | |||||
| Replacement part | |||||
| • | Front roof rail | • | Rear roof rail | ||
