Nissan Armada 2025-2026 Service and Repair Manual: CylinderBlock
CYLINDER BLOCK
Unit: mm (in)
| ||||
| Surface flatness | Standard | Less than 0.03 (0.0012) | ||
| Limit | 0.1 (0.004) | |||
| Main bearing housing inner diameter | Standard | 69.993 - 70.017 (2.7556 - 2.7566) | ||

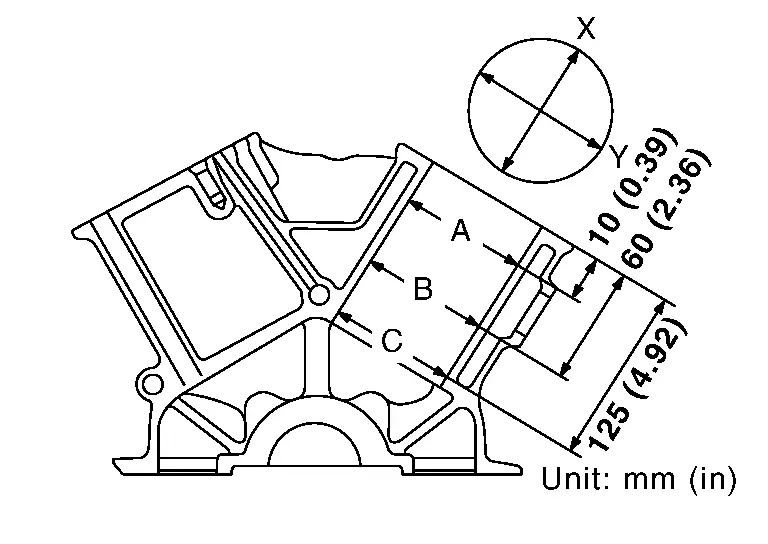

| Cylinder bore | Inner diameter | Standard | 86.000 - 86.015 (3.3858 - 3.3864) | |
| Wear limit | 0.2 (0.008) | |||
| Out-of-round | Limit | 0.015 (0.0006) | ||
| Taper | 0.010 (0.0004) | |||
| Main bearing housing inner diameter grade (Without bearing) | Grade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade No. M Grade No. N Grade No. P Grade No. R Grade No. S Grade No. T Grade No. U Grade No. V Grade No. W Grade No. X Grade No. Y Grade No. 4 | 79.993 - 79.994 (3.1493 - 3.1494) 79.994 - 79.995 (3.1494 - 3.1494) 79.995 - 79.996 (3.1494 - 3.1494) 79.996 - 79.997 (3.1494 - 3.1495) 79.997 - 79.998 (3.1495 - 3.1495) 79.998 - 79.999 (3.1495 - 3.1496) 79.999 - 80.000 (3.1496 - 3.1496) 80.000 - 80.001 (3.1496 - 3.1496) 80.001 - 80.002 (3.1496 - 3.1497) 80.002 - 80.003 (3.1497 - 3.1497) 80.003 - 80.004 (3.1497 - 3.1498) 80.004 - 80.005 (3.1498 - 3.1498) 80.005 - 80.006 (3.1498 - 3.1498) 80.006 - 80.007 (3.1498 - 3.1499) 80.007 - 80.008 (3.1499 - 3.1499) 80.008 - 80.009 (3.1499 - 3.1500) 80.009 - 80.010 (3.1500 - 3.1500) 80.010 - 80.011 (3.1500 - 3.1500) 80.011 - 80.012 (3.1500 - 3.1501) 80.012 - 80.013 (3.1501 - 3.1501) 80.013 - 80.014 (3.1501 - 3.1502) 80.014 - 80.015 (3.1502 - 3.1502) 80.015 - 80.016 (3.1502 - 3.1502) | ||
| Difference in inner diameter between cylinders | Standard | Less than 0.03 (0.0012) | ||
AVAILABLE PISTON
Unit: mm (in)
| |||
|---|---|---|---|
| Items | Standard | ||

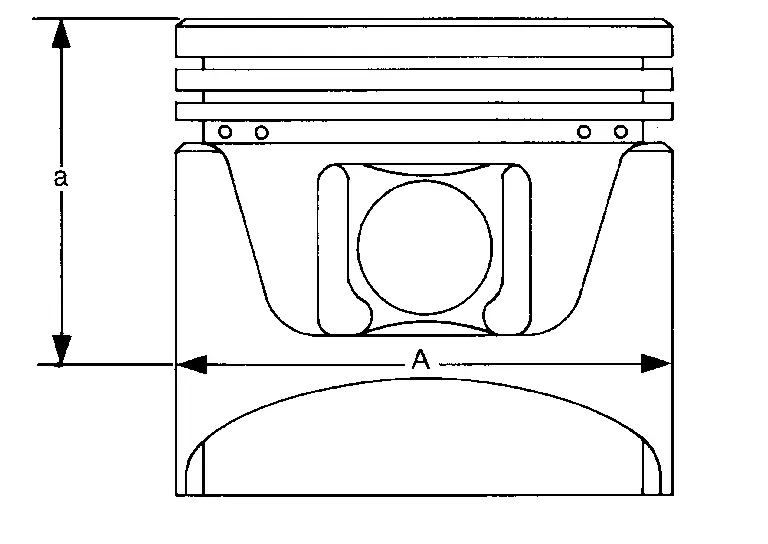

| Piston skirt diameter “A” | 85.965 - 85.980 (3.3844 - 3.3850) | ||
| Items | Standard | Limit |
|---|---|---|
| “a” dimension | 39.00 (1.5354) | — |
| Piston pin hole diameter | 22.995 - 22.999 (0.9053 - 0.9055) | — |
| Piston to cylinder bore clearance | 0.020 - 0.050 (0.0008 - 0.0020) | 0.09 (0.0035) |
PISTON RING
Unit: mm (in)
| Items | Standard | Limit | |
|---|---|---|---|
| Side clearance | Top | 0.040 - 0.080 (0.0016 - 0.0031) | 0.11 (0.0043) |
| 2nd | 0.030 - 0.070 (0.0012 - 0.0028) | 0.10 (0.0039) | |
| Oil ring | 0.055 - 0.155 (0.0022 - 0.0061) | — | |
| End gap | Top | 0.23 - 0.28 (0.0091 - 0.0110) | 0.45 (0.0177) |
| 2nd | 0.38 - 0.48 (0.0150 - 0.0189) | 0.62 (0.0244) | |
| Oil (rail ring) | 0.17 - 0.42 (0.0067 - 0.0165) | 0.72 (0.0283) | |
PISTON PIN
Unit: mm (in)
| Items | Standard | Limit | |
|---|---|---|---|
| Piston pin outer diameter | 22.989 - 22.993 (0.9051 - 0.9052) | — | |
| Piston to piston pin oil clearance | 0.002 - 0.010 (0.0001 - 0.0004) | — | |
| Connecting rod bushing oil clearance | 0.007 - 0.017 (0.0003 - 0.0007) | 0.030 (0.0012) | |
CONNECTING ROD
Unit: mm (in)
| Items | Standard | Limit | |
|---|---|---|---|
| Center distance | 164.23 - 164.37 (6.47 - 6.47) | — | |
| Bend [per 100 (3.94)] | — | 0.15 (0.0059) | |
| Torsion [per 100 (3.94)] | — | 0.30 (0.0118) | |
| Connecting rod bushing inner diameter* | 23.000 - 23.006 (0.9055 - 0.9057) | — | |
| Connecting rod big end diameter (Without bearing) | Grade No. A | 59.000 - 59.001 (2.3228 - 2.3229) | — |
| Grade No. B | 59.001 - 59.002 (2.3229 - 2.3229) | — | |
| Grade No. C | 59.002 - 59.003 (2.3229 - 2.3229) | — | |
| Grade No. D | 59.003 - 59.004 (2.3229 - 2.3230) | — | |
| Grade No. E | 59.004 - 59.005 (2.3230 - 2.3230) | — | |
| Grade No. F | 59.005 - 59.006 (2.3230 - 2.3231) | — | |
| Grade No. G | 59.006 - 59.007 (2.3231 - 2.3231) | — | |
| Grade No. H | 59.007 - 59.008 (2.3231 - 2.3231) | — | |
| Grade No. J | 59.008 - 59.009 (2.3231 - 2.3232) | — | |
| Grade No. K | 59.009 - 59.010 (2.3232 - 2.3232) | — | |
| Grade No. L | 59.010 - 59.011 (2.3232 - 2.3233) | — | |
| Grade No. M | 59.011 - 59.012 (2.3233 - 2.3233) | — | |
| Grade No. N | 59.012 - 59.013 (2.3233 - 2.3233) | — | |
| Side clearance | 0.20 - 0.35 (0.0079 - 0.0138) | 0.35 (0.0138) | |
*: After installing in connecting rod
CRANKSHAFT
Unit: mm (in)
|
| ||

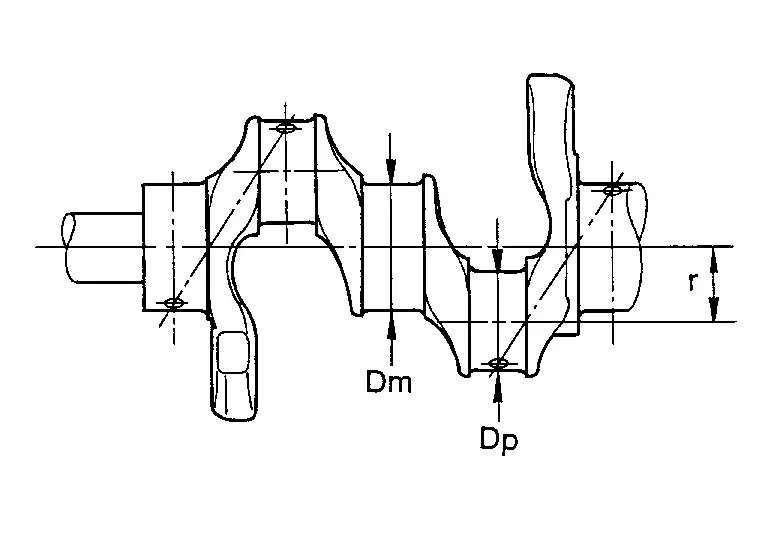

| Main journal diameter. “Dm” grade | Standard | Grade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade No. M Grade No. N Grade No. P Grade No. R Grade No. S Grade No. T Grade No. U Grade No. V Grade No. W Grade No. X Grade No. Y Grade No. 4 Grade No. 7 | 74.975 - 74.974 (2.9518 - 2.9517) 74.974 - 74.973 (2.9517 - 2.9517) 74.973 - 74.972 (2.9517 - 2.9516) 74.972 - 74.971 (2.9516 - 2.9516) 74.971 - 74.970 (2.9516 - 2.9516) 74.970 - 74.969 (2.9516 - 2.9515) 74.969 - 74.968 (2.9515 - 2.9515) 74.968 - 74.967 (2.9515 - 2.9515) 74.967 - 74.966 (2.9515 - 2.9514) 74.966 - 74.965 (2.9514 - 2.9514) 74.965 - 74.964 (2.9514 - 2.9513) 74.964 - 74.963 (2.9513 - 2.9513) 74.963 - 74.962 (2.9513 - 2.9513) 74.962 - 74.961 (2.9513 - 2.9512) 74.961 - 74.960 (2.9512 - 2.9512) 74.960 - 74.959 (2.9512 - 2.9511) 74.959 - 74.958 (2.9511 - 2.9511) 74.958 - 74.957 (2.9511 - 2.9511) 74.957 - 74.956 (2.9511 - 2.9510) 74.956 - 74.955 (2.9510 - 2.9510) 74.955 - 74.954 (2.9510 - 2.9509) 74.954 - 74.953 (2.9509 - 2.9509) 74.953 - 74.952 (2.9509 - 2.9509) 74.952 - 74.951 (2.9509 - 2.9508) |
| Pin journal diameter. “Dp” grade | Standard | Grade No. A | 55.974 - 55.973 (2.2037 - 2.2037) |
| Grade No. B | 55.973 - 55.972 (2.2037 - 2.2036) | ||
| Grade No. C | 55.972 - 55.971 (2.2036 - 2.2036) | ||
| Grade No. D | 55.971 - 55.970 (2.2036 - 2.2035) | ||
| Grade No. E | 55.970 - 55.969 (2.2035 - 2.2035) | ||
| Grade No. F | 55.969 - 55.968 (2.2035 - 2.2035) | ||
| Grade No. G | 55.968 - 55.967 (2.2035 - 2.2034) | ||
| Grade No. H | 55.967 - 55.966 (2.2034 - 2.2034) | ||
| Grade No. J | 55.966 - 55.965 (2.2034 - 2.2033) | ||
| Grade No. K | 55.965 - 55.964 (2.2033 - 2.2033) | ||
| Grade No. L | 55.964 - 55.963 (2.2033 - 2.2033) | ||
| Grade No. M | 55.963 - 55.962 (2.2033 - 2.2032) | ||
| Grade No. N | 55.962 - 55.961 (2.2032 - 2.2032) | ||
| Grade No. P | 55.961 - 55.960 (2.2032 - 2.2031) | ||
| Grade No. R | 55.960 - 55.959 (2.2031 - 2.2031) | ||
| Grade No. S | 55.959 - 55.958 (2.2031 - 2.2031) | ||
| Grade No. T | 55.958 - 55.957 (2.2031 - 2.2030) | ||
| Grade No. U | 55.957 - 55.956 (2.2030 - 2.2030) | ||
| Center distance “r” | 50.06 - 50.14 (1.9709 - 1.9740) | ||

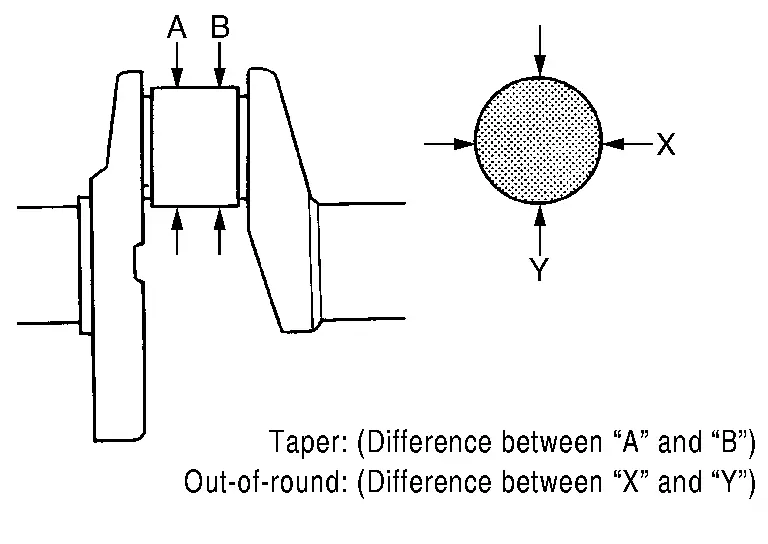

| Taper (Difference between “A” and “B”) | Limit | 0.001 (0.0000393) | |
| Out-of-round (Difference between “X” and “Y”) | 0.0025 (0.0001) | ||
| Crankshaft runout [TIR*] | Standard | Less than 0.05 (0.0020) | |
| Limit | 0.05 (0.0020) | ||
| Crankshaft end play | Standard | 0.20 - 0.35 (0.0079 - 0.0138) | |
| Limit | 0.35 (0.0138) | ||
*: Total indicator reading
CylinderHead
CYLINDER HEAD
Unit: mm (in)
Items Standard Limit Head surface distortion Less than 0.03 (0.0012) 0.1 (0.004) Normal cylinder head height “H” 126.4 (4.98) —
VALVE DIMENSIONS
Unit: mm ( ...
Connecting Rod Bearing
CONNECTING ROD BEARING
Unit: mm (in)
Grade number Thickness Identification color (mark) 0 UPR 1.497 - 1.500 (0.0589 - 0.0591) Black LWR Black - Black 1 UPR 1.500 - 1.503 (0.0591 - 0.0592) ...
