Nissan Armada 2025-2026 Service and Repair Manual: Disassembly and Assembly
DISASSEMBLY

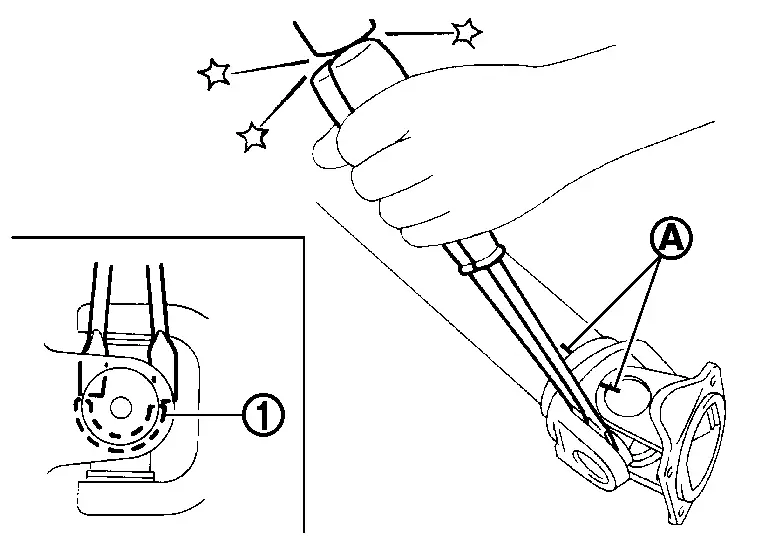

Put a matching mark
between propeller shaft and flange yoke and remove snap rings
.
CAUTION:
For matching mark, use paint. Never damage the surface.
Lightly tap bottom of yoke using a copper hammer and remove journal bearing.
CAUTION:
Never damage the yoke.
ASSEMBLY
Install journal bearing to journal.
CAUTION:
Never reuse journal or journal bearing.
Always replace journal, journal bearing, and snap rings as a set.
Apply multi-purpose grease to journal bearing.
Install bearing
using a vise.
CAUTION:
Never damage bearing or flange yoke.
Install journal to propeller shaft so that grease nipple
on journal portion is in the same direction.
CAUTION:
Never reuse journal.

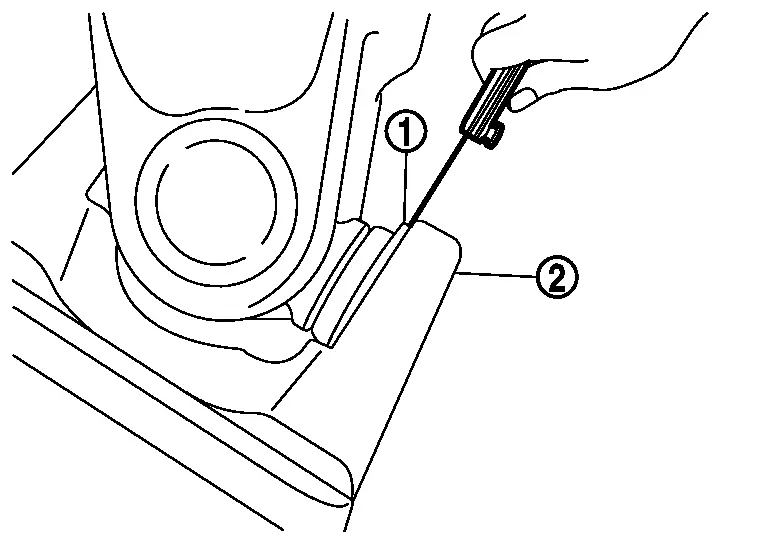

Measure journal axial play. If necessary, select the appropriate snap ring.While pushing to 98 N·m (10 kg-m, 72 ft-lb), check the clearance between snap ring and flange yoke
.
| Journal axial play | : Refer to Journal. |
CAUTION:
Never reuse snap ring.
Select snap rings with a difference in thickness at both sides within 0.06 mm (0.0024 in). For selecting snap ring, refer to the latest parts information.

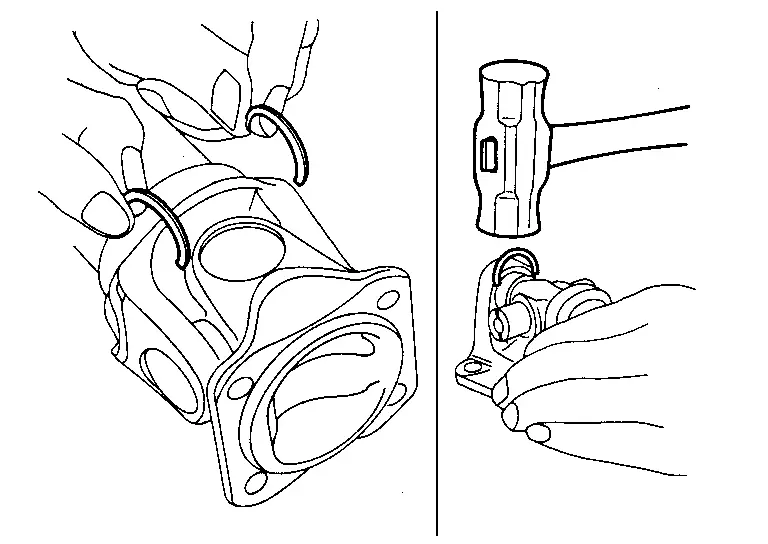

Install selected snap ring as shown in the figure.
Check that the journal moves smoothly and is below the joint flex torque specification.
| Joint flex torque | : Refer to Journal. |
NOTE:
The joint flex torque may not be satisfied soon after the assembly.
Check the journal axial play. Refer to Inspection.
