Nissan Armada 2025-2026 Service and Repair Manual: Disassembly and Assembly
DISASSEMBLY
NOTE:
Never remove the torque member and brake pad when disassembling and assembling the cylinder body.
Remove the sliding pin bolt, and remove the cylinder body from the torque member. Refer to Removal and Installation.
CAUTION:
Fix the brake pad at suitable tape so that the brake pad will not drop.
Remove sliding pins and sliding pin boots from torque member.
Remove bushing
from sliding pin
.
Remove bleeder valve and cap.
Perform inspection after disassembly. Refer to Inspection.
ASSEMBLY
Install bleeder valve and cap.
Apply rubber grease to mating faces
between sliding pin and bushing , and install bushing to sliding pin.

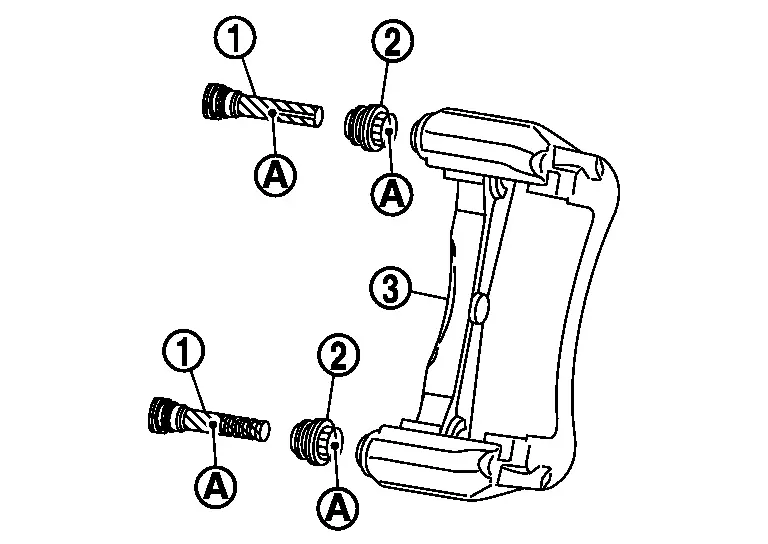

Apply rubber grease to mating faces between sliding pins and sliding pin boots , and install sliding pins and sliding pin boots to torque member
.
Install the cylinder body to tighten cylinder body mounting bolts to the specified torque. Refer to Exploded View.
