Nissan Armada 2025-2026 Service and Repair Manual: Draining
WARNING:
The ignition switch OFF.

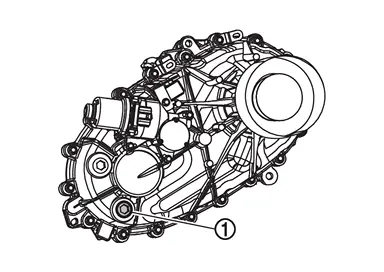

Remove the drain plug
.
Drain transfer fluid.
Install drain plug to transfer and tighten to the specified torque.
CAUTION:
Never reuse drain plug.
| Specified torque | : 37.5 N·m (3.8 kg-m, 28 ft-lb) |
Inspection
WARNING:
FLUID LEAKAGE
Check transfer surrounding area (oil seal, drain plug, and filler plug etc.) for fluid leakage.
FLUID LEVEL
Remove filler plug . Then check that fluid is filled up from mounting ...
Refilling
WARNING:
The ignition switch OFF.
Remove filler plug . Fill up with new transfer fluid up to mounting hole for the filler plug.
Recommended fluid and capacity: Refer to Fluids and Lubricants.
C ...
