Nissan Armada 2025-2026 Service and Repair Manual: Refilling
WARNING:
The ignition switch OFF.

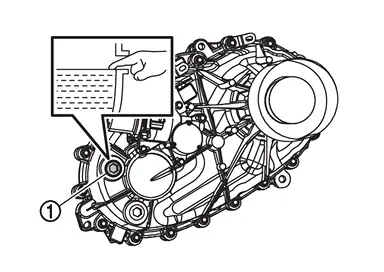

Remove filler plug
. Fill up with new transfer fluid up to mounting hole for the filler plug.
| Recommended fluid and capacity: | Refer to Fluids and Lubricants. |
CAUTION:
Carefully fill the fluid. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Install filler plug on transfer and tighten to the specified torque.
CAUTION:
Never reuse filler plug.
| Specified torque | : 37.5 N·m (3.8 kg-m, 28 ft-lb) |
Draining
WARNING:
The ignition switch OFF.
Remove the drain plug .
Drain transfer fluid.
Install drain plug to transfer and tighten to the specified torque.
CAUTION:
Never reuse drain plug.
Specified tor ...
