Nissan Armada 2025-2026 Service and Repair Manual: SONAR CONTROL UNIT : Removal & Installation
REMOVAL
CAUTION:
Before replacing sonar control unit, perform “ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT". For details, Refer to Work Procedure
Remove the luggage side lower finisher LH. Refer to Removal and Installation

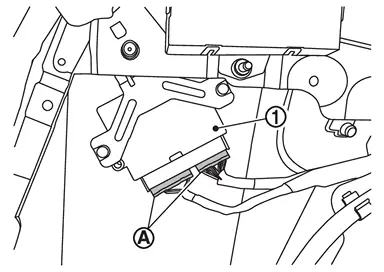

Disconnect the harness connectors
from sonar control unit
.

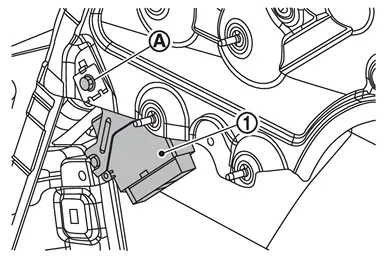

Remove the sonar control unit mounting bolt , and then remove the sonar control unit .
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When replacing the sonar control unit, perform "ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT". Refer to Work Procedure.
