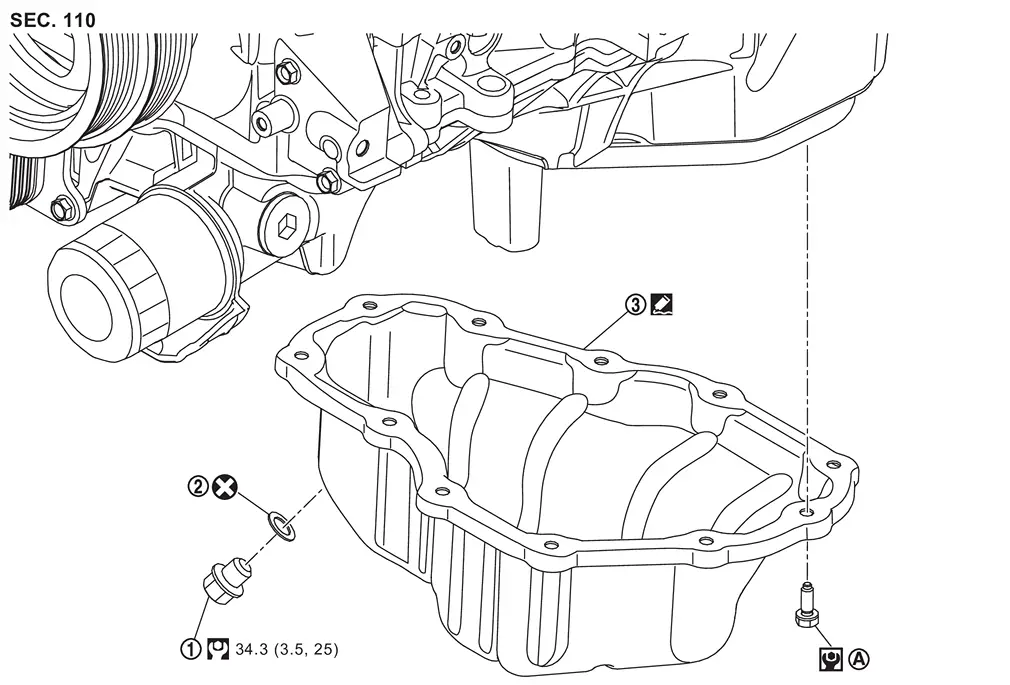

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Drain plug |  | Drain plug washer |  | Oil pan (lower) |
 | Comply with the installation procedure when tightening. Refer to Removal and Installation. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Sealing point | ||||
Oil Pan (lower)
...
Removal and Installation
WARNING:
REMOVAL
CAUTION:
Never drain engine oil when the engine is hot to avoid the danger of being scalded.
Remove front under cover using a power tool (commercial service tool). Refer to Removal an ...
