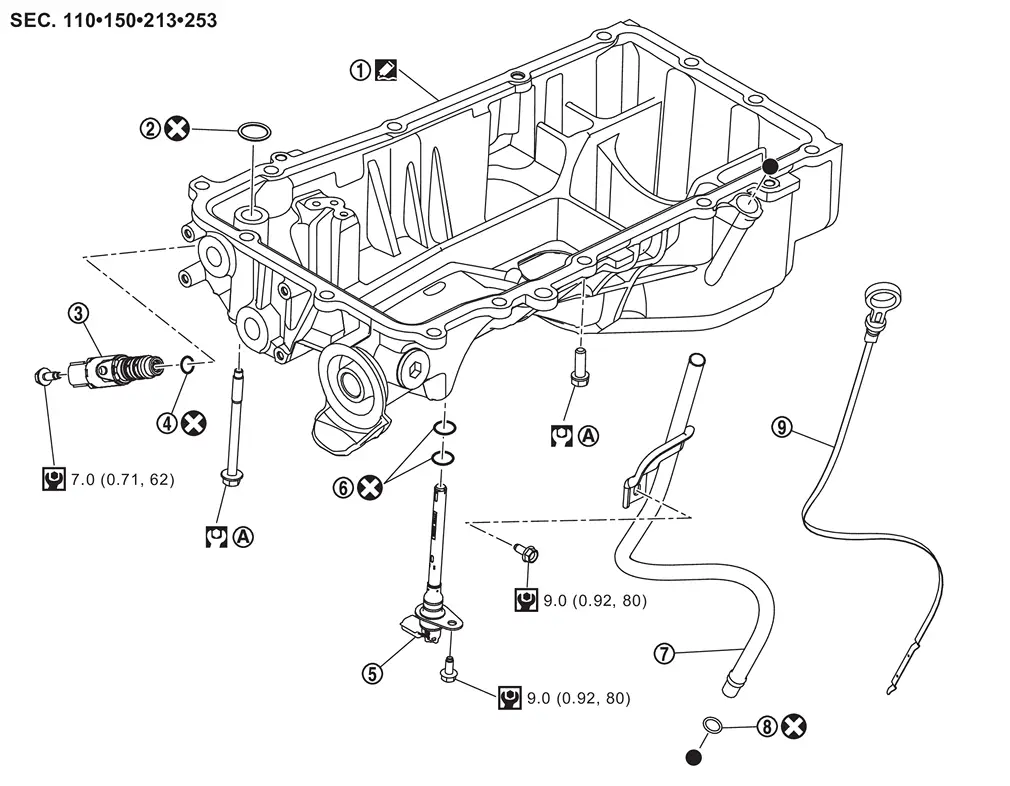

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Oil pan (upper) |  | O-ring 1 |  | Engine oil pressure control solenoid valve |
 | O-ring 2 |  | Engine oil level sensor |  | O-ring 3 |
 | Oil level gauge guide |  | O-ring 4 |  | Oil level gauge |
 | Comply with the installation procedure when tightening. Refer to Disassembly and Assembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Sealing point | ||||
 | : Indicates that the parts is connected at points with same symbols in actual vehicle. | ||||
Oil Pan (upper)
...
Disassembly and Assembly
WARNING:
REMOVAL
CAUTION:
Never drain engine oil when the engine is hot to avoid the danger of being scalded.
Remove main muffler. Refer to EXHAUST SYSTEM : Removal & Installation.
Remove front pr ...
