Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

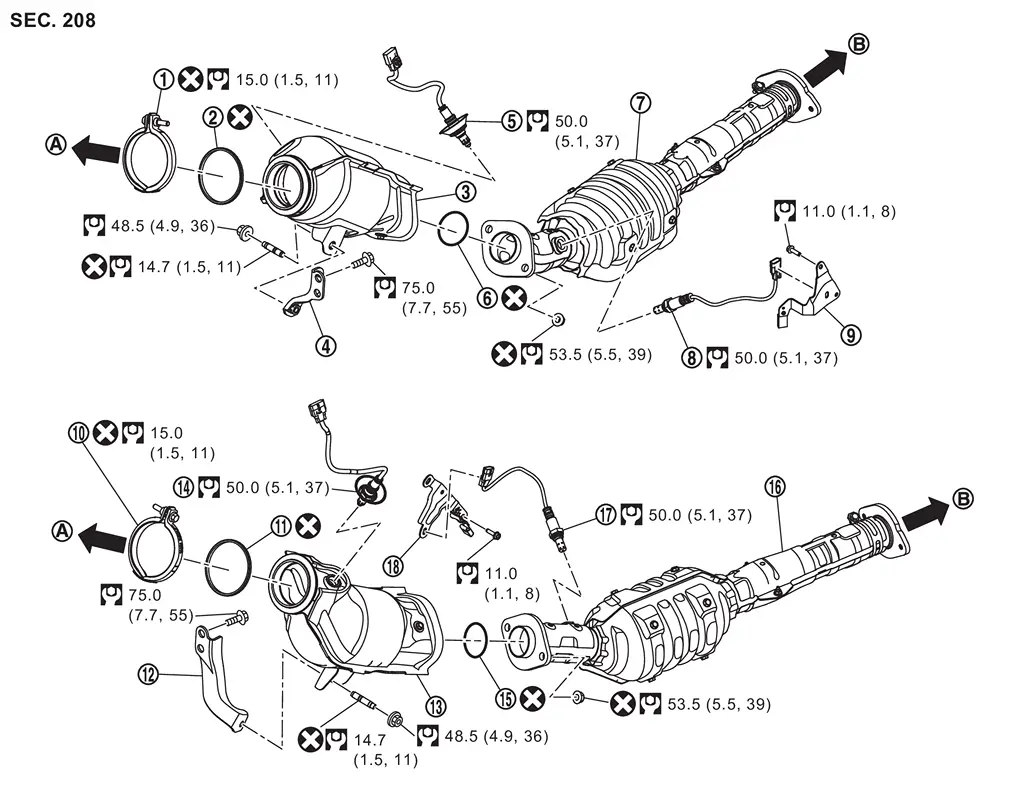

 | Clamp (bank 1) |  | Gasket 1 (bank 1) |  | Catalyst converter (bank 1) |
 | Catalyst converter support bracket (bank 1) |  | Air fuel ratio (A/F) sensor (bank 1) |  | Gasket 2 (bank 1) |
 | 2nd catalyst converter (bank 1) |  | Heated oxygen sensor (bank 1) |  | Bracket (bank 1) |
 | Clamp (bank 2) |  | Gasket 3 (bank 2) |  | Catalyst converter support bracket (bank 2) |
 | Catalyst converter (bank 2) |  | Air fuel ratio (A/F) sensor (bank 2) |  | Gasket 4 (bank 2) |
 | 2nd catalyst converter (bank 2) |  | Heated oxygen sensor (bank 2) |  | Bracket (bank 2) |
 | To turbocharger assembly. Refer to Exploded View. |  | To main muffler. Refer to EXHAUST SYSTEM : Exploded View. | ||
 : Always replace after every disassembly. | |||||
 : N·m (kg-m, ft-lb) | |||||
Catalyst
...
Removal and Installation
WARNING:
REMOVAL
Bank 1 side
Remove front tire assembly (RH). Refer to ROAD WHEEL TIRE : Removal & Installation.
Remove fender protector (RH). Refer to Removal and Installation.
Remove main muffle ...
