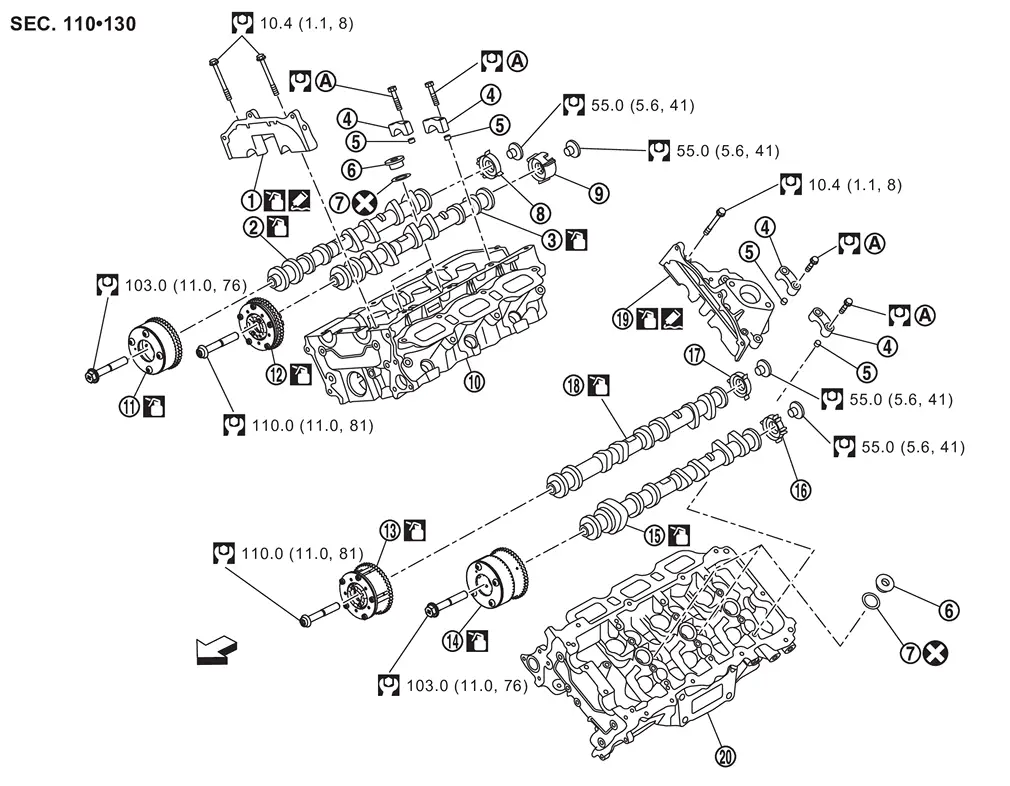

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Camshaft bracket (No. 1) (bank 1) |  | Camshaft (EXH) (bank 1) |  | Camshaft (INT) (bank 1) |
 | Camshaft bracket |  | Dowel pin |  | Plug |
 | Gasket |  | Camshaft signal plate (EXH) |  | Camshaft signal plate (INT) |
 | Cylinder head (bank 1) |  | Exhaust camshaft sprocket (bank 1) |  | Intake camshaft sprocket (bank 1) |
 | Intake camshaft sprocket (bank 2) |  | Exhaust camshaft sprocket (bank 2) |  | Camshaft (EXH) (bank 2) |
 | Camshaft signal plate (EXH) |  | Camshaft signal plate (INT) |  | Camshaft (INT) (bank 2) |
 | Camshaft bracket (No. 1) (bank 2) |  | Cylinder head (bank 2) | ||
 | Comply with the assembly procedure when tightening. Refer to Removal & Installation. | ||||
 | : Engine front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
 | : Sealing point | ||||
Camshaft
...
Removal & Installation
WARNING:
REMOVAL
Remove front cover. Refer to Removal & Installation.
Remove timing chain. Refer to Removal and Installation.
Remove fuel tube assembly. Refer to Removal and Installation.
Remove h ...
