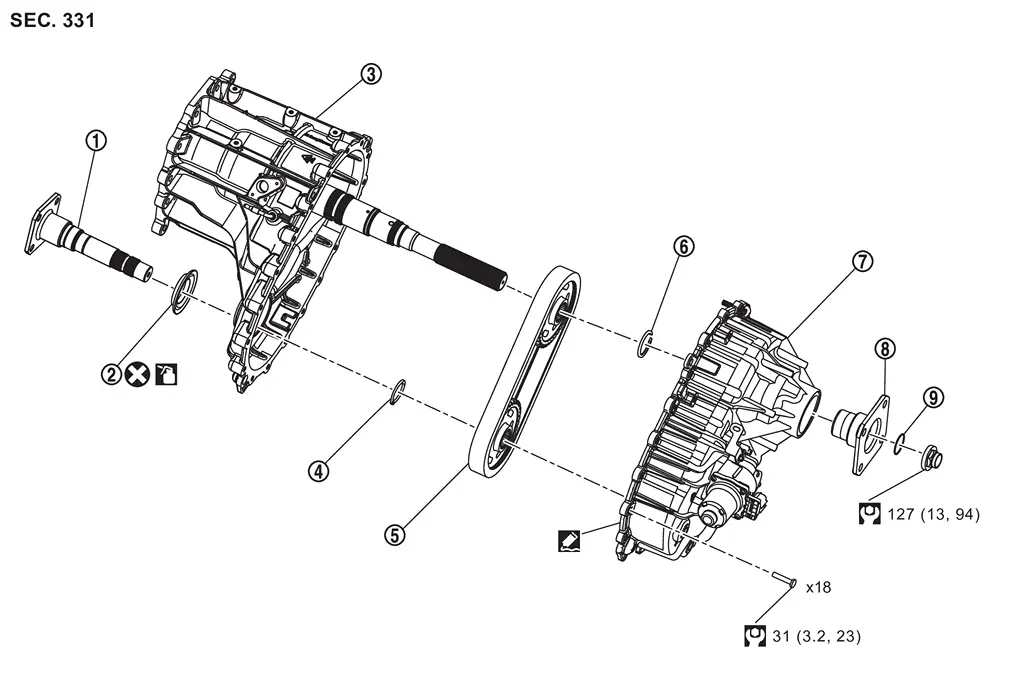

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front output shaft |  | Front oil seal |  | Front case |
 | Snap ring |  | Sprockets with chain |  | Snap ring |
 | Rear case |  | Rear companion flange |  | O-ring |
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Apply transfer fluid. | ||||
 | : Apply Genuine Liquid Gasket, Loctite 598 or equivalent. | ||||
Front Oil Seal
...
Removal and Installation
WARNING:
REMOVAL
Drain transfer fluid. Refer to Draining.
Remove transfer assembly from vehicle. Refer to Removal and Installation.
Remove the rear companion flange and remove the o-ring.
Remove th ...
