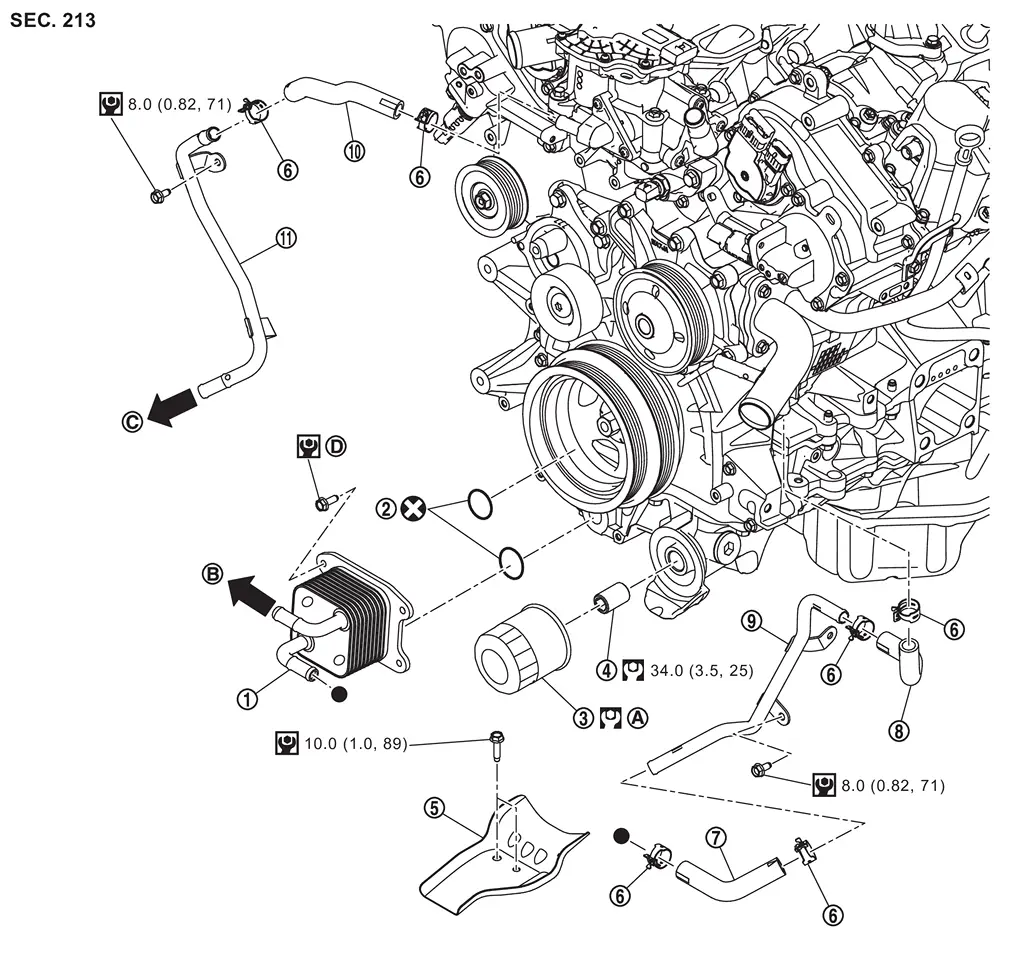

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Engine / Engine Lubrication System — Removal and Installation / Oil Cooler / Exploded View

	Oil cooler	O-ring	Oil filter
	Connector bolt	Oil catch plate	Clamp
	Oil cooler hose 2	Oil cooler hose 3	Oil cooler pipe 2
	Oil cooler hose 1	Oil cooler pipe 1
	Comply with the installation procedure when tightening. Refer to Removal and Installation	To A/T water hose A. Refer to Exploded View	To A/T water hose B. Refer to Exploded View
	Comply with the installation procedure when tightening. Refer to Removal and Installation
	: N·m (kg-m, ft-lb)
	: N·m (kg-m, in-lb)
	: Always replace after every disassembly.
: Indicates that the part is connected at points with same symbol in actual vehicle.

WARNING: REMOVAL WARNING: Never get burn yourself, as engine oil and engine coolant may be hot. Remove engine under cover, using a power tool (commercial service tool). Refer to Removal and Installati ...
