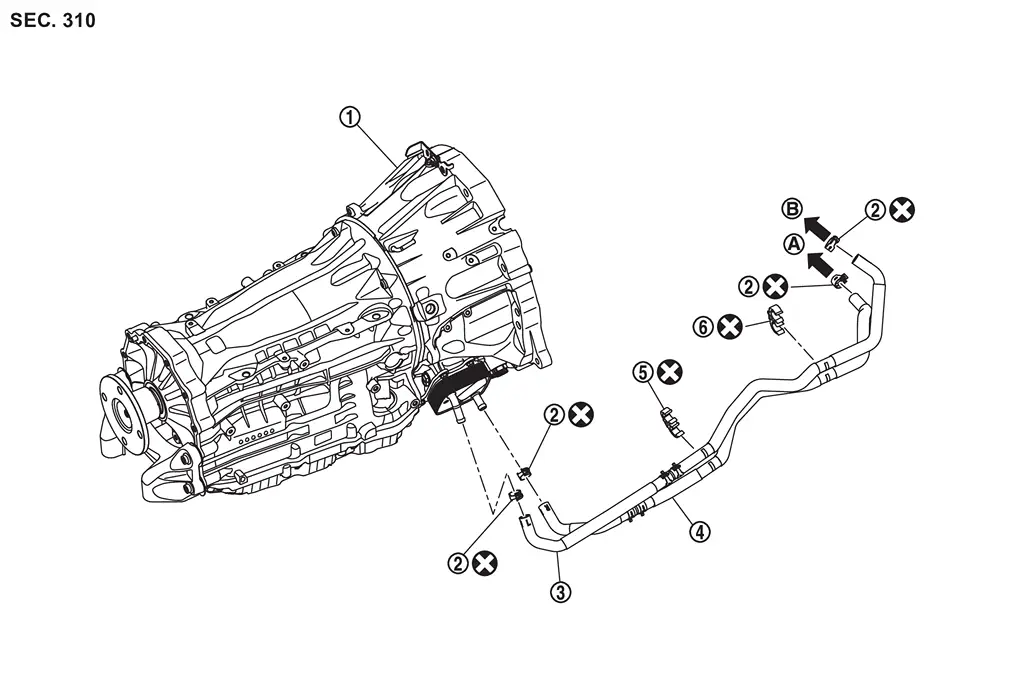

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | A/T assembly |  | Hose clamp |  | A/T water hose A |
 | A/T water hose B |  | Clip A |  | Clip B |
 | To water pipe. Refer to Exploded View. |  | To oil cooling exchanger. Refer to Exploded View. | ||
 | : Always replace after every disassembly. | ||||
Water Hose
...
Removal and Installation
WARNING:
REMOVAL
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator. Wrap a thick cloth around the ca ...
