Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
NOTE:
CAUTION:
Perform this step when the engine is cold.
Remove front under cover. Refer to Removal and Installation.
Drain engine coolant. Refer to ENGINE COOLANT : Draining.
Remove hose clamps

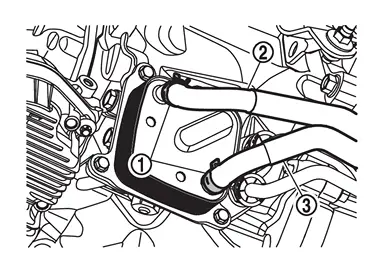

, and remove A/T water hose A
and A/T water hose B
from A/T fluid warmer.
CAUTION:
Never reuse hose clamps.

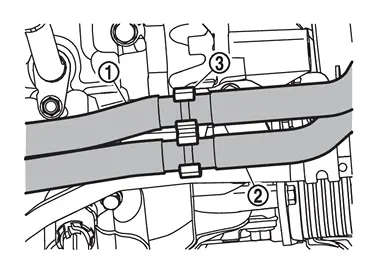

Remove A/T water hose A and A/T water hose B from clip A .
Remove A/T water hose A and A/T water hose B from clip B .

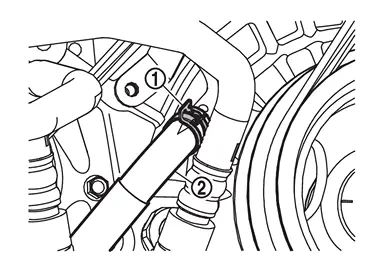

Remove hose clamp , and remove A/T water hose A from water pipe.
CAUTION:
Never reuse hose clamp.

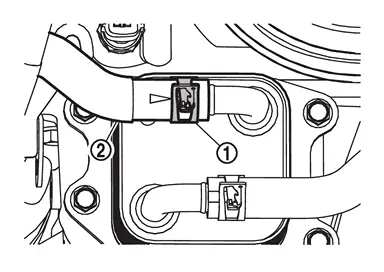

Remove hose clamp , and remove A/T water hose B from oil cooling exchanger.
CAUTION:
Never reuse hose clamp.

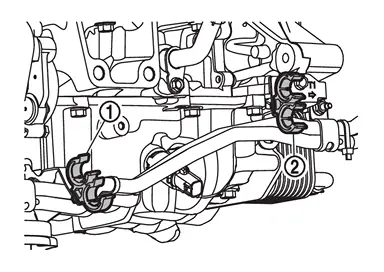

Remove clip A and clip B from bracket.
CAUTION:
Never reuse clips.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Hose clamp should not interfere with the bulge of tube.
Securely install the water hose clip to the bracket hole.
Refer to the following when installing A/T water hose.
Water hose
Installation side tube
Direction of paint mark Hose insertion depth (L) A/T Water hose A Water pipe Align with the paint mark on water pipe End reaches the 2-stage bulge. A/T fluid warmer Align with the paint mark on the A/T fluid warmer A/T Water hose B A/T fluid warmer Align with the paint mark on the A/T fluid warmer oil cooling exchanger Frontward
Refer to the following when installing hose clamps.
Water hose Installation side tube Hose clamp
Direction of tab Clamping position Water hose A Water pipe Frontward 3 - 7 mm (0.12 - 0.28 in) (A) from hose end. A/T fluid warmer Upward Water hose B A/T fluid warmer Upward oil cooling exchanger Frontward
When installing the A/T water hose
to the clip , attach the paint mark
on the A/T water hose to the rightward of the vehicle.
Exploded View
A/T assembly Hose clamp A/T water hose A A/T water hose B Clip A Clip B To water pipe. Refer to Exploded View. To oil cooling exchanger. Refer to Exploded View. : Always replace after every ...
Inspection and Adjustment
INSPECTION AFTER INSTALLATION
Start the engine, and check the joints for coolant leakage. Refer to ENGINE COOLANT : Inspection. ...
