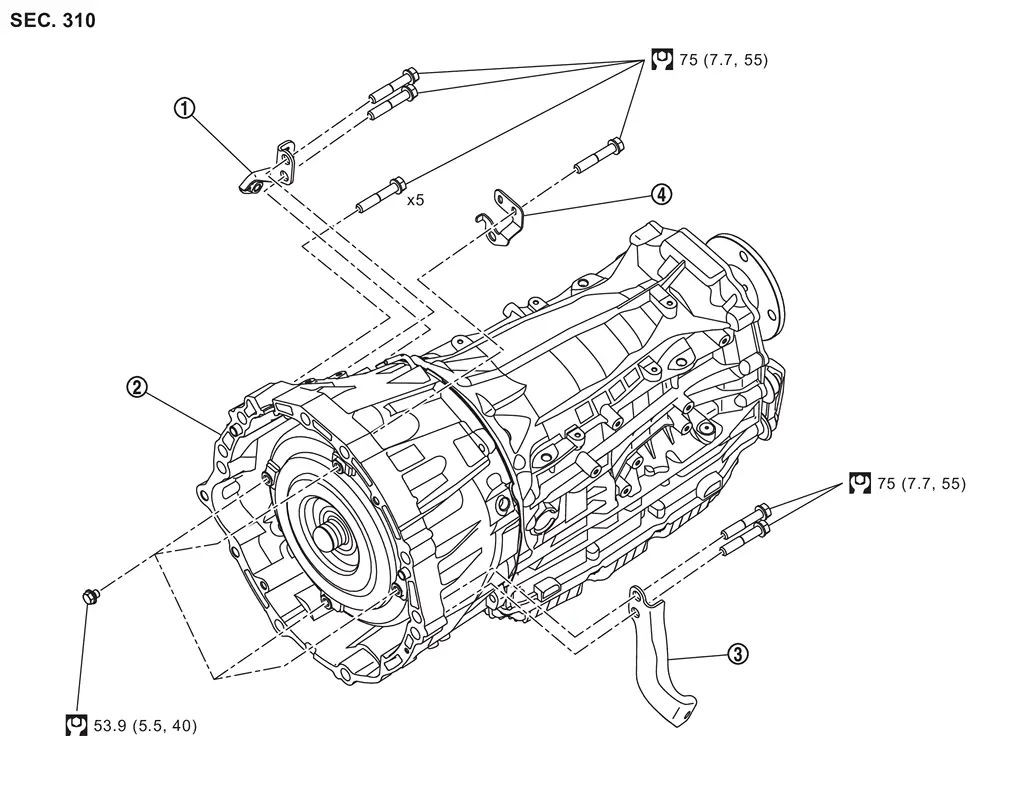

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Bracket |  | A/T assembly |  | Bracket |
 | Bracket | ||||
 | : N·m (kg-m, ft-lb) |
2wd
...
Removal and Installation
WARNING:
REMOVAL
CAUTION:
When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from the A/T assembly.
Be careful not to damage sensor edge.
When replacing A/T ...
