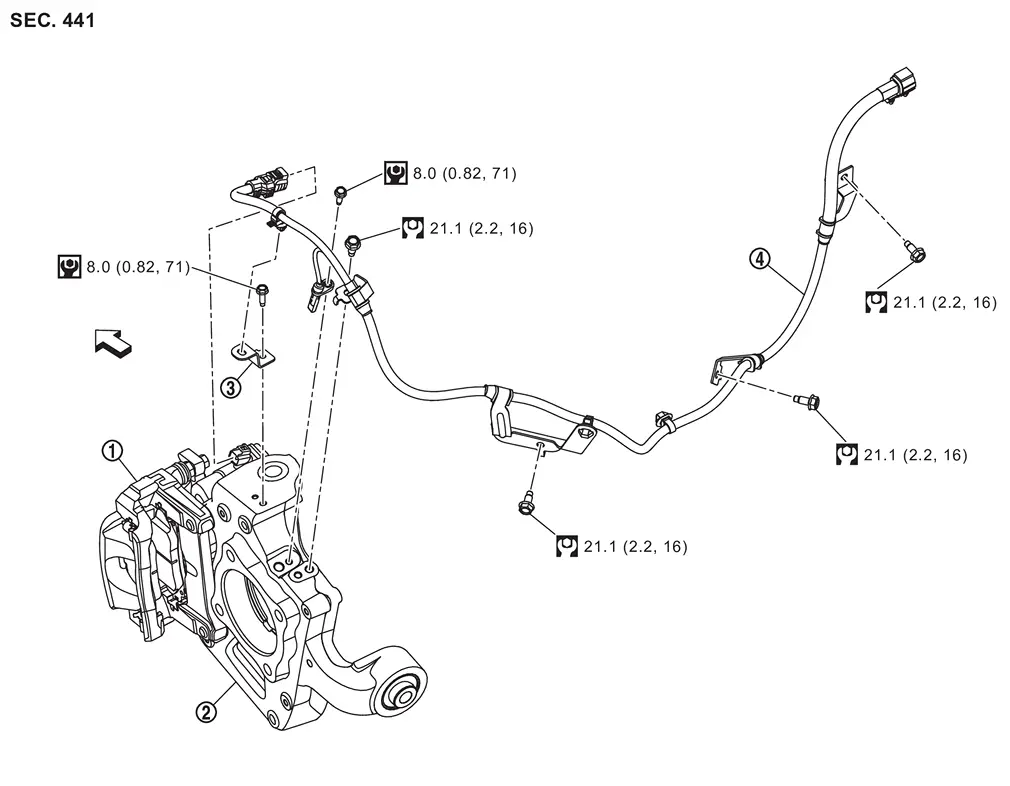

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear brake caliper assembly |  | Axle housing |  | Bracket |
 | Parking brake actuator harness and rear wheel sensor | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
Removal and Installation
WARNING:
REMOVAL
Turn the ignition switch ON.
CAUTION:
Never start the engine.
Release the parking brake.
CAUTION:
If the brake cannot be released, release it manually. Refer to Diagnosis Procedure. ...
