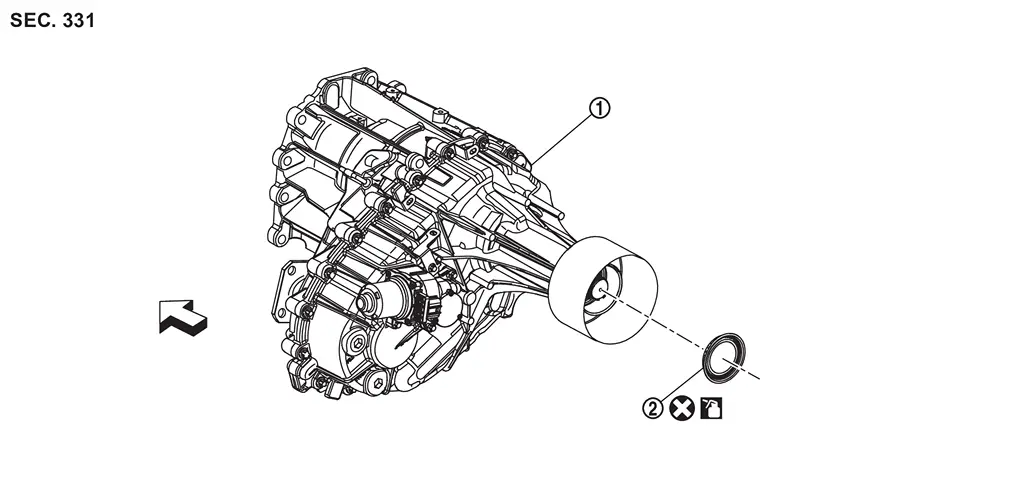

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Rear Oil Seal

...

Removal and Installation

WARNING: REMOVAL Remove the drain plug to drain the transfer fluid. Refer to Draining. Remove the rear propeller shaft. Refer to Removal and Installation. Remove the rear oil seal. CAUTION: Never dam ...
