Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

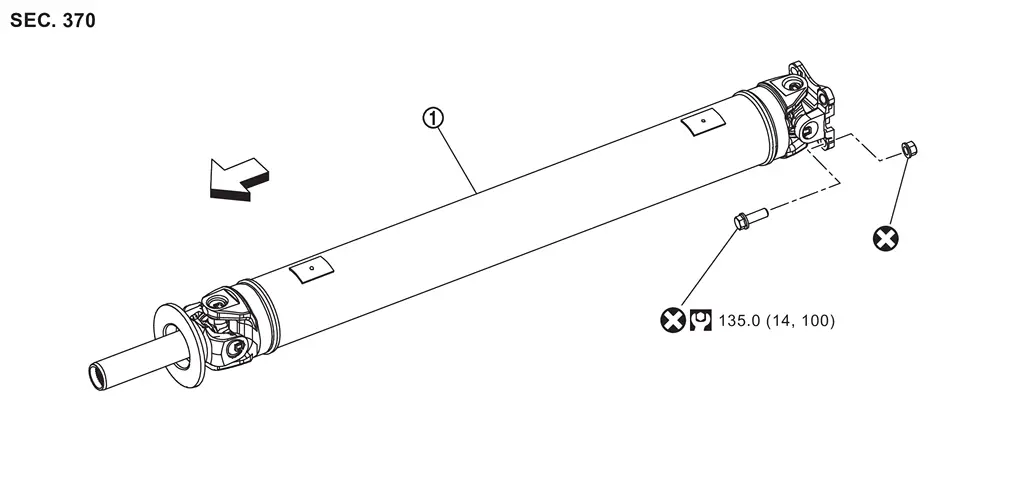

REMOVAL
 | Propeller shaft assembly |
 : Vehicle front | |||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. |

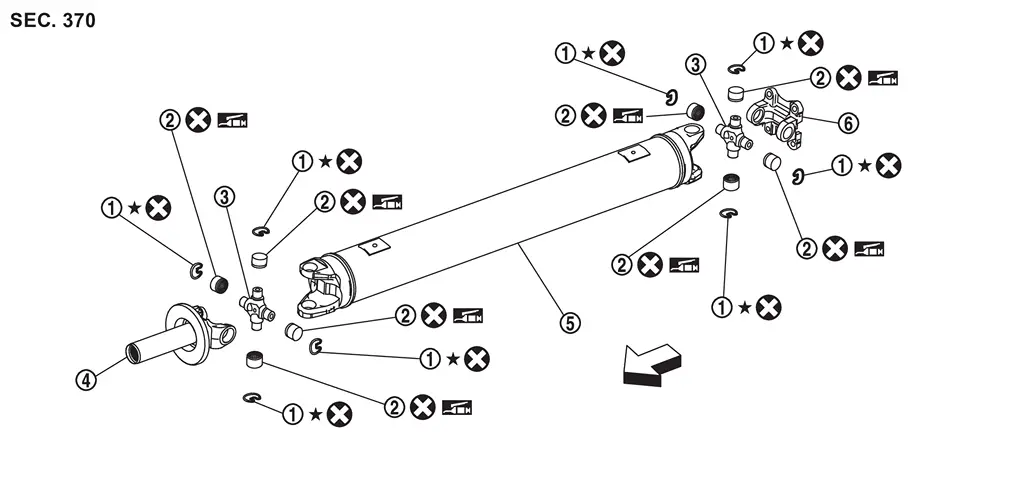

DISASSEMBLY
| Snap ring |  | Journal bearing |  | Journal |
 | Sleeve yoke |  | Propeller shaft tube |  | Flange yoke |
| : Vehicle front | |||||
| : Always replace after every disassembly. | |||||
 : Select with proper thickness. | |||||
 : Apply multi-purpose grease. |
NOTE:
Replace , and as a set.
Removal and Installation
WARNING:
REMOVAL
Put matching mark on rear propeller shaft flange yoke and final drive companion flange.
CAUTION:
Remove propeller shaft assembly fixing bolts and nuts.
Remove propeller shaft assem ...
