Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

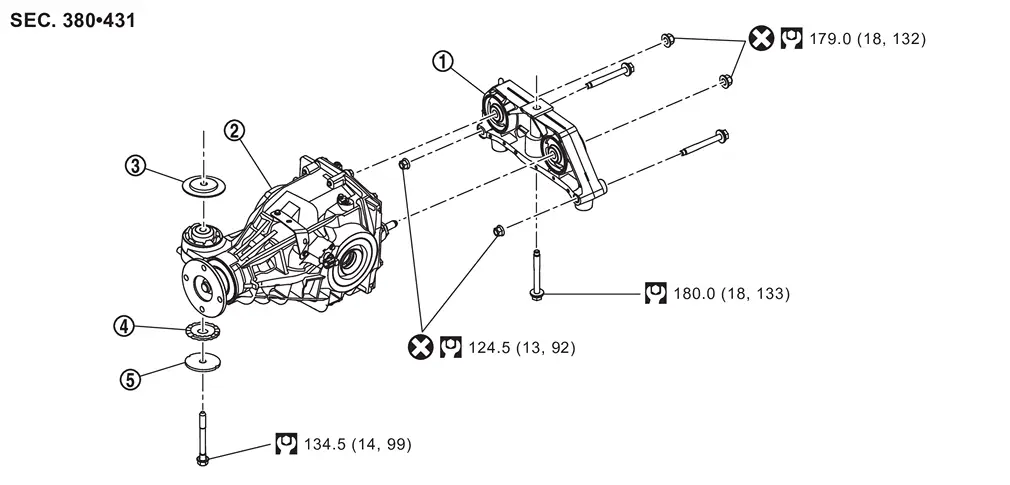

 | Final drive mounting bracket |  | Rear final drive assembly |  | Upper stopper |
 | Lower stopper |  | Washer | ||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
Removal and Installation
WARNING:
REMOVAL
Drain gear oil. Refer to Draining.
Remove rear propeller shaft from final drive. Refer to Removal and Installation.
Remove drive shafts. Refer to Removal and Installation.
Remove rea ...
Other materials:
Inspection
INSPECTION PROCEDURE
Connect recovery/recycling/recharging equipment (for HFO-1234yf) or manifold gauge.
Start the engine, and set to the following condition.
Test condition Surrounding condition Indoors or in the shade
(in a well-ventilated place) Vehicle condition Door Closed Door glass Full ...
Disassembly and Assembly
DISASSEMBLY
Put a matching mark between propeller shaft and flange yoke and remove snap rings .
CAUTION:
For matching mark, use paint. Never damage the surface.
Lightly tap bottom of yoke using a copper hammer and remove journal bearing.
CAUTION:
Never damage the yoke.
ASSEMBLY
Install journal ...
NVH Troubleshooting Chart
SUSPECTED PARTS
(Possible cause) Symptom Reference Transfer fluid leakage Noise TRANSFER FLUID (Level low) 1 Inspection TRANSFER FLUID (Wrong) 4 2 TRANSFER FLUID (Level too high) 1 LIQUID GASKET (Damaged) 2 Exploded View OIL SEAL (Worn or damaged) 2 Front oil seal: Exploded View
