Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL

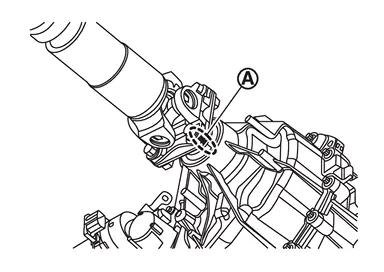

Put matching mark
on rear propeller shaft flange yoke and final drive companion flange.
CAUTION:

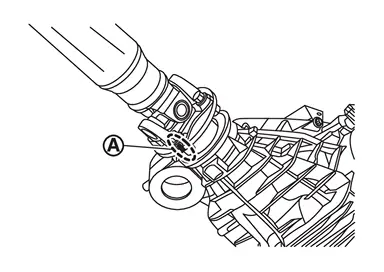

Put matching mark on rear propeller shaft flange yoke and transfer companion flange.
CAUTION:
For matching mark, use paint. Never damage propeller shaft flange and transfer companion flange.
Remove propeller shaft assembly fixing bolts and nuts.
Remove propeller shaft assembly from vehicle.
Perform inspection after removal. Refer to Inspection.
INSTALLATION
Note the following, and install in the reverse order of removal.
For non-reusable parts, refer to Exploded View.
For each tightening torque, refer to Exploded View.
Align matching marks
to install propeller shaft flange yoke and transfer companion flange.If propeller shaft assembly or final drive assembly has been replaced, connect them as follows:
NOTE:Matching mark
is has been painted in either position.
Perform inspection after installation. Refer to Inspection.
Exploded View
REMOVAL
Propeller shaft assembly
: Vehicle front : N·m (kg-m, ft-lb) : Always replace after every disassembly.
DISASSEMBLY
Snap ring Journal bearing Journal Flange yoke Propeller shaft tube ...
Disassembly and Assembly
DISASSEMBLY
Put a matching mark between propeller shaft and flange yoke as shown.
CAUTION:
For matching mark, use paint. Never damage the surface.
Remove snap rings .
Lightly tap bottom of yoke us ...
