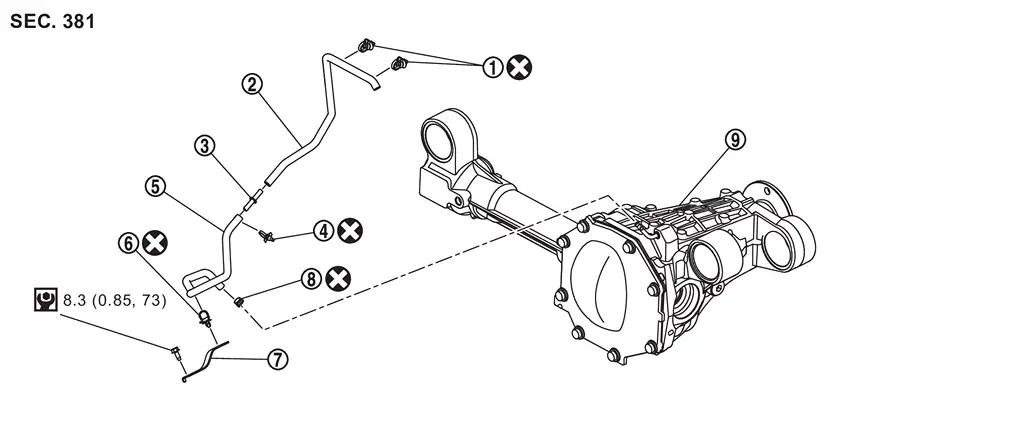

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Clip A |  | Air breather hose A |  | Hose connector |
 | Clip B |  | Air breather hose B |  | Clip C |
 | Bracket |  | Hose clamp |  | Front final drive assembly |
 : Always replace after every disassembly. | |||||
 : Nï½¥m (kg-m, in-lb) | |||||
Air Breather
...
Removal and Installation
WARNING:
REMOVAL
Remove engine under cover. Refer to Exploded View.
Release hose clamp , and remove air breather hose B from final drive assembly.
Remove clip C from bracket .
Remove bracket mou ...
