Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Remove engine under cover. Refer to Exploded View.
Release hose clamp
, and remove air breather hose B
from final drive assembly.
Remove clip C from bracket .
Remove bracket mounting bolt (
) and remove bracket .
Remove clip B .
Remove clip A .
Remove air breather hose assembly.
Separate each component part.
INSTALLATION
Note the following, and install in the reverse order of removal.
For non-reusable parts, refer to Exploded View.
When inserting air breather hose to hose connector
, be sure to insert it fully until its end reaches the stop.
CAUTION:
Align paint marks
on each air breather hose.When inserting air breather hose B to final drive assembly, be sure to insert it fully until its end reaches the stop.
CAUTION:

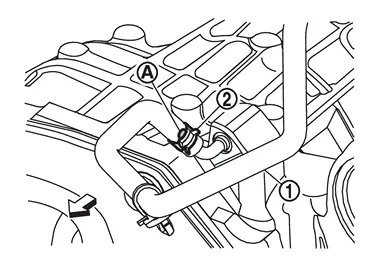

Install air breather hose B
so that the paint mark on it and tab of hose clamp faced leftward of the vehicle.
: Vehicle front Set hose clamp
at the end of air breather hose with dimension (A) from the hose edge.
Dimension (A) : 5 – 7 mm (0.20 – 0.28 in)
When installing air breather hose, make sure there are no pinched or restricted areas on air breather hose caused by bending or winding.
Exploded View
Clip A Air breather hose A Hose connector Clip B Air breather hose B Clip C Bracket Hose clamp Front final drive assembly : Always replace after every disassembly. : Nï½¥m (kg-m, in-lb) ...
