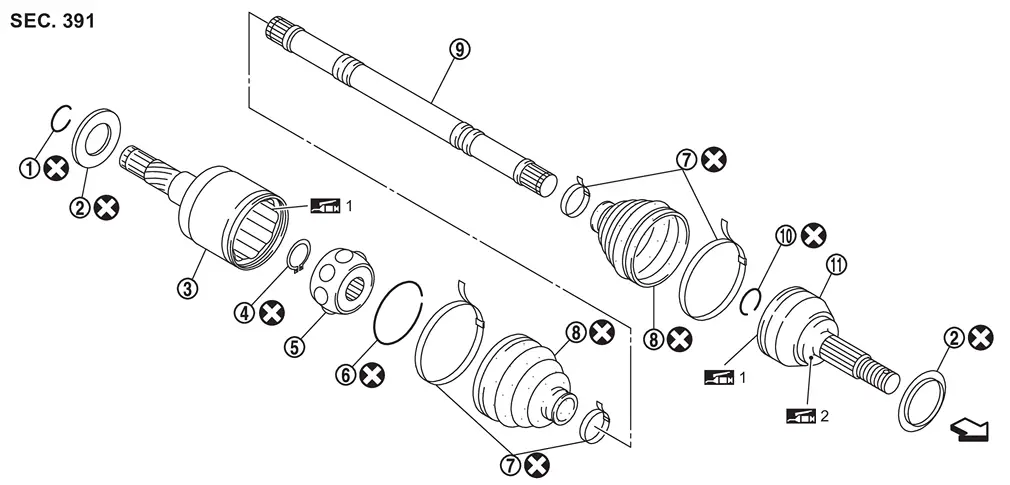

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Circular clip |  | Dust shield |  | Housing |
 | Snap ring |  | Ball cage/steel ball/inner race assembly |  | Stopper ring |
 | Boot band |  | Boot |  | Shaft |
 | Circular clip |  | Joint sub-assembly | ||
 | : Wheel side | ||||
 | : Always replace after every disassembly. | ||||
 | 1: NISSAN Genuine grease or equivalent. | ||||
| 2: Apply paste [service parts (440037S000)] | ||||
Removal and Installation
WARNING:
NOTE:
Remove boot after drive shaft is removed from the vehicle.
Remove and install drive shaft. Refer to Removal and Installation.
Disassembly and assembly drive shaft. Refer to Disassembly ...
