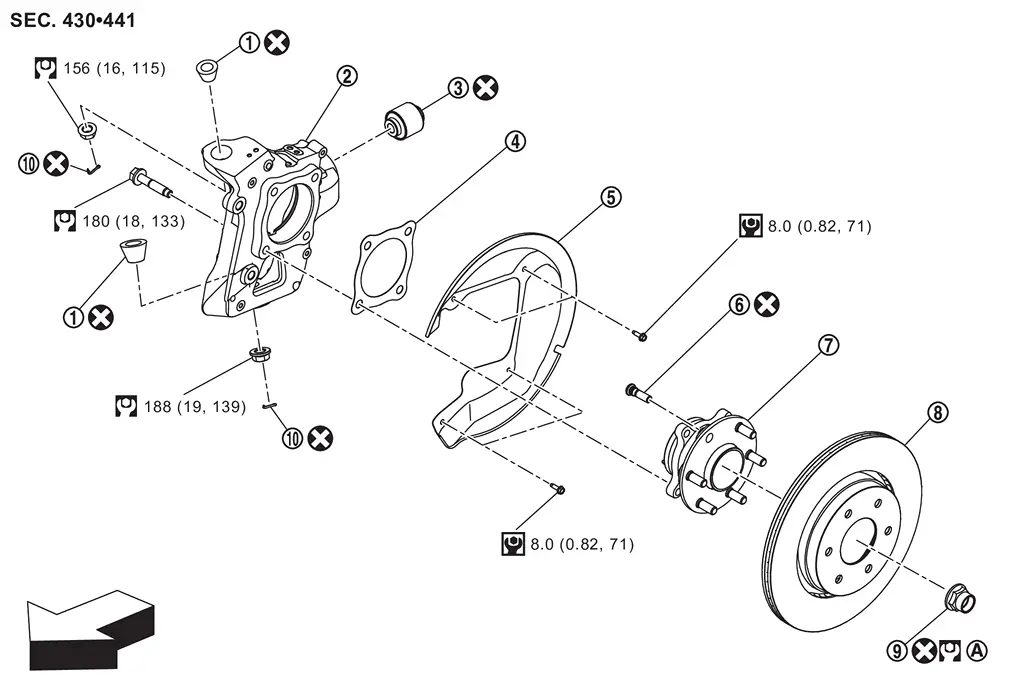

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Ball seat |  | Axle housing |  | Bushing |
 | Baffle |  | Back plate |  | Hub bolt |
 | Wheel hub and bearing assembly |  | Disc rotor |  | Wheel hub lock nut |
 | Cotter pin | ||||
 | Tightening must be done following the installation procedure. Refer to Removal and Installation. | ||||
 | : Vehicle front | ||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
Removal and Installation
WARNING:
WITHOUT DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION
Removal
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Remove brake hose bracket from suspension arm. Re ...
