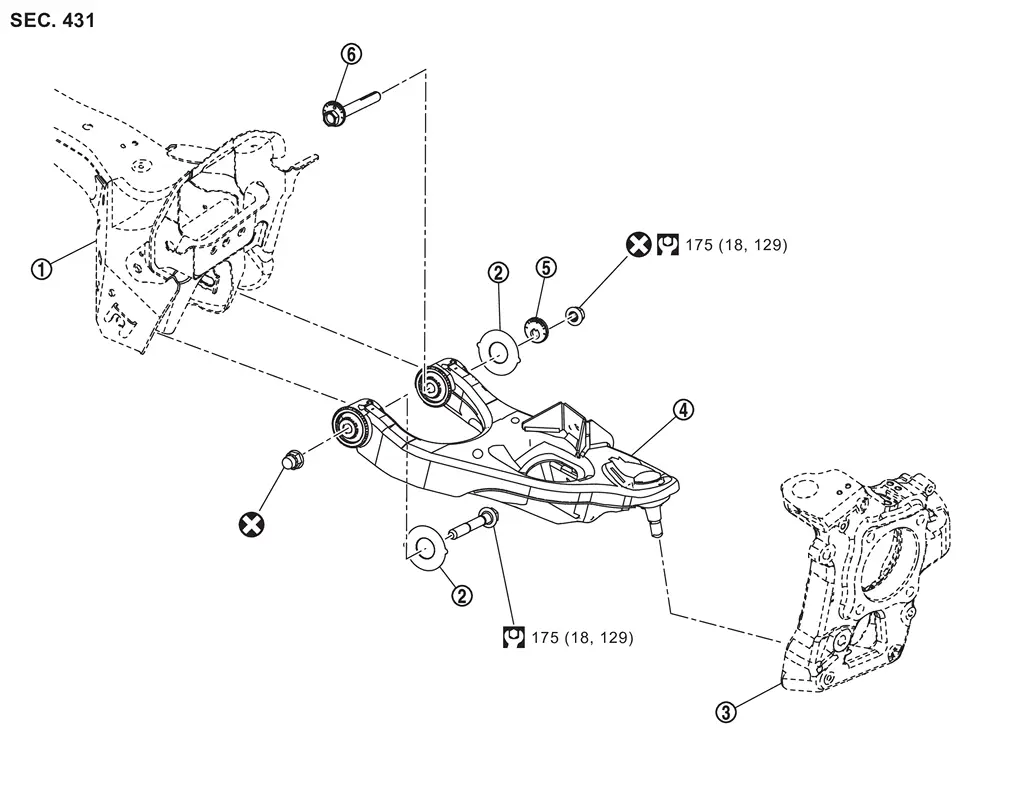

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Frame |  | Stopper rubber |  | Axle housing |
 | Front lower link |  | Eccentric disc |  | Adjusting bolt |
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
Front Lower Link
...
Removal and Installation
REMOVAL
Without Dynamic Digital Suspension and Electronic Air Suspension
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Remove wheel sensor and harness connector. Move wheel sens ...
