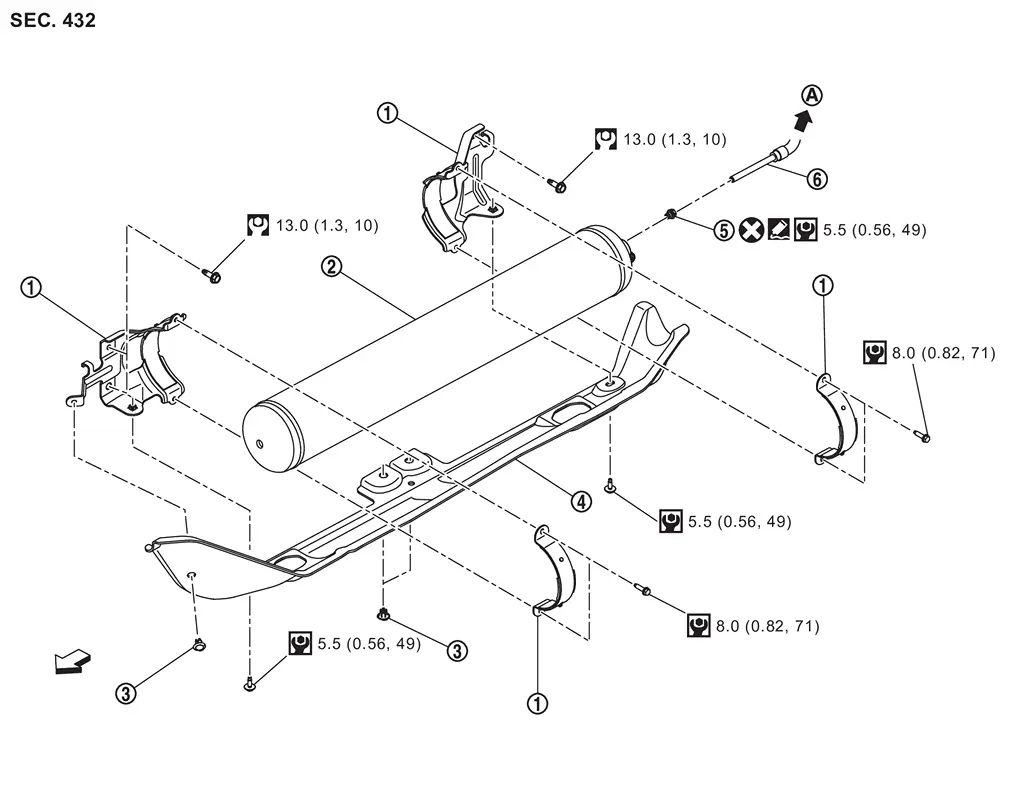

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Bracket |  | Air tank |  | Clip |
 | Protector |  | Air connector |  | Air tube |
 | To air suspension control module | ||||
 | :Vehicle front | ||||
 | : Always replace after every disassembly. | ||||
 | :N·m (kg-m, ft-lb) | ||||
 | :N·m (kg-m, in-lb) | ||||
 | :Apply silicone sealant. | ||||
Air Tank
...
Removal and Installation
REMOVAL
WARNING:
CAUTION:
Start engine.
Turn OFF the electronic air suspension function. Refer to Operation.
Stop engine.
Lift up the vehicle.
Remove protector mounting bolts and clips, and remove p ...
