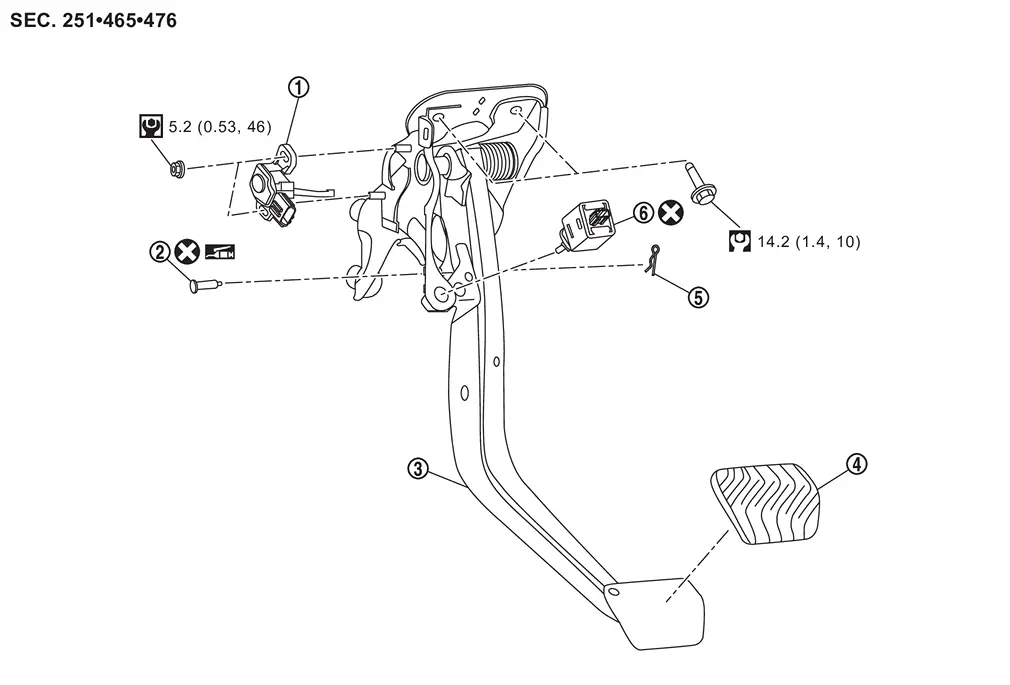

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Stroke sensor |  | Clevis pin |  | Brake pedal assembly |
 | Brake pedal pad |  | Snap pin |  | Stop lamp switch |
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Apply Nissan multi-purpose Special Grease No.2 or equivalent. | ||||
 | : Always replace after every disassembly. | ||||
Brake Pedal
...
Removal and Installation
REMOVAL
Remove driver knee air bag module. Refer to Removal and Installation.
Remove BCM. Refer to Removal and Installation.
Remove fuse block (J/B).
Disconnect the stop lamp switch harness connectors ...
