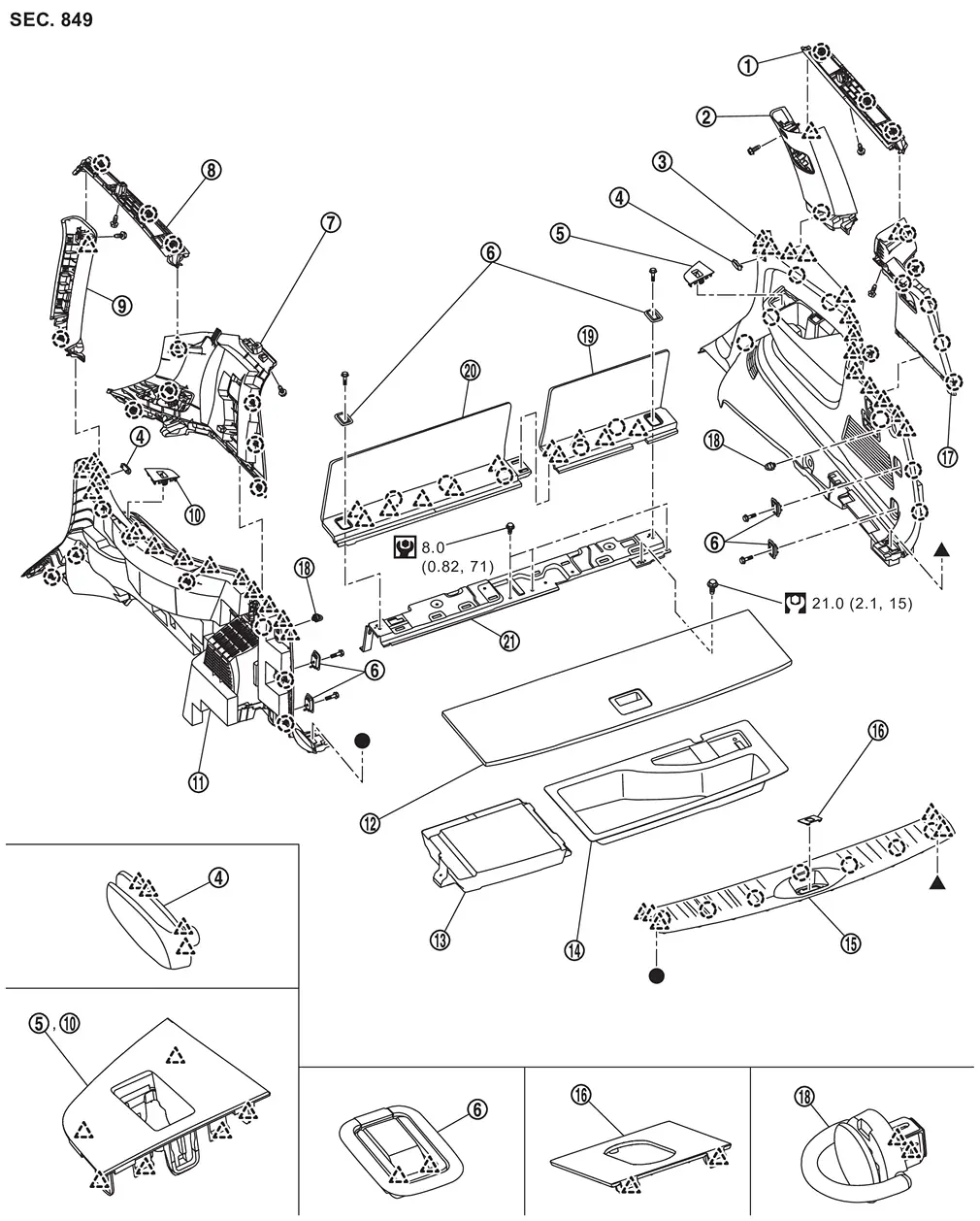

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Luggage side upper finisher RH |  | Rear pillar finisher RH |  | Luggage side lower finisher RH |
 | Seat belt hook |  | Seat switch escutcheon RH |  | Rope hook |
 | Back pillar garnish LH |  | Luggage side upper finisher LH |  | Rear pillar finisher LH |
 | Seat switch escutcheon LH |  | Luggage side lower finisher LH |  | Luggage floor rear board |
 | Luggage side box |  | Luggage floor box |  | Luggage rear plate |
 | Luggage rear plate mask |  | Back pillar garnish RH |  | Luggage hook |
 | Luggage floor board RH |  | Luggage floor board LH |  | Luggage floor bracket |
 | : Clip | ||||
 | : Pawl | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, fl-lb) | ||||
 ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Luggage Trim
...
