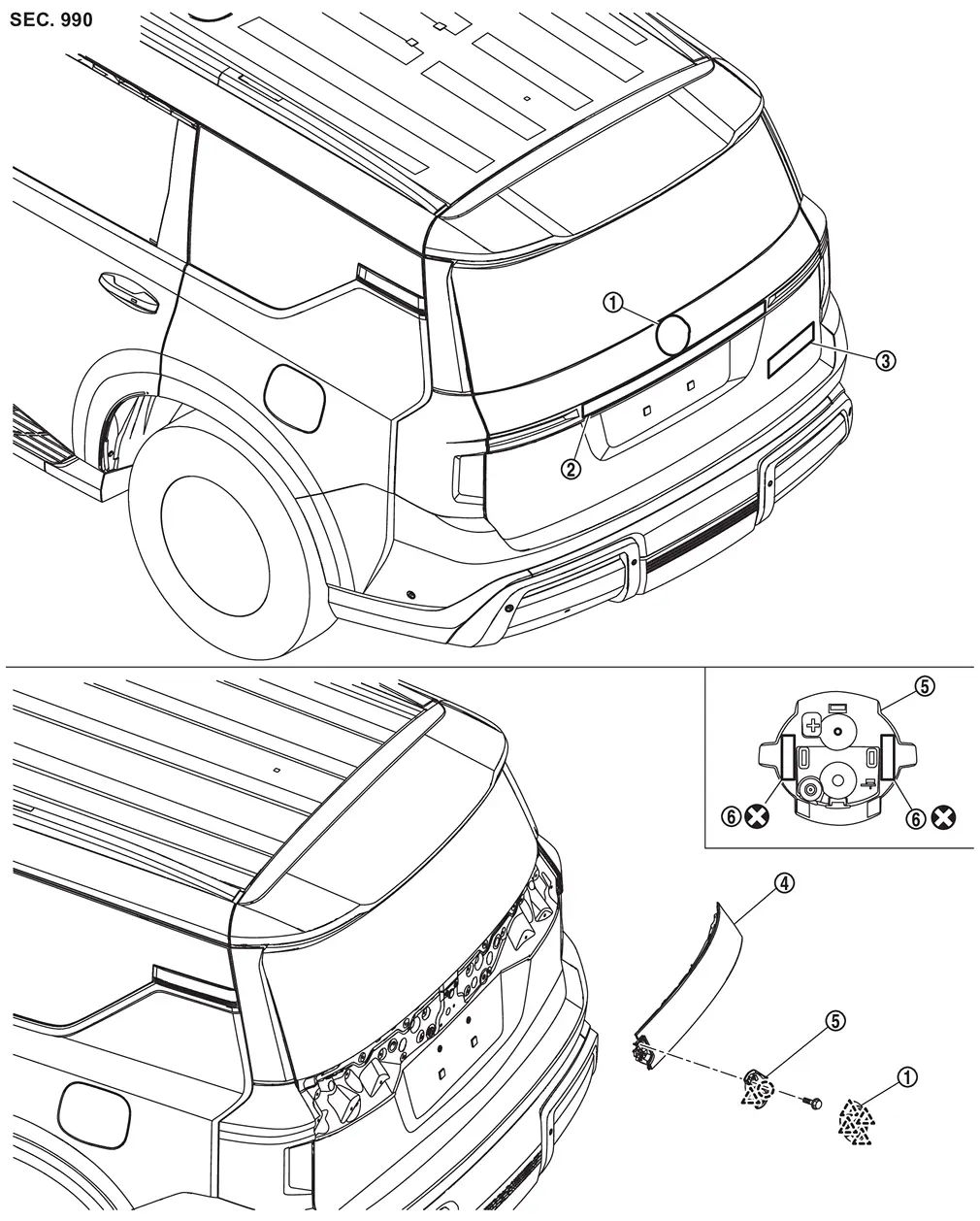

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear emblem |  | Emblem A |  | Emblem B |
 | Tail lamp RH |  | Rear emblem bracket |  | Double-sided tape [t: 1.2 mm (0.047 in)] |
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
With Tail Lamp
...
Removal and Installation
REMOVAL
Apply protective tape (A) on the part to protect it from damage.
Disengage fixing pawls using remover tool (A), and then remove emblem A.
: Pawl
Remove emblem bracket mounting bolt.
App ...
