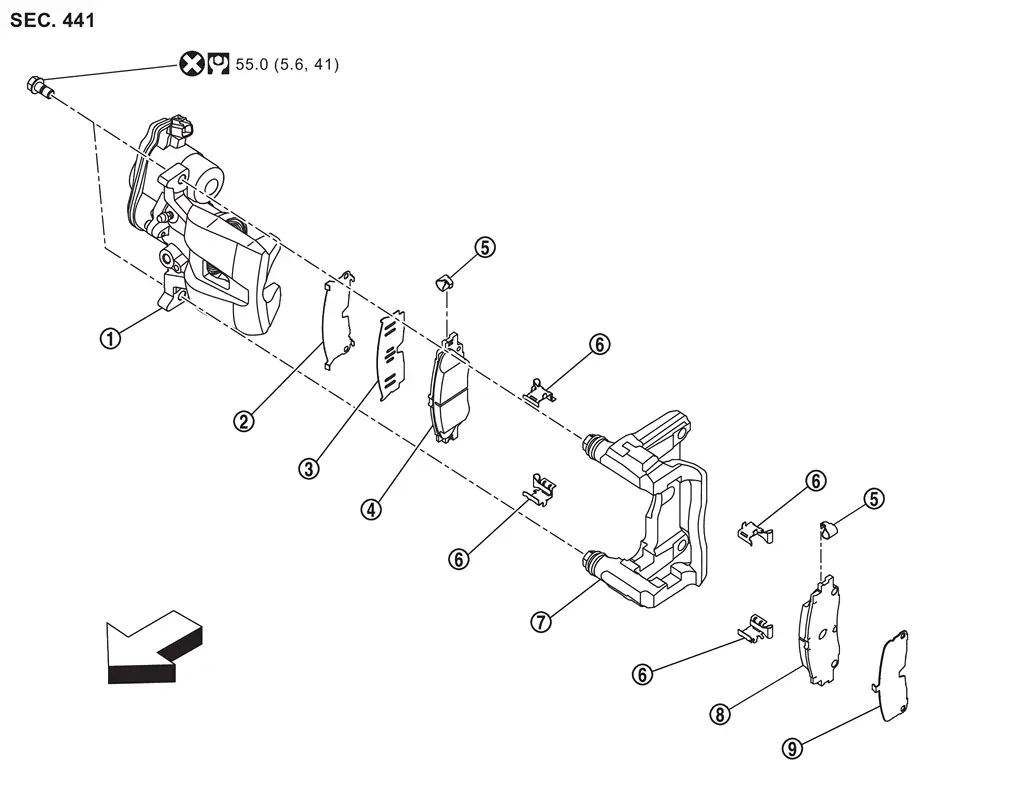

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Cylinder body |  | Inner shim cover |  | Inner shim |
 | Inner pad |  | Pad wear sensor |  | Pad retainer |
 | Torque member |  | Outer pad |  | Outer shim |
 | : Vehicle front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Always replace after every disassembly. | ||||
Brake Pad
...
Removal and Installation
WARNING:
REMOVAL
WARNING:
CAUTION:
Release the parking brake.
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Disconnect the parking brake actuator harness connector .
Remove sl ...
