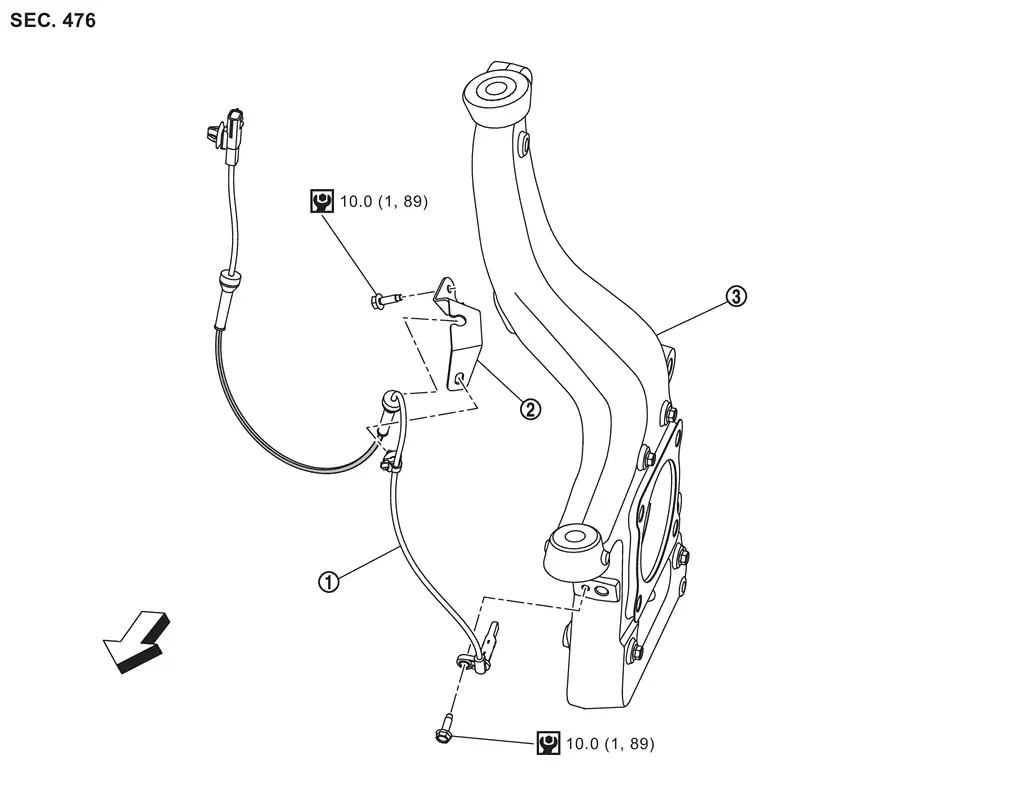

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Front Wheel Sensor

...

Removal and Installation

WARNING: REMOVAL Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation. Disconnect front wheel sensor harness connectors and remove harness clip. Remove grommet from bracket. Remove fron ...
