Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

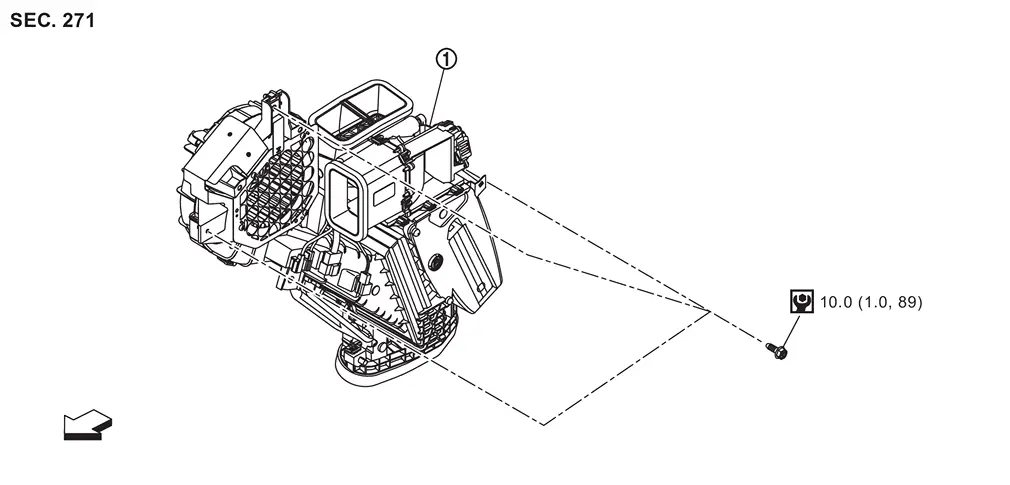

REMOVAL
 | Rear A/C unit assembly | ||||
 | : Vehicle front | ||||
 | : N·m (kg-m, in-lb) | ||||

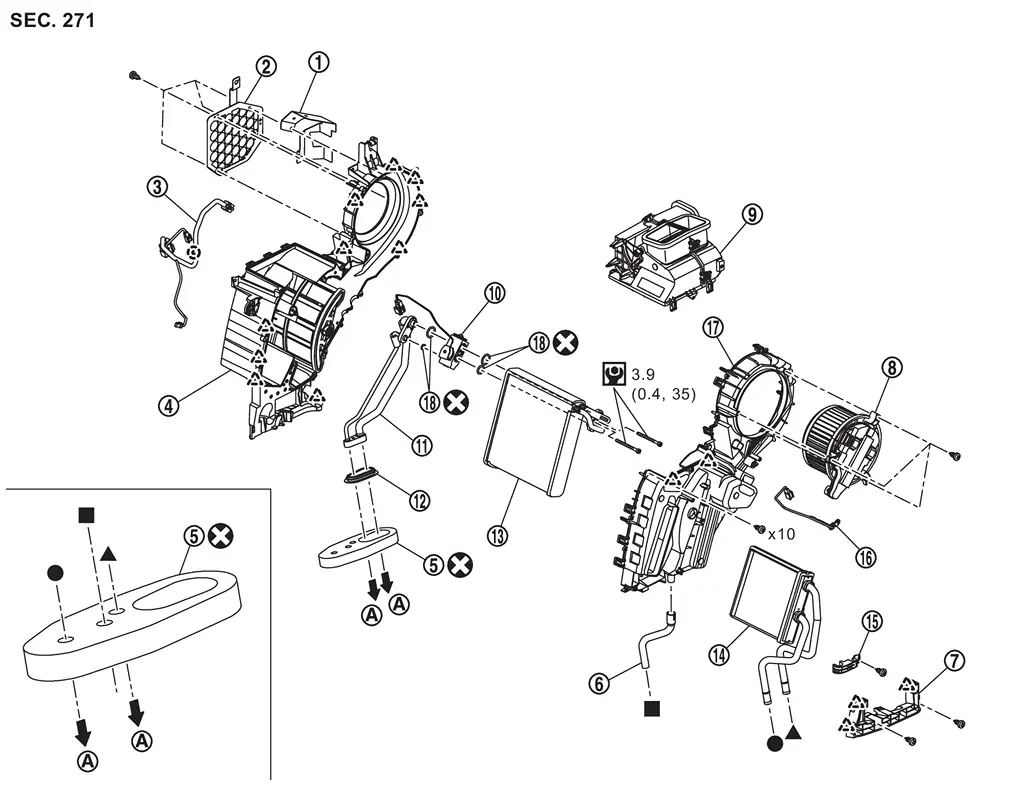

DISASSEMBLY
| Shield plate bracket |  | Shield plate |  | Sub harness |
 | Rear A/C unit case LH |  | Cooler packing |  | Drain hose |
 | Heater pipe support |  | Rear blower motor |  | Rear A/C unit case upper assembly |
 | Rear expansion valve |  | Rear evaporator pipe |  | Cooler grommet |
 | Rear evaporator |  | Rear heater core |  | Heater pipe clamp |
 | Rear in-vehicle sensor |  | Rear A/C unit case RH |  | O-ring |
 | To rear cooler pipe assembly Refer to Exploded View. | ||||
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
| : N·m (kg-m, in-lb) | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
