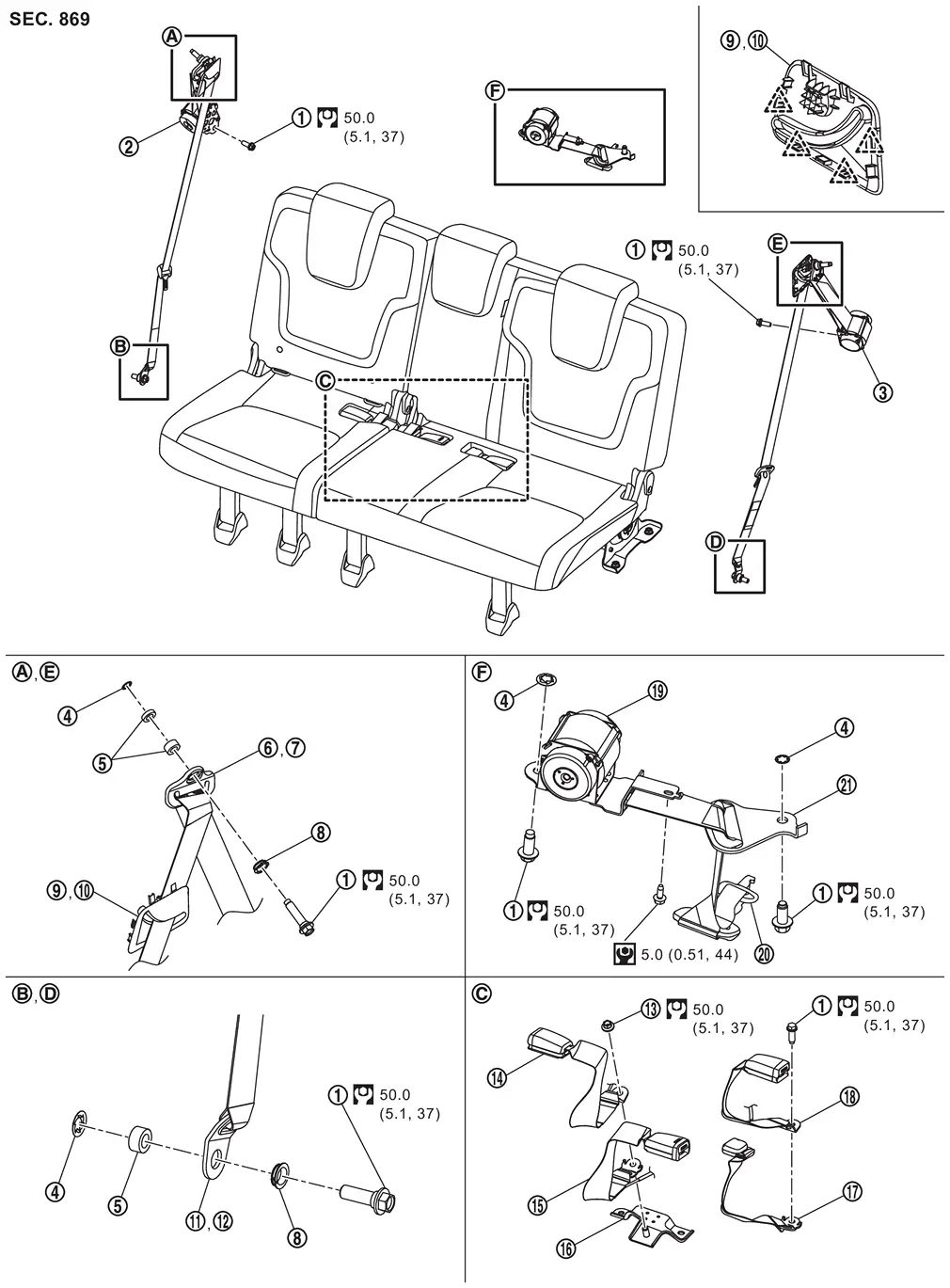

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Anchor bolt |  | Seat belt pre-tensioner retractor RH |  | Seat belt pre-tensioner retractor LH |
 | Retaining washer |  | Spacer |  | Shoulder anchor LH |
 | Shoulder anchor RH |  | Bush |  | Seat belt finisher LH |
 | Seat belt finisher RH |  | Anchor plate LH |  | Anchor plate RH |
 | Anchor nut |  | Seat belt buckle RH |  | Center seat belt buckle |
 | Anchor plate lower |  | Connector buckle |  | Seat belt buckle LH |
 | Center seat belt retractor |  | Connector tongue |  | Retractor bracket |
 | : Pawl | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
Third Seat Belt
...
Other materials:
Ultra High Strength Steel Part
DESCRIPTION
Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never perform the prohibition described below:
PROHIBITION
WARNING:
Never cut ...
Removal and Installation
CAUTION:
Never bend the fixing pawl of front armrest RH.
REMOVAL
Remove front door finisher RH. Refer to Removal and Installation.
Disconnect front power window switch (passenger side) harness connector and door lock and unlock switch harness connector.
Remove front door squawker RH from front door ...
Removal and Installation
WARNING:
REMOVAL
CAUTION:
Oil filter is provided with relief valve. Use genuine NISSAN oil filter or equivalent.
Never get burned when engine and engine oil may be hot.
When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
Never allow engine oil to adhere to drive belt.
C ...
