Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never bend the fixing pawl of front armrest RH.
REMOVAL
Remove front door finisher RH. Refer to Removal and Installation.
Disconnect front power window switch (passenger side) harness connector and door lock and unlock switch harness connector.
Remove front door squawker RH from front door finisher RH (if equipped). Refer to Removal and Installation.
Remove front armrest RH fixing screws
, and then remove front armrest RH
from front door finisher RH
.
 | : Pawl |

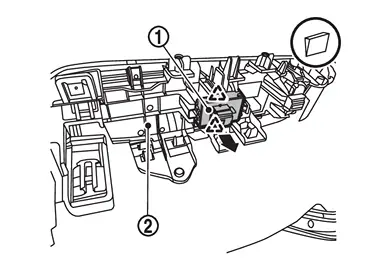

Remove front power window switch (passenger side) from front armrest RH .
| : Pawl |
INSTALLATION
Install in the reverse order of removal.
