Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

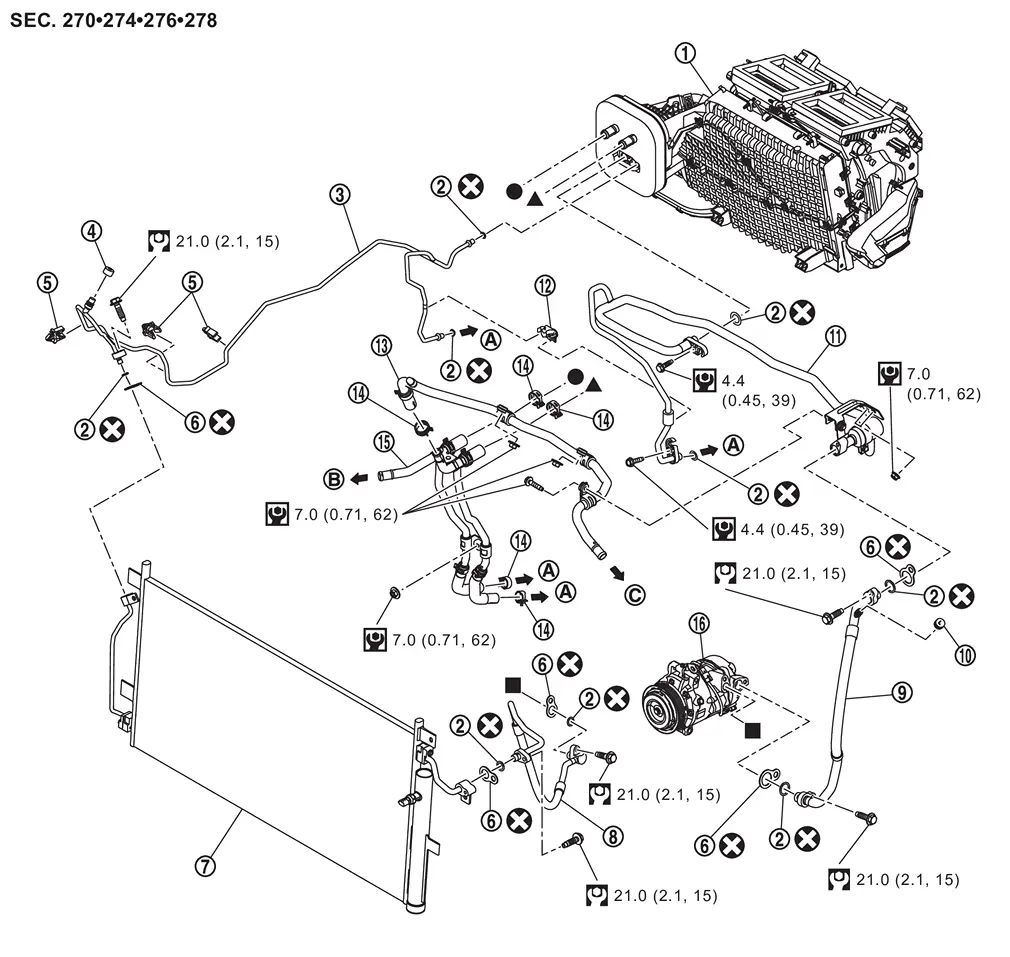

FRONT
 | Front heater & cooling unit assembly |  | O-ring |  | High-pressure pipe |
 | Valve cap (high-pressure side) |  | Tube clip 1 |  | Washer seal |
 | Condenser & liquid tank assembly |  | High-pressure flexible hose |  | Low-pressure flexible hose |
 | Valve cap (low-pressure side) |  | Low-pressure pipe |  | Tube clip 2 |
 | Front heater outlet pipe assembly |  | Clamp |  | Front heater pipe assembly |
 | A/C compressor | ||||
 | To rear cooler pipe assembly |  | To water hose 2 Refer to Exploded View. |  | To water hose 6 Refer to Exploded View. |
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||

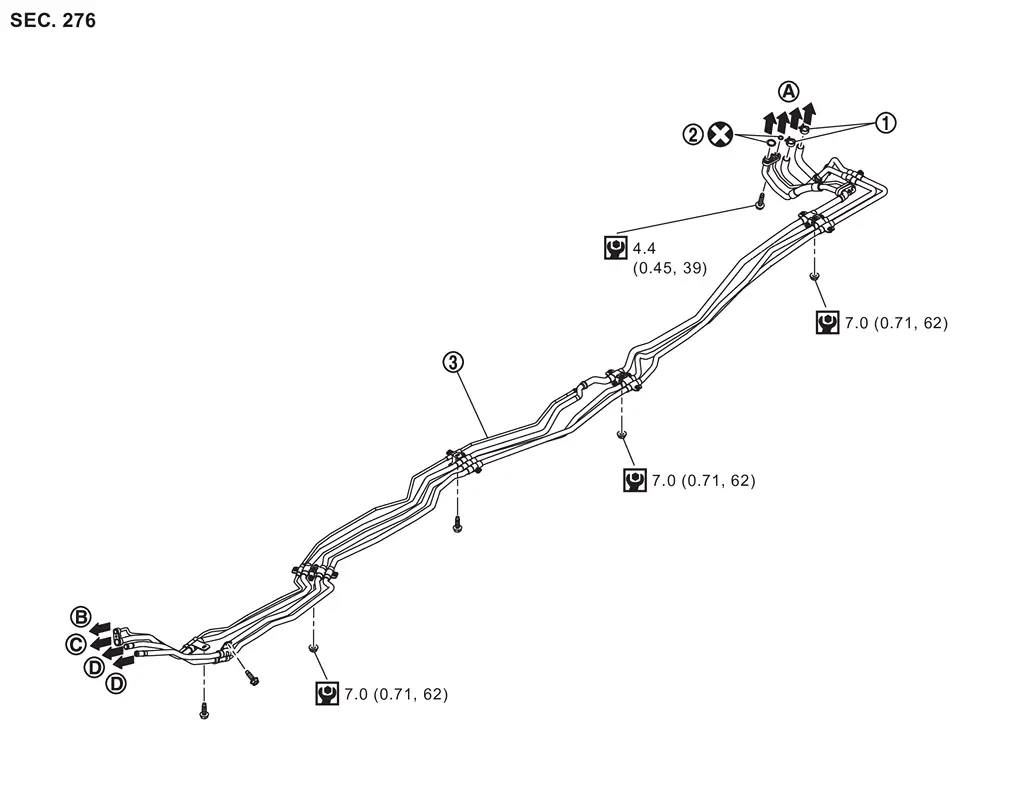

REAR
| Clamp | | O-ring | | Rear cooler pipe assembly |
| To rear A/C unit assembly Refer to Exploded View. | | To high-pressure pipe | | To low-pressure pipe |
 | To front heater pipe assembly | ||||
| : Always replace after every disassembly. | ||||
| : N·m (kg-m, in-lb) | ||||
