Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

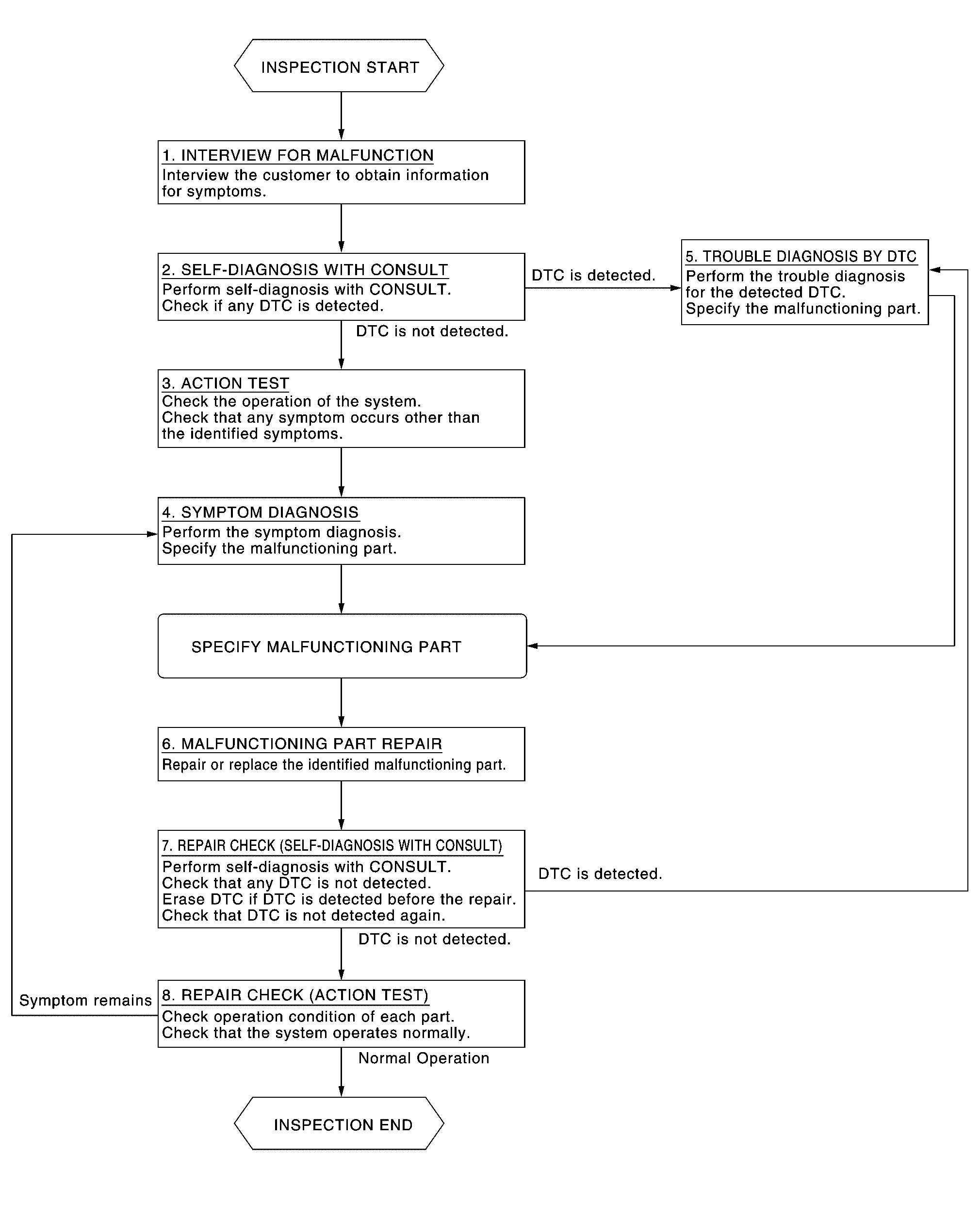

OVERALL SEQUENCE

DETAILED FLOW

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer about the concerns carefully and understand the symptoms fully.

NOTE:

The customers are not professionals. Never assume that “maybe the customer means···” or “maybe the customer mentioned this symptom”.

>>

GO TO 2.

SELF-DIAGNOSIS WITH CONSULT

1. Perform “All DTC Reading” with CONSULT.

2. Check if the DTC is detected on the self-diagnosis results of following.

   • “ICC/ADAS 2”

   • “LASER/RADAR”

   • “LANE CAMERA”

Is any DTC detected?

YES>>

Record or print self-diagnosis results and freeze frame data (FFD).GO TO 5.

NO>>

GO TO 3.

ACTION TEST

Perform Following system action test to check the operation status. Refer to Work Procedure.

Check if any other malfunctions occur.

>>

GO TO 4.

SYMPTOM DIAGNOSIS

Perform the applicable diagnosis according to the diagnosis chart by symptom. Refer to Symptom Table.

>>

GO TO 6.

TROUBLE DIAGNOSIS BY DTC

1. Erase self-diagnostic results.

2. Ignition switch OFF → ON.

   CAUTION:

   Be sure to wait of 10 seconds after turning ignition switch OFF or ON.

3. Check the DTC in the self-diagnosis results.

4. Perform trouble diagnosis for the detected DTC following.

   • “ICC/ADAS 2”(Without ProPILOT Assist 2.1): Refer to DTC Index.

   • “ICC/ADAS 2”(With ProPILOT Assist 2.1): Refer to DTC Index.

   • “LASER/RADAR”: Refer to DTC Index

   • “LANE CAMERA”: Refer to DTC Index.

NOTE:

If Network-DTC is detected, first diagnose the CAN communication system.

>>

GO TO 6.

MALFUNCTIONING PART REPAIR

Repair or replace the identified malfunctioning parts.

>>

GO TO 7.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

1. Erases self-diagnosis results.

2. Perform “All DTC Reading” again after repairing or replacing the specific items.

3. Check if any DTC is detected in self-diagnosis results of following.

   • “ICC/ADAS 2”

   • “LASER/RADAR”

   • “LANE CAMERA”

Is any DTC detected?

YES>>

GO TO 5.

NO>>

GO TO 8.

REPAIR CHECK (ACTION TEST)

Perform the action test. Check that the malfunction symptom is solved or no other symptoms occur. Refer to Work Procedure.

Is there a malfunction symptom?

YES>>

GO TO 4.

NO>>

INSPECTION END
