Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

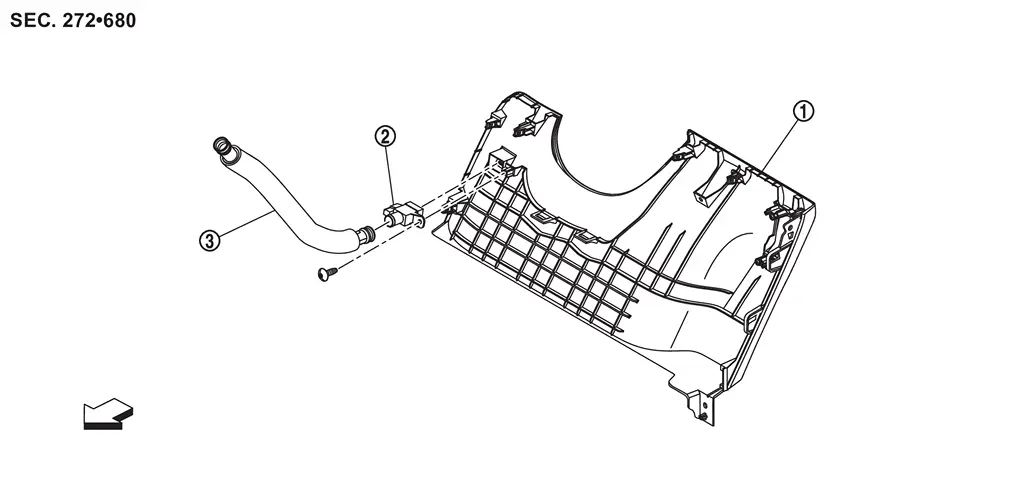

Front
 | Instrument lower panel LH |  | Front in-vehicle sensor |  | Aspirator duct |
 | : Vehicle front | ||||
Rear
Refer to Exploded View.
