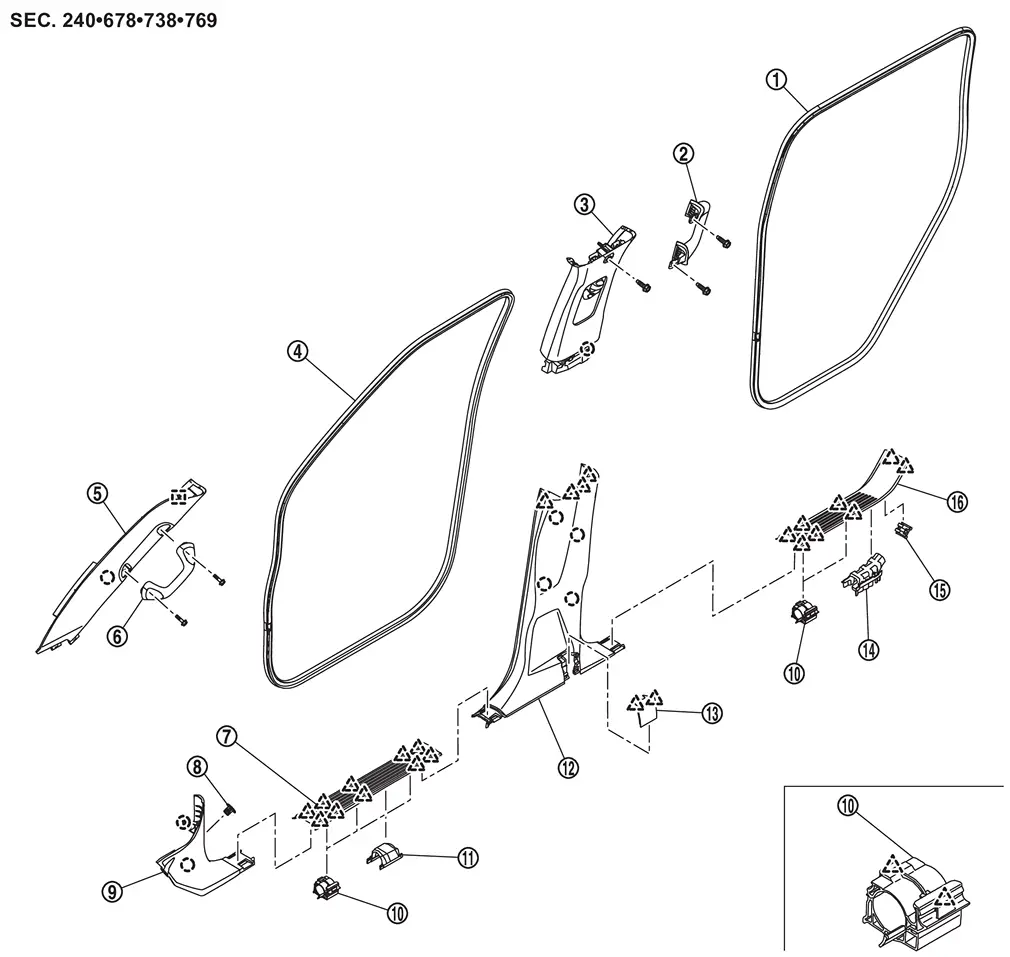

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear body side welt |  | Assist grip |  | Center pillar upper garnish |
 | Front body side welt |  | Front pillar garnish |  | Assist grip |
 | Front kicking plate |  | Dash trim clip |  | Dash side finisher |
 | Harness protector |  | Front side bracket |  | Center pillar lower garnish |
 | Center pillar lower escutcheon |  | Rear side bracket |  | Trim metal clip |
 | Rear kicking plate | ||||
 | : Clip | ||||
 | : Pawl | ||||
 | : Metal clip | ||||
Body Side Trim
...
