Nissan Armada 2025-2026 Service and Repair Manual: Sandpaper Grits

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair — Fundamentals / Service Information / Sandpaper Grits

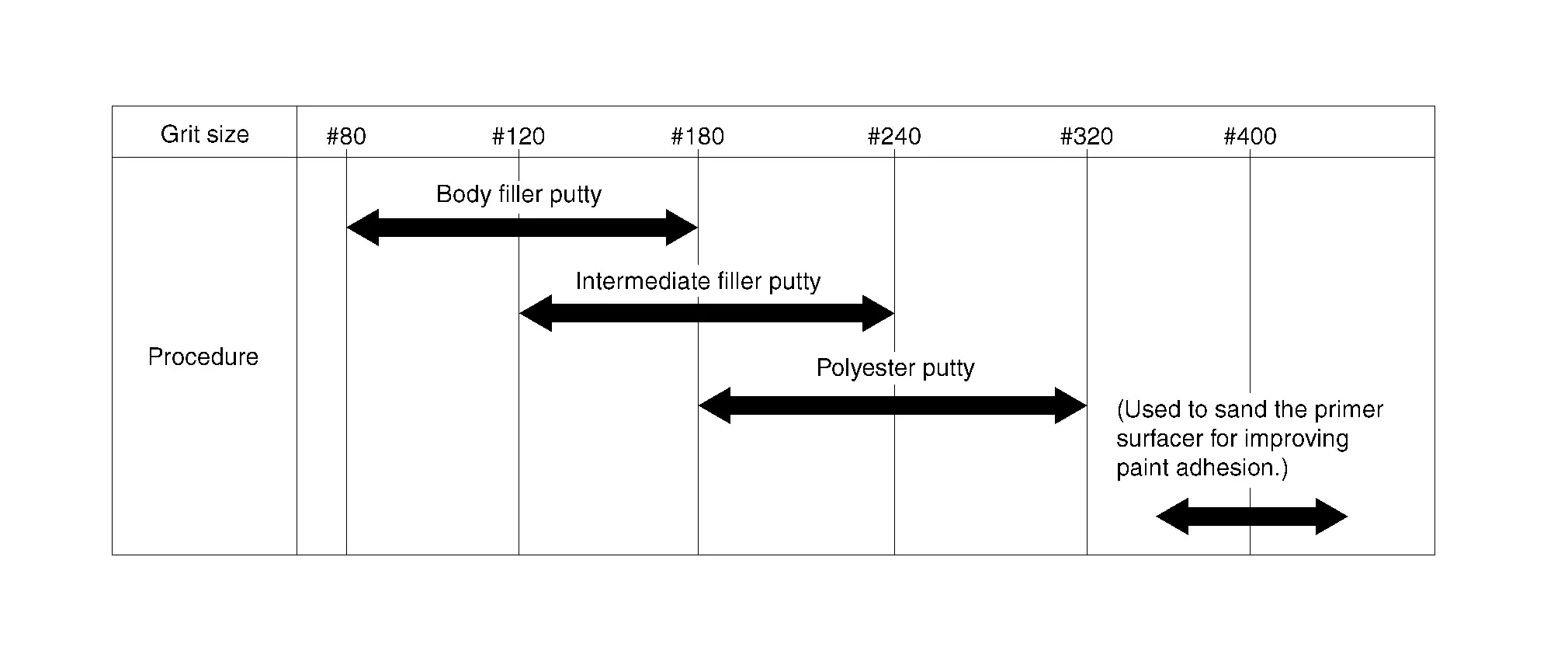

Select a sandpaper with a grit, appropriate to the putty used. Sanding marks that occur due to sanding are removed with further sanding.

SWITCHING TO A SANDPAPER OF A DIFFERENT GRIT

Sanding marks that occur during sanding are sanded with a sandpaper of the next finer grit. When doing this, do not sand using a sandpaper of a grit two grades or more finer than the previously applied sandpaper.

NG	: #80 ⇒ #180 ⇒ #320 ⇒ #400

*: Note that, if sanding with a sandpaper of a grit two grades or more finer than the last one used, removing deep sanding marks that occur during sanding with a coarser sandpaper, as well as removing any remaining deep sanding marks may take longer.

OK	: #120 ⇒ #180 ⇒ #240 ⇒ #320 ⇒ #400

Grinding the Filled Area

Grind the filler when it is half-dried. Half-dried filler means the condition where the surface, if ground lightly with a surform, will produce continuous linear chips. Grinding with the surform will ...

Grinding Power of Air Sander

The diameter (shown in the figure) of a circle traced by a part of the dual action sander and the orbital sander is called an orbit diameter. The larger the area shown with diagonal lines, the greater ...
