Nissan Armada 2025-2026 Service and Repair Manual: Front Pillar

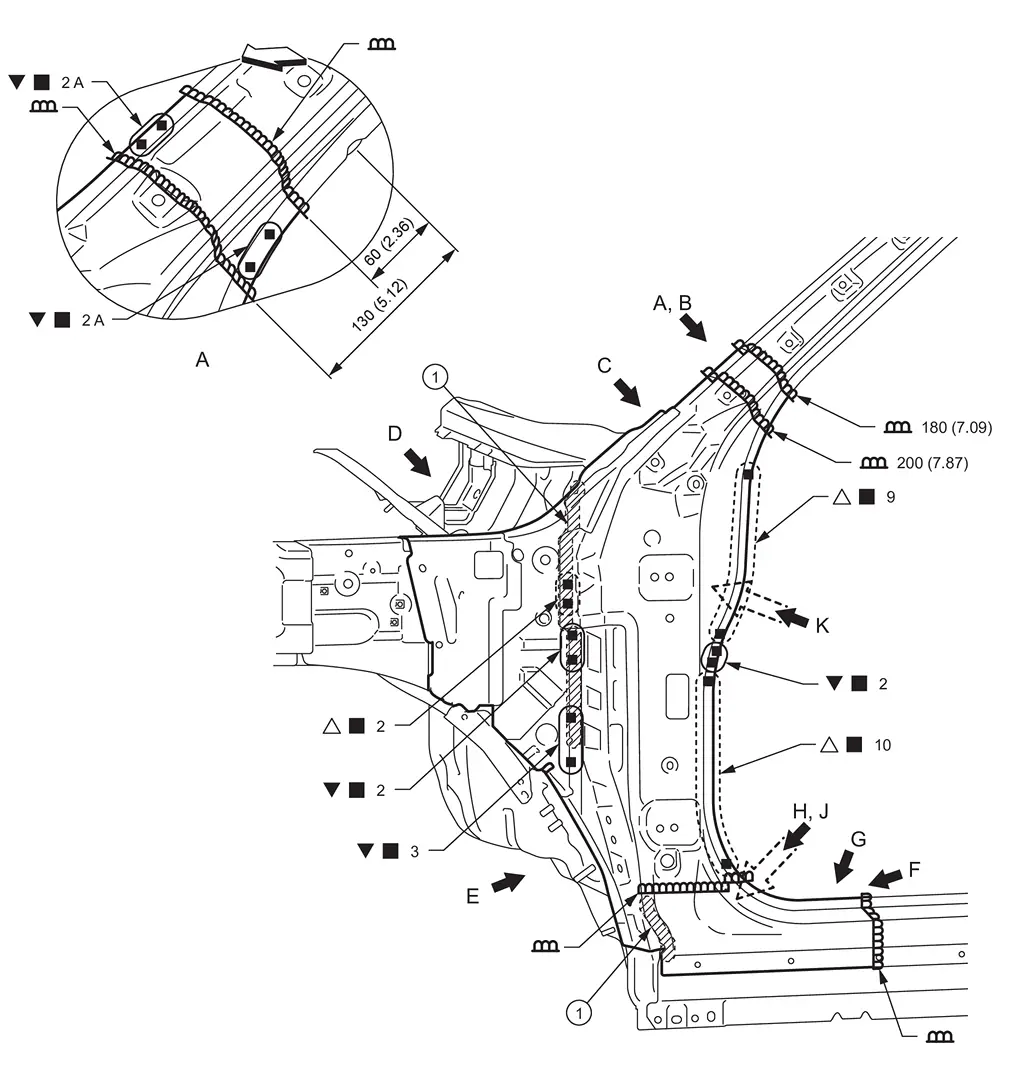

WARNING:
Work after hoodledge reinforcement and roof are removed.
 | Body sealing |  | Urethane foam | ||
| Unit: mm (in) | |||||
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Side body assembly | • | Side dash | • | Upper inner front pillar |
| • | Lower side dash assembly | ||||
: Vehicle front
| Body sealing | ||||
| Unit: mm (in) | |||||
 : N•m (kg-m, ft-lb) | |||||

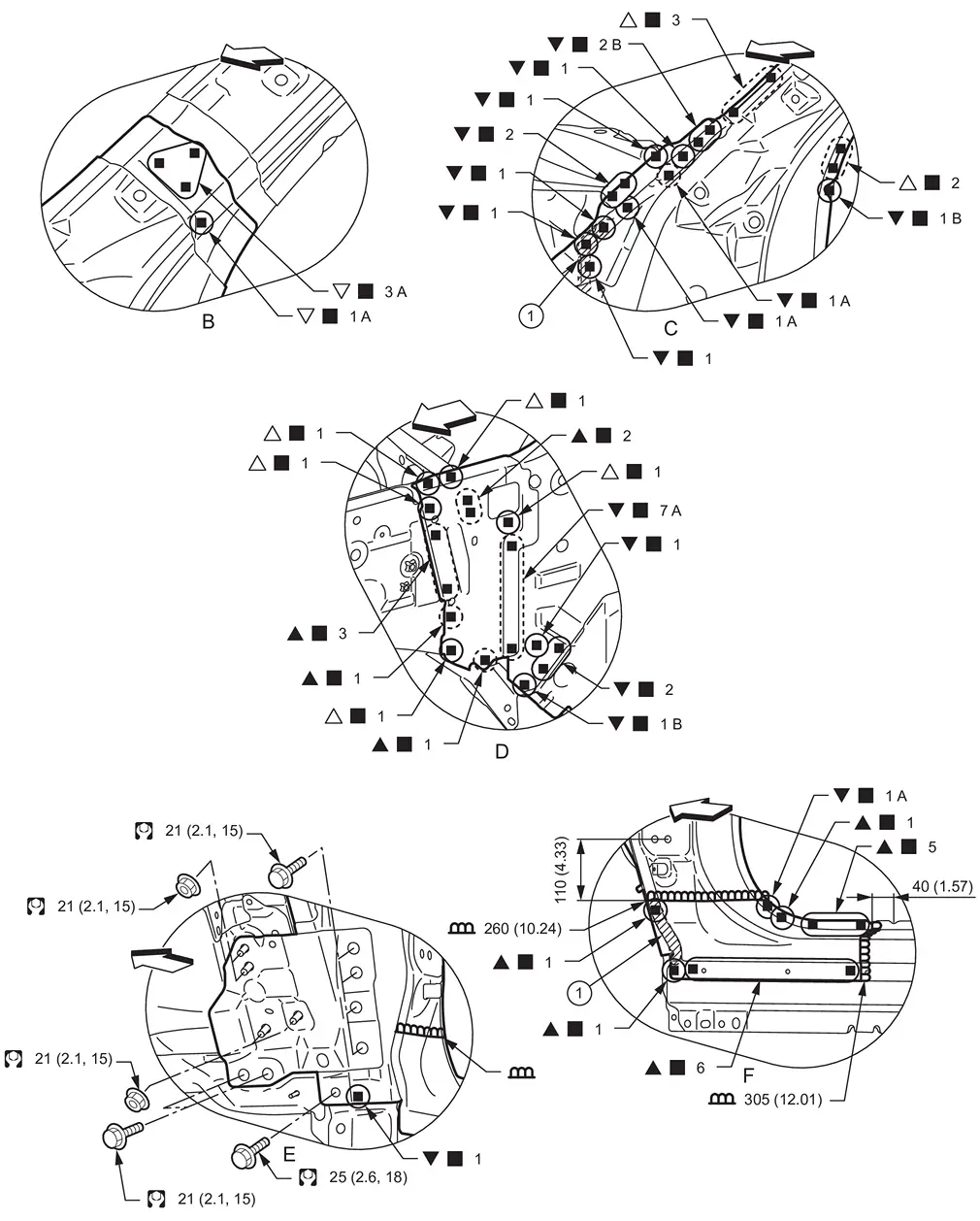

: Drill φ12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).View B: Before installing outer front side body
View E: Before installing outer front side body and front pillar brace
| Urethane foam | ||||
| Unit: mm (in) | |||||
 : N•m (kg-m, in-lb) | |||||

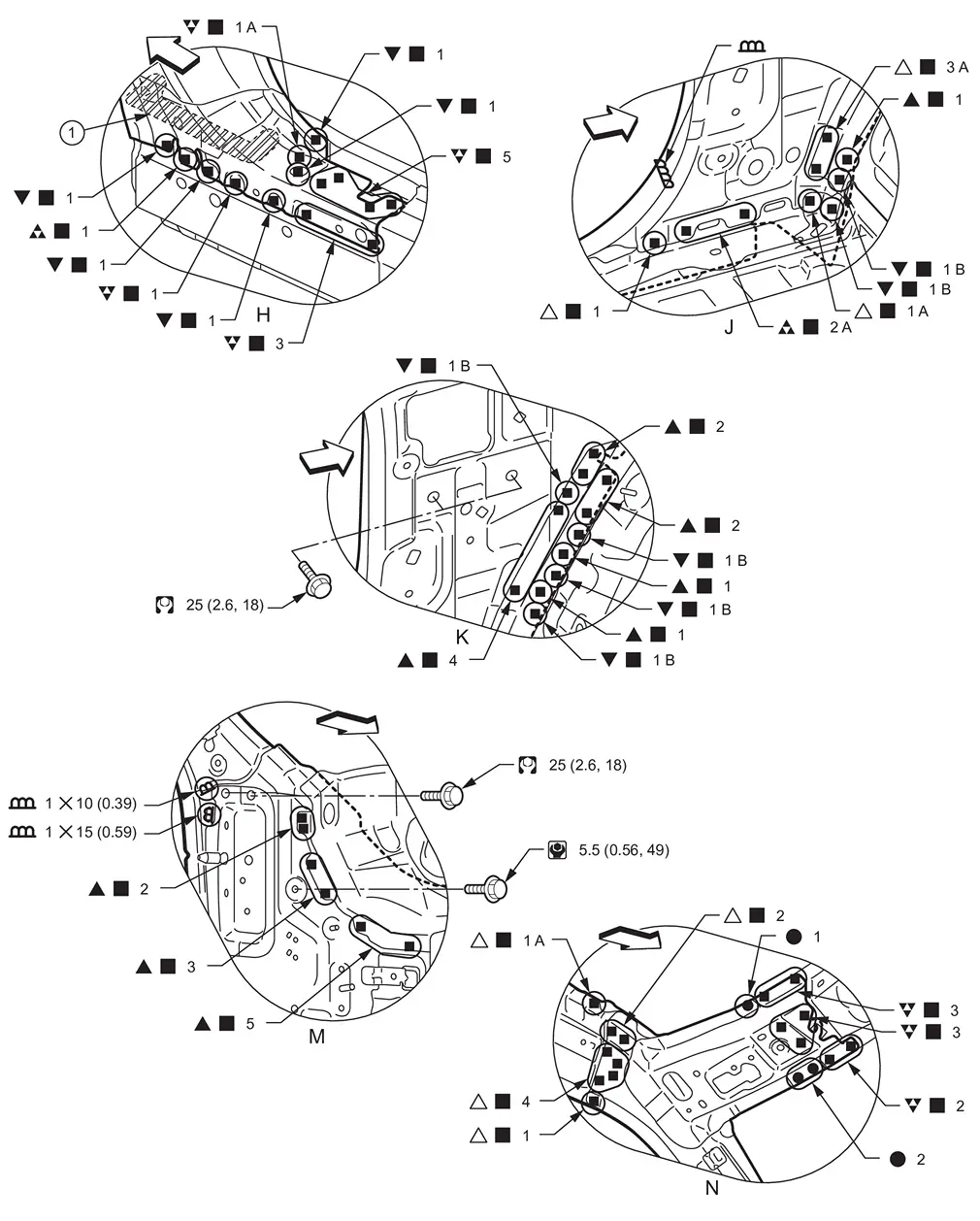

: Drill φ10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel).
: Drill φ11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel).View H: Before installing outer front side body

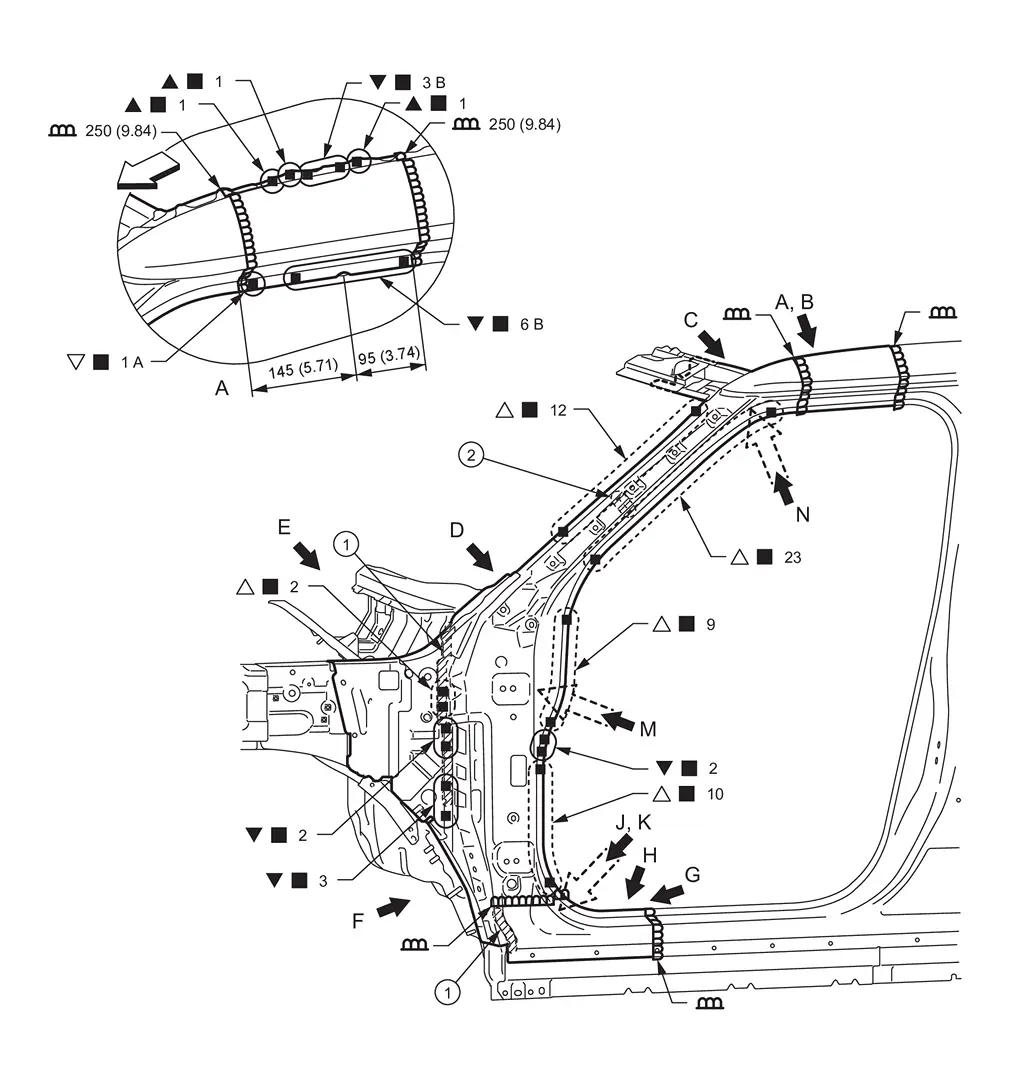

PARTIAL REPLACEMENT
Work after hoodledge reinforcement is removed.
| Body sealing | ||||
| Unit: mm (in) | |||||
: Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Side body assembly | • | Side dash | • | Lower side dash assembly |
| Body sealing | ||||
| Unit: mm (in) | |||||
: N•m (kg-m, ft-lb) | |||||

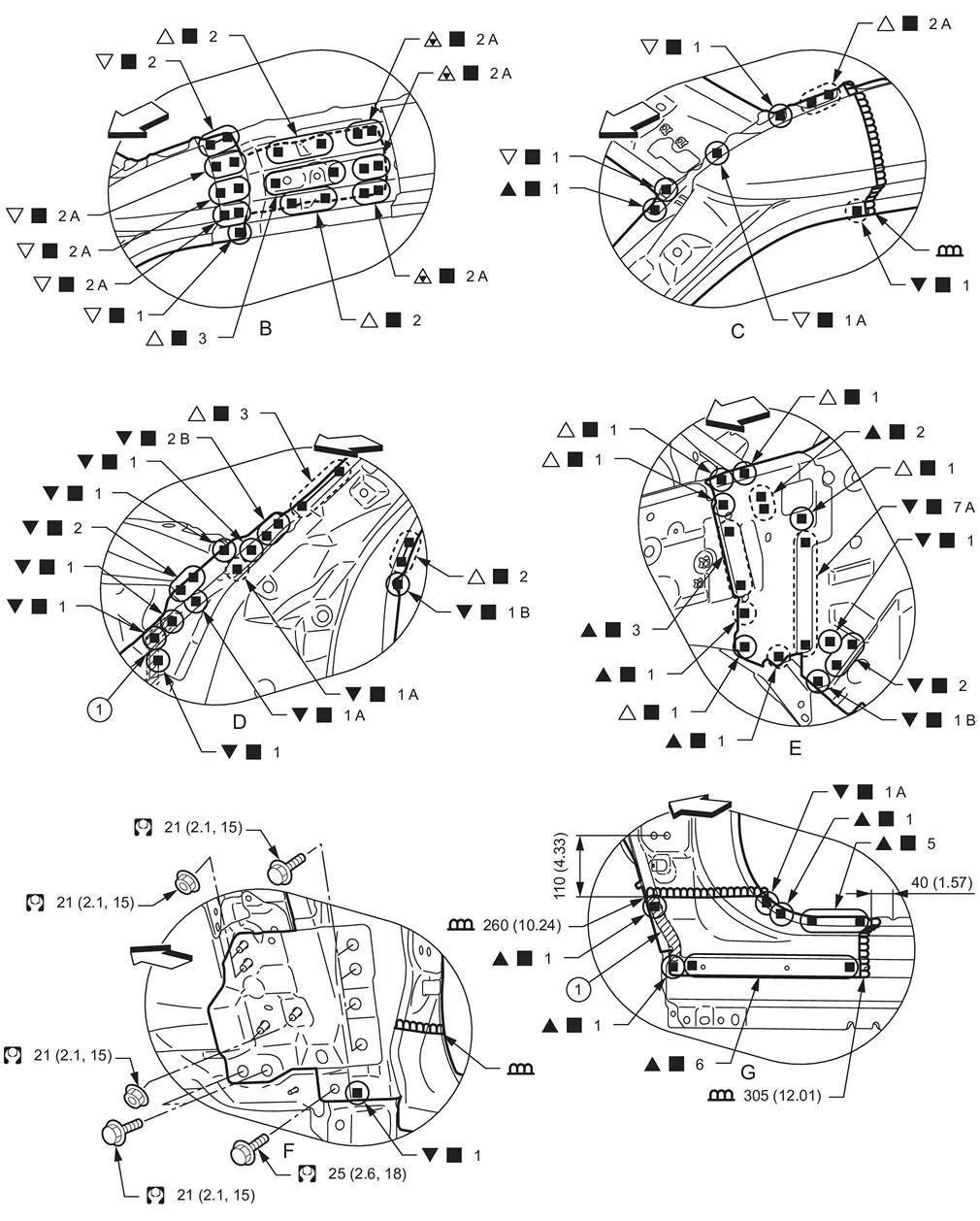

View B: Before installing outer front side body
View D: Before installing outer front side body and front pillar brace
| Body sealing | ||||
| Unit: mm (in) | |||||
: N•m (kg-m, in-lb) | |||||

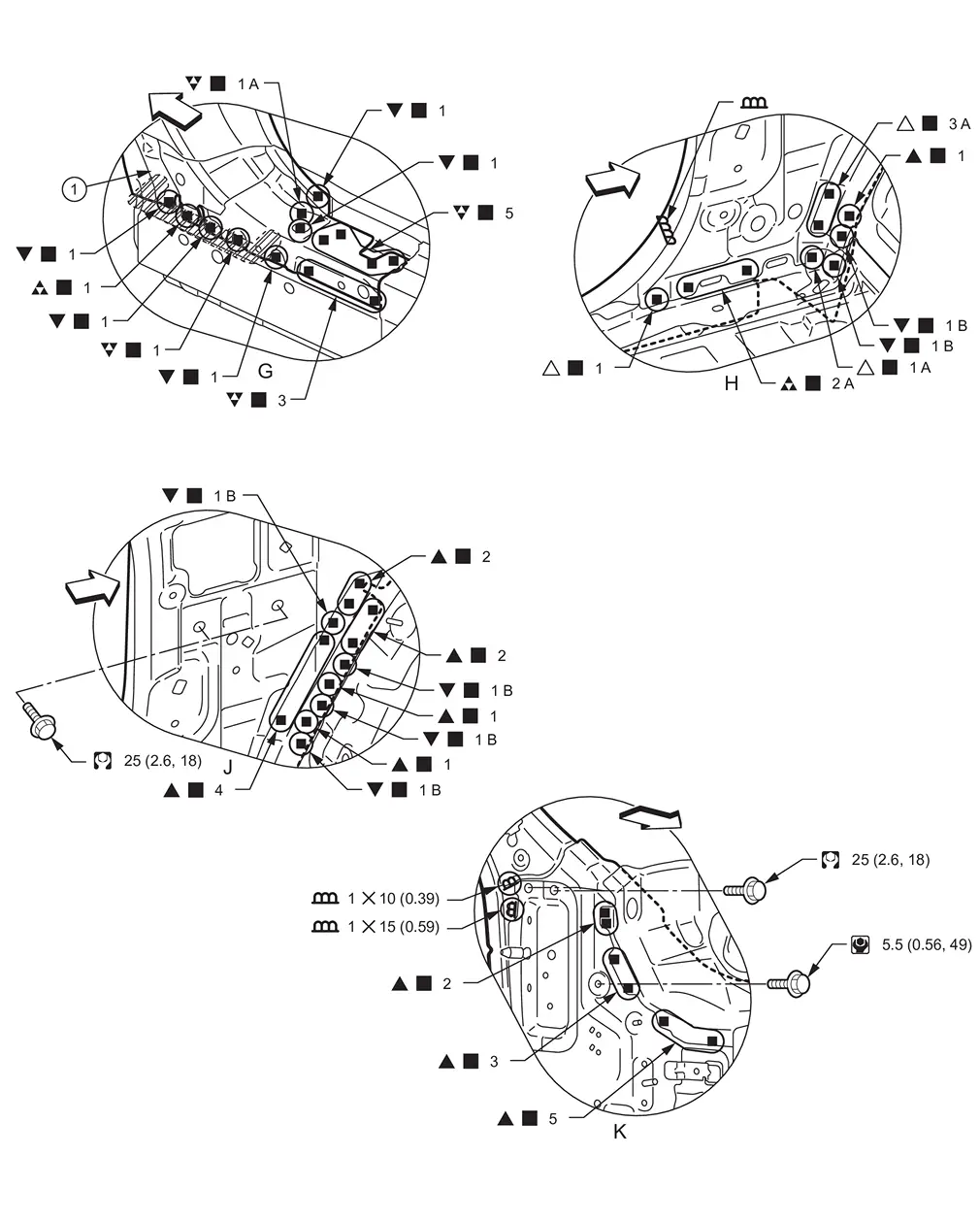

View G: Before installing outer front side body
Hoodledge
WARNING:
Work after side radiator core support is removed.
Urethane foam Body sealing : Vehicle front
: Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).
: Weld the ...
Upper Dash
WARNING:
Work after radiator core main support, side radiator core support, and hoodledge are removed.
: Vehicle front
: Weld the parts onto the back of the component part. Replacement part • Up ...
