Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

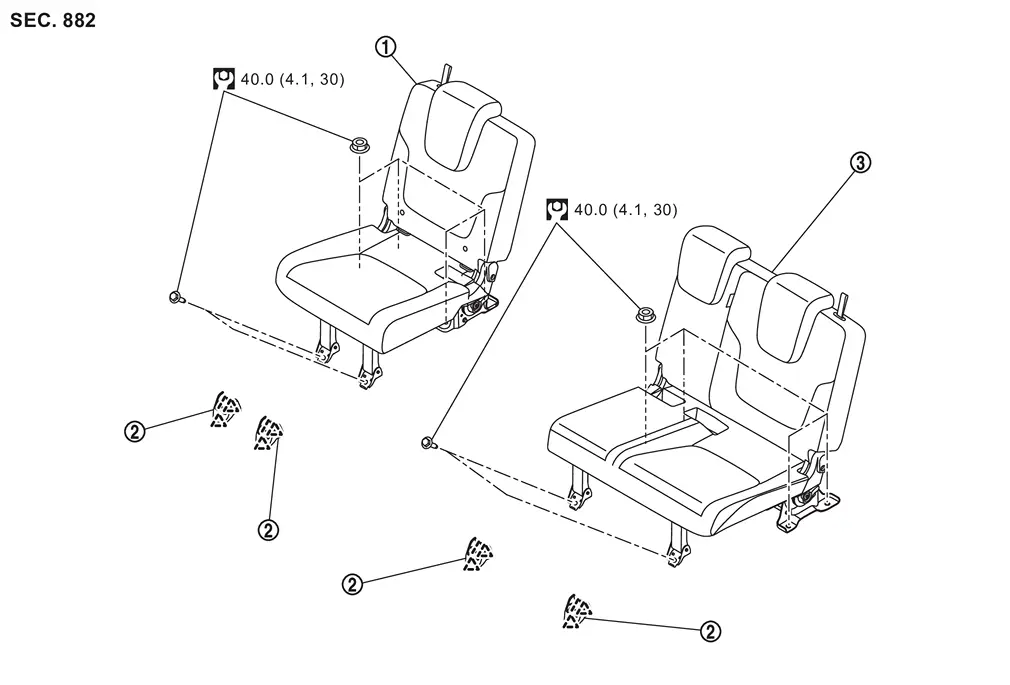

REMOVAL
 | Third seat assembly (RH seat) |  | Seat leg cover |  | Third seat assembly (LH seat) |
 | : Pawl | ||||
 | : N·m (kg-m, ft-lb) | ||||
DISASSEMBLY
Manual Seat

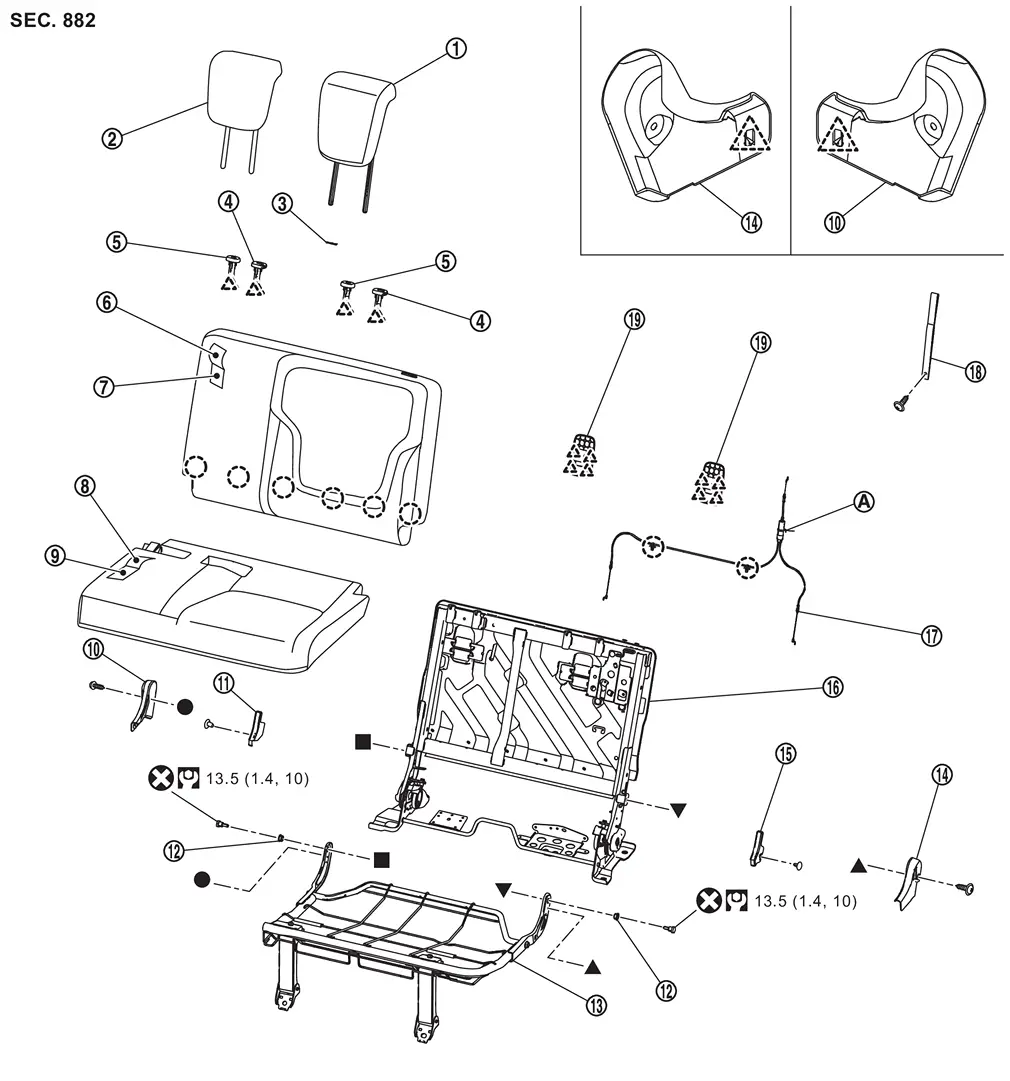

LH SEAT
| Outer headrest | | Center headrest | | Snap pin |
 | Headrest holder (lock) |  | Headrest holder (free) |  | Seatback trim |
 | Seatback pad |  | Seat cushion trim |  | Seat cushion pad |
 | Hinge cover RH |  | Arm cover RH |  | Bush |
 | Seat cushion frame assembly |  | Hinge cover LH |  | Arm cover LH |
 | Seatback frame assembly |  | Reclining cable |  | Reclining strap |
 | Tether anchor finisher | ||||
 | Cable tie | ||||
 | : Clip | ||||
| : Pawl | ||||
 | : Always replace after every disassembly. | ||||
| : N·m (kg-m, ft-lb) | ||||
 ,  ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||

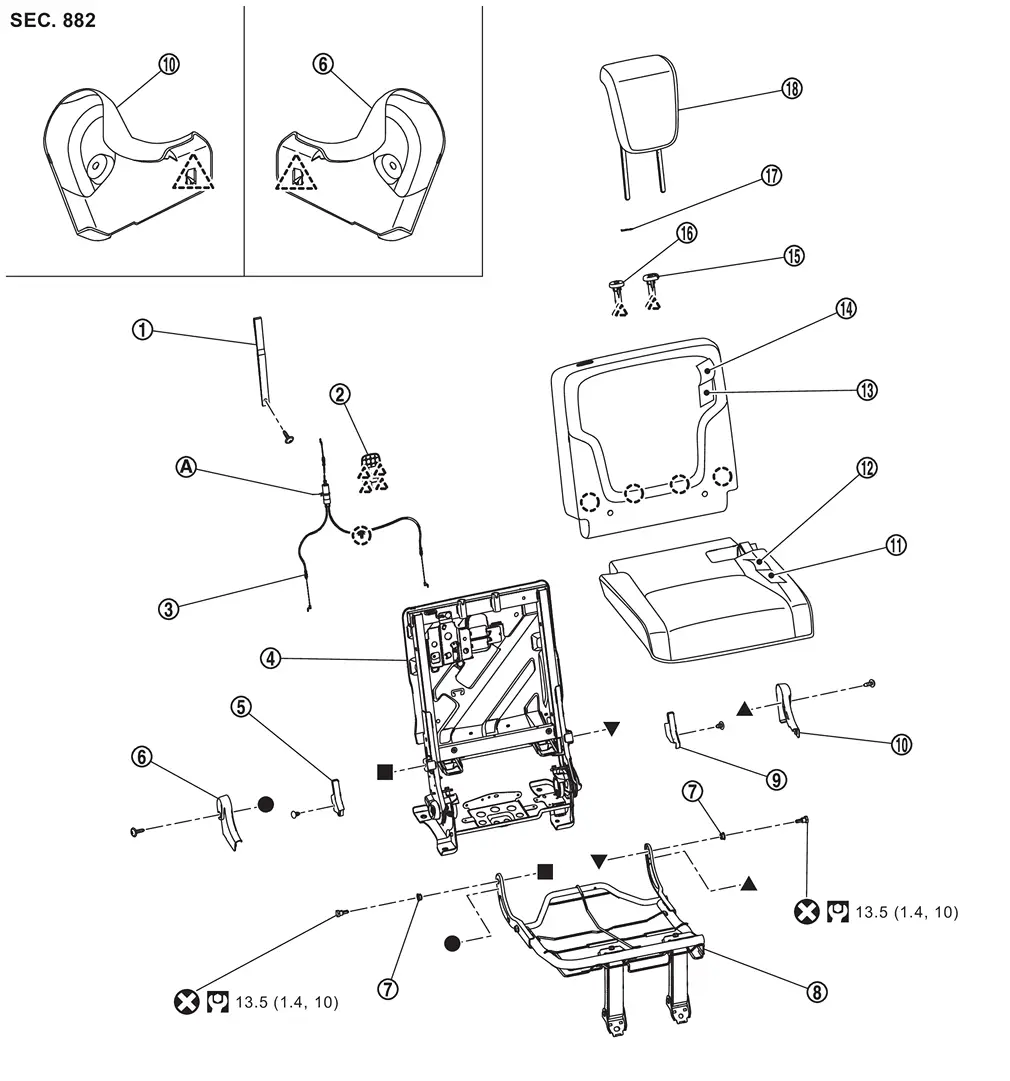

RH SEAT
| Reclining strap | | Tether anchor finisher | | Reclining cable |
| Seatback frame assembly | | Arm cover RH | | Hinge cover RH |
| Bush | | Seat cushion frame assembly | | Arm cover LH |
| Hinge cover LH | | Seat cushion pad | | Seat cushion trim |
| Seatback pad | | Seatback trim | | Headrest holder (lock) |
| Headrest holder (free) | | Snap pin | | Outer headrest |
| : Clip | ||||
| : Pawl | ||||
| : Always replace after every disassembly. | ||||
| : N·m (kg-m, ft-lb) | ||||
| , , , : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Power Seat

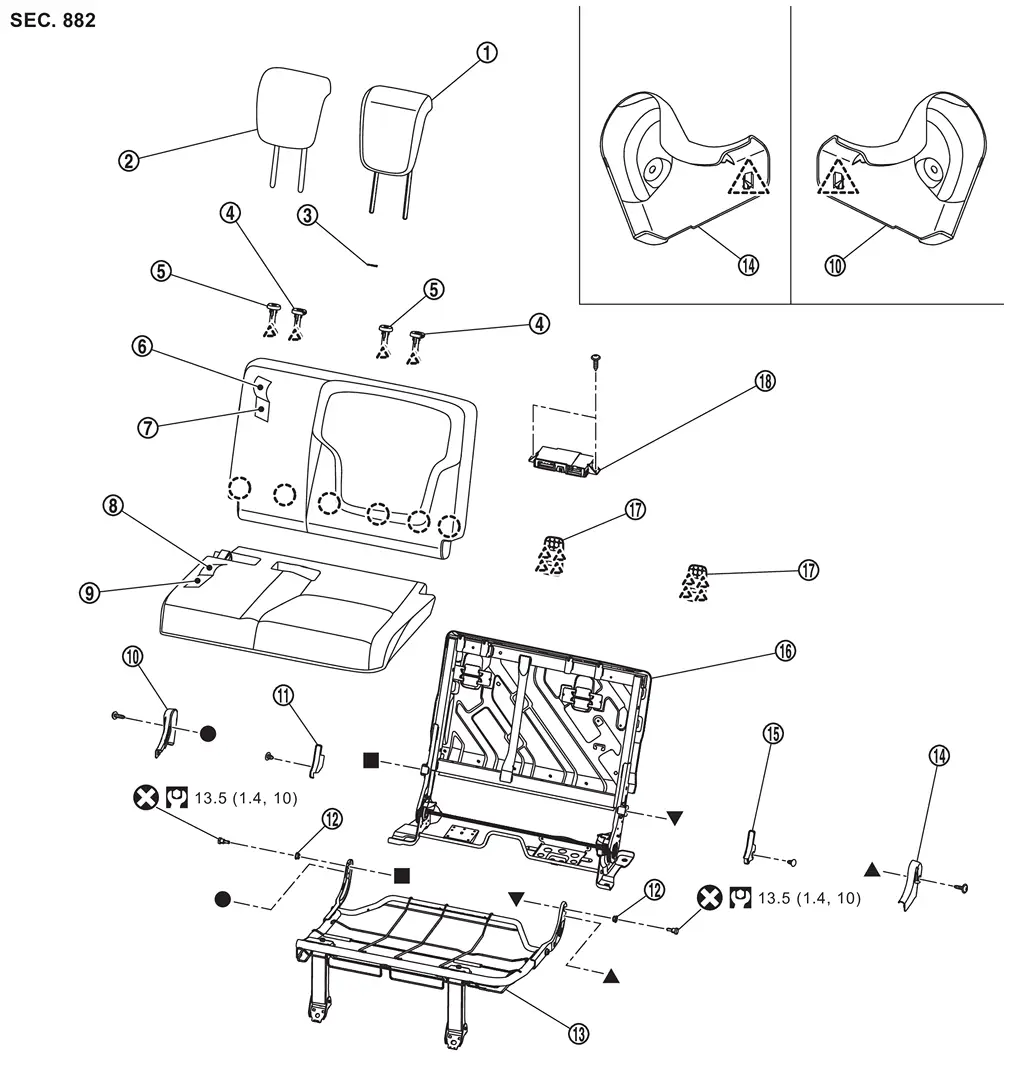

LH SEAT
| Outer headrest | | Center headrest | | Snap pin |
| Headrest holder (lock) | | Headrest holder (free) | | Seatback trim |
| Seatback pad | | Seat cushion trim | | Seat cushion pad |
| Hinge cover RH | | Arm cover RH | | Bush |
| Seat cushion frame assembly | | Hinge cover LH | | Arm cover LH |
| Seatback frame assembly | | Tether anchor finisher | | Third seat control unit |
| : Clip | ||||
| : Pawl | ||||
| : Always replace after every disassembly. | ||||
| : N·m (kg-m, ft-lb) | ||||
| , , , : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||

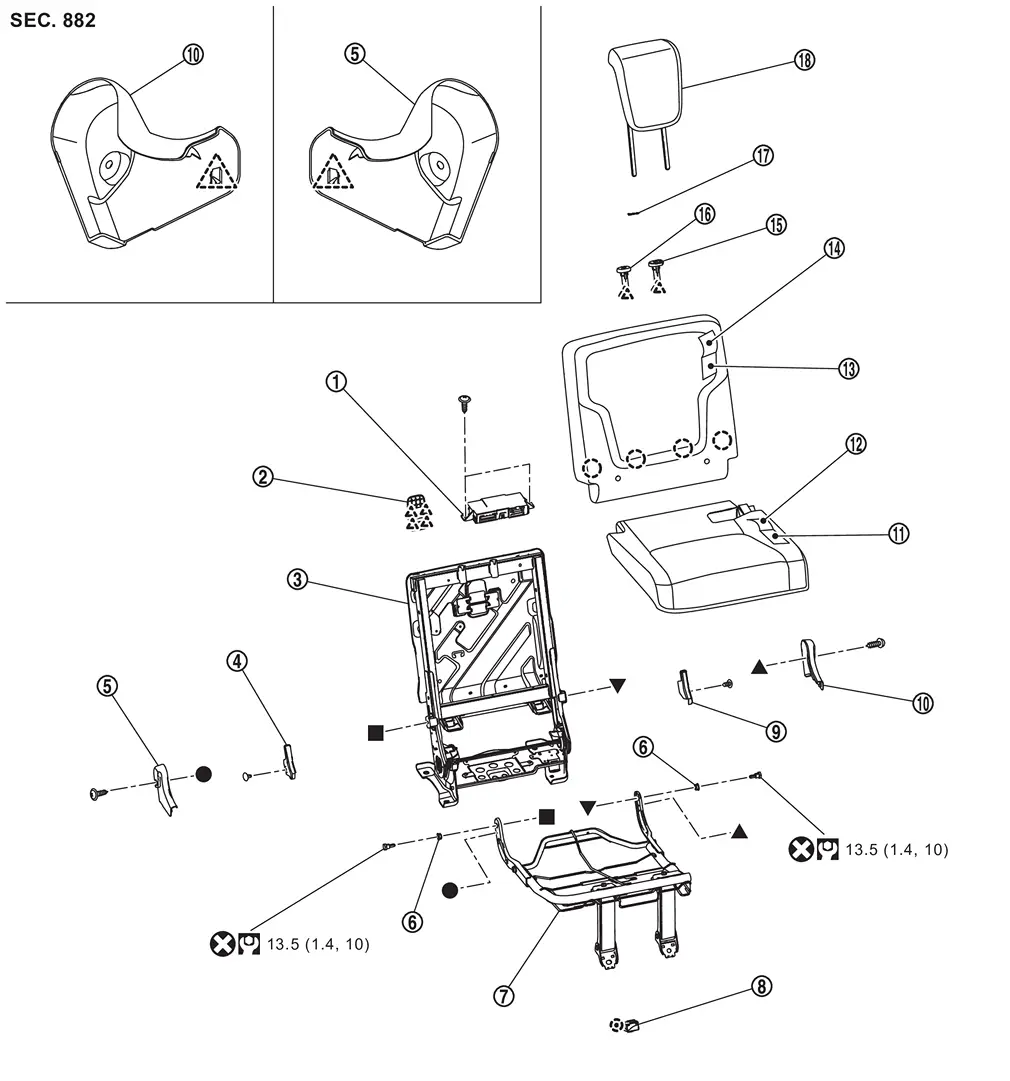

RH SEAT
| Third seat control unit | | Tether anchor finisher | | Seatback frame assembly |
| Arm cover RH | | Hinge cover RH | | Bush |
| Seat cushion frame assembly | | Seat buzzer | | Arm cover LH |
| Hinge cover LH | | Seat cushion pad | | Seat cushion trim |
| Seatback pad | | Seatback trim | | Headrest holder (lock) |
| Headrest holder (free) | | Snap pin | | Outer headrest |
| : Clip | ||||
| : Pawl | ||||
| : Always replace after every disassembly. | ||||
| : N·m (kg-m, ft-lb) | ||||
| , , , : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
Third Seat
...
Removal and Installation
CAUTION:
Always work with 2 workers, because it is heavy weight.
REMOVAL
Disengage fixing pawls, and then remove seat leg covers.
: Pawl
Remove front side mounting bolts of third seat assembly. ...
