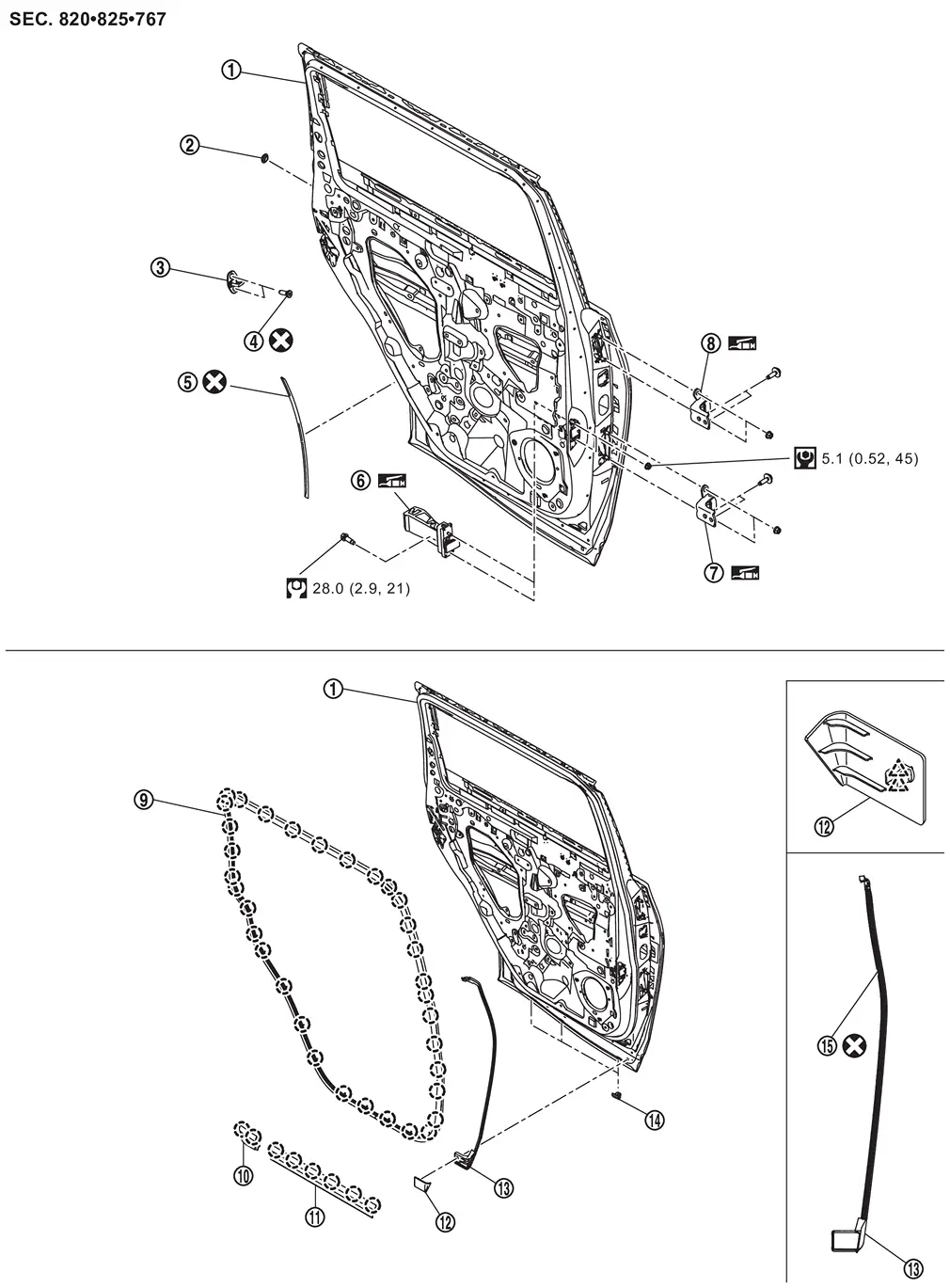

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear door panel |  | Grommet |  | Rear door striker |
 | TORX bolt |  | Rear door protector |  | Rear door check link |
 | Rear door hinge (lower) |  | Rear door hinge (upper) |  | Rear door weather-strip |
 | Rear door parting seal lower 2 |  | Rear door parting seal lower 1 |  | Rear door parting seal front clip |
 | Rear door parting seal front |  | Drain hole cover |  | Double-sided tape [t: 0.8 mm (0.031 in)] |
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Body grease | ||||
Rear Door
...
