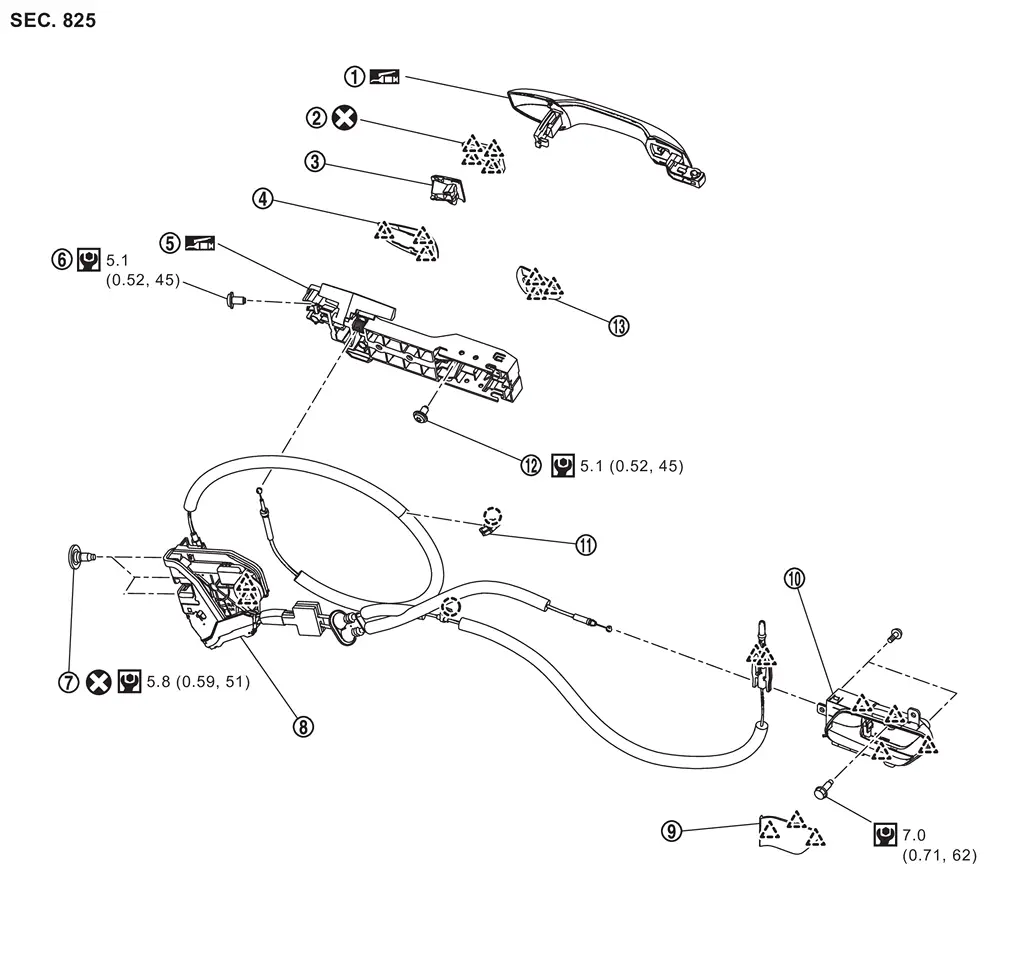

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear door outside handle |  | Escutcheon cover |  | Escutcheon base |
 | Rear gasket |  | Rear door outside handle bracket |  | TORX bolt |
 | TORX bolt |  | Rear door lock assembly |  | Inside handle cap |
 | Rear door inside handle |  | Rear door outside handle cable clip |  | TORX bolt |
 | Front gasket | ||||
 | : Clip | ||||
 | : Pawl | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Body grease | ||||
Rear Door Lock
...
Other materials:
Exploded View
