Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

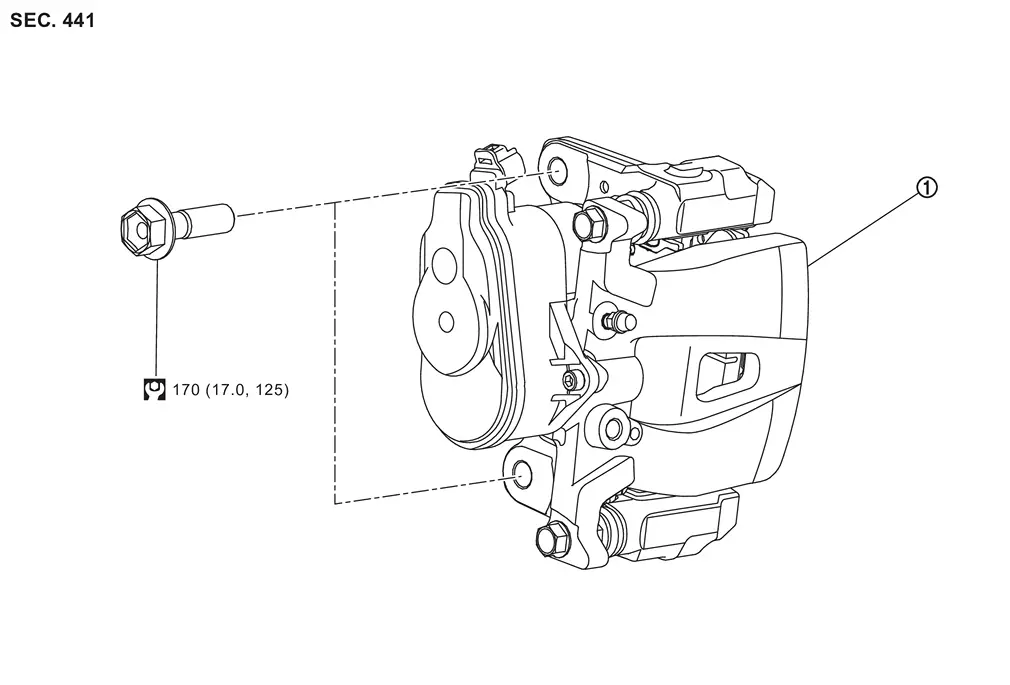

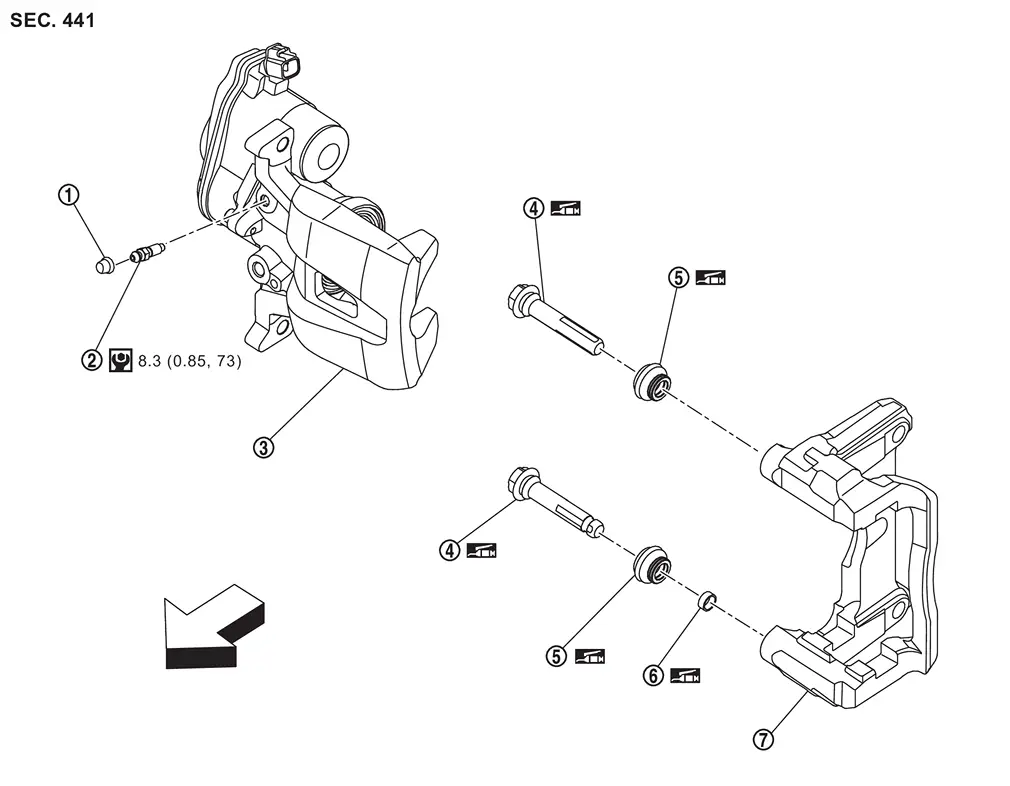

Brake Caliper Assembly

...

Removal and Installation

WARNING: REMOVAL WARNING: CAUTION: Release the parking brake. Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation. Remove parking brake actuator harness and rear wheel sensor. Hang par ...

Other materials:

Grinding Power of Air Sander
The diameter (shown in the figure) of a circle traced by a part of the dual action sander and the orbital sander is called an orbit diameter. The larger the area shown with diagonal lines, the greater the grinding power is. When surface accuracy is required, a sander with a smaller orbit diameter s ...

Exploded View
Hood assembly Hood hinge RH Stud ball Hood stay RH Hood seal Hood bumper rubber 1 Hood bumper rubber 2 Radiator core seal Hood insulator Hood stay LH Hood hinge LH : Clip : Pawl : Body grease , : Indicates that the part is connected at points with same symbol in actual vehicle. ...

Wheel Alignment
WITHOUT DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION Item Standard Camber Degree minute (Decimal degree) Minimum −0°50′ (−0.83°) Nominal −0°05′ (−0.08°) Maximum 0°40′ (0.66°) Left and right difference*1 –0° 33′ (–0.55°) - 0° 33′ (0.55°) Caster Deg ...
