Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

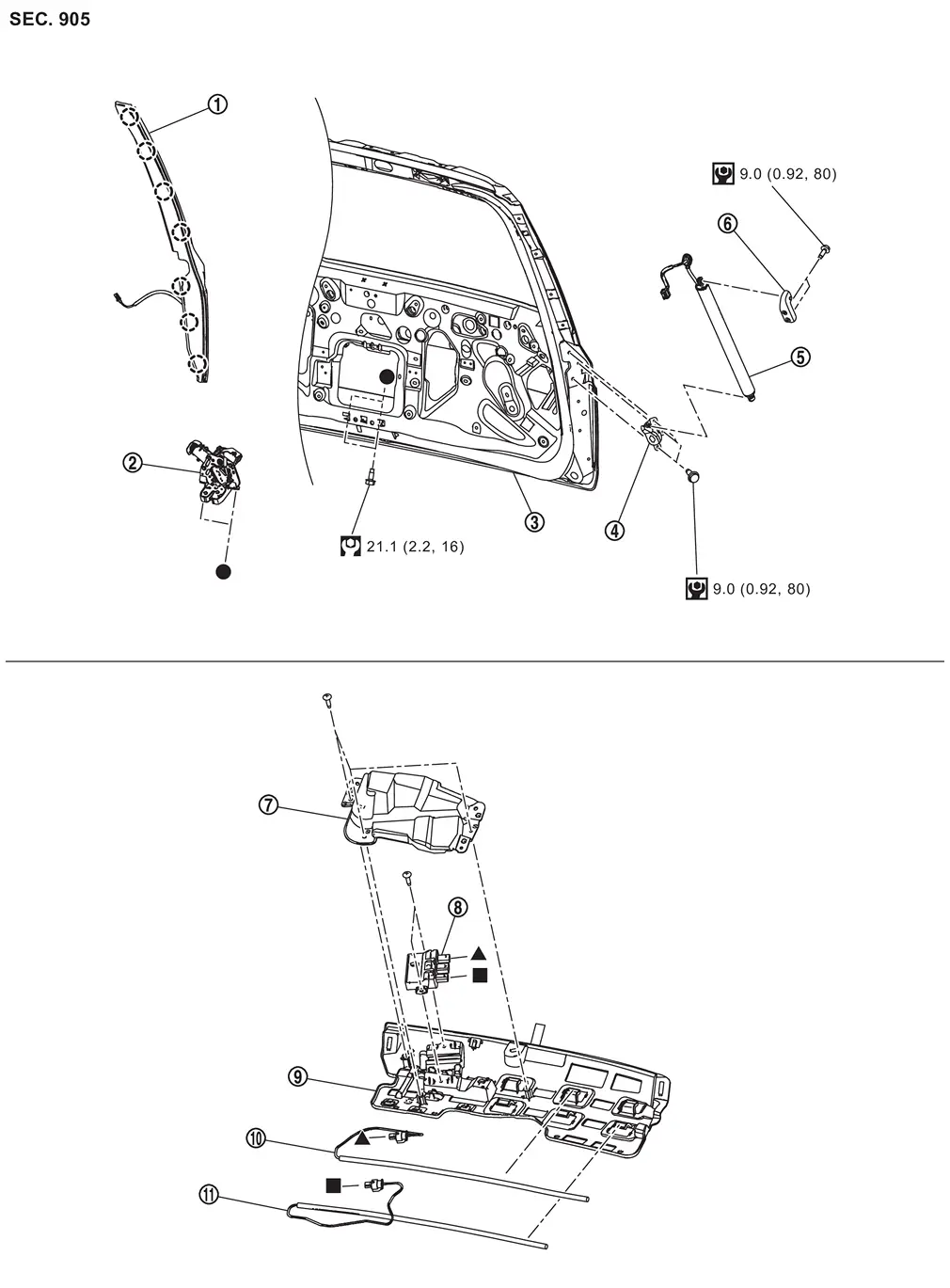

 | Back door touch sensor*1 |  | Back door lock & closure assembly |  | Back door panel |
 | Back door stay lower bracket |  | Spindle unit*1 |  | Spindle unit bracket upper*1 |
 | Bracket cover*2 |  | Hands free control unit*2 |  | Hands free sensor bracket*2 |
 | Hands free sensor upper*2 |  | Hands free sensor lower*2 | ||
 | : Clip | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 ,  ,  : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
*1: With automatic back door models
*2: With hands free sensor models
Back Door Lock
...
Back Door Lock
...
