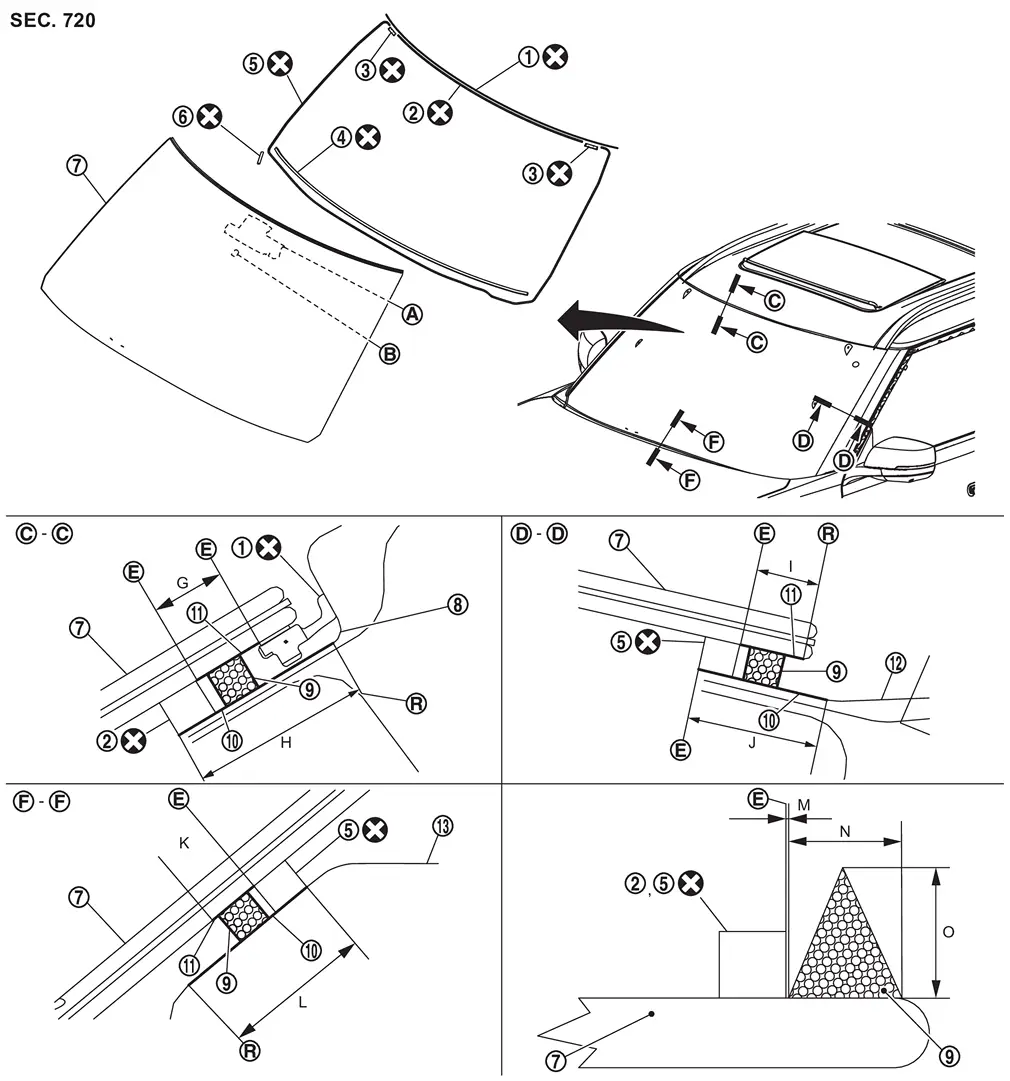

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Windshield molding |  | Dam sealant rubber upper |  | Clip |
 | Insulator |  | Dam sealant rubber |  | Spacer |
 | Windshield glass |  | Roof panel |  | Adhesive |
 | Painted surface primer |  | Glass primer |  | Body side outer panel |
 | Dash panel | ||||
 | : Bracket | ||||
 | : Inside mirror base | ||||
 | : Edge | ||||
 | : R end | ||||
 | : Always replace after every disassembly. | ||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||||
|---|---|---|---|---|---|---|---|
| M | N | O | |||||
| Windshield glass - Roof panel |  - | G | Between windshield molding and dam sealant rubber upper | 0 + 1.0, - 0.0 (0.0 + 0.04, - 0.0) | 7.0 + 2.0, - 0.0 (0.28 + 0.08, - 0.0) | 12.0 + 2.0, - 0.0 (0.47 + 0.08, - 0.0) | |
| H | From R-end, more than 20.0 (0.79) | ||||||
| Windshield glass - Body side outer panel |  - | I | Between R-end and dam sealant rubber | ||||
| J | From body side panel edge, more than 15.4 (0.61) | ||||||
| Windshield glass - Dash panel |  - | K | From dam sealant rubber, more than 11.0 (0.43) | ||||
| L | From dash panel R-end, more than 19.0 (0.75) | ||||||
Windshield Glass
...
Removal and Installation
CAUTION:
There are some cautions for the clips of "Reuse" removal/install procedure. If you want reuse windshield glass, you should be read each caution at first.
Never damage painted surface and surr ...
